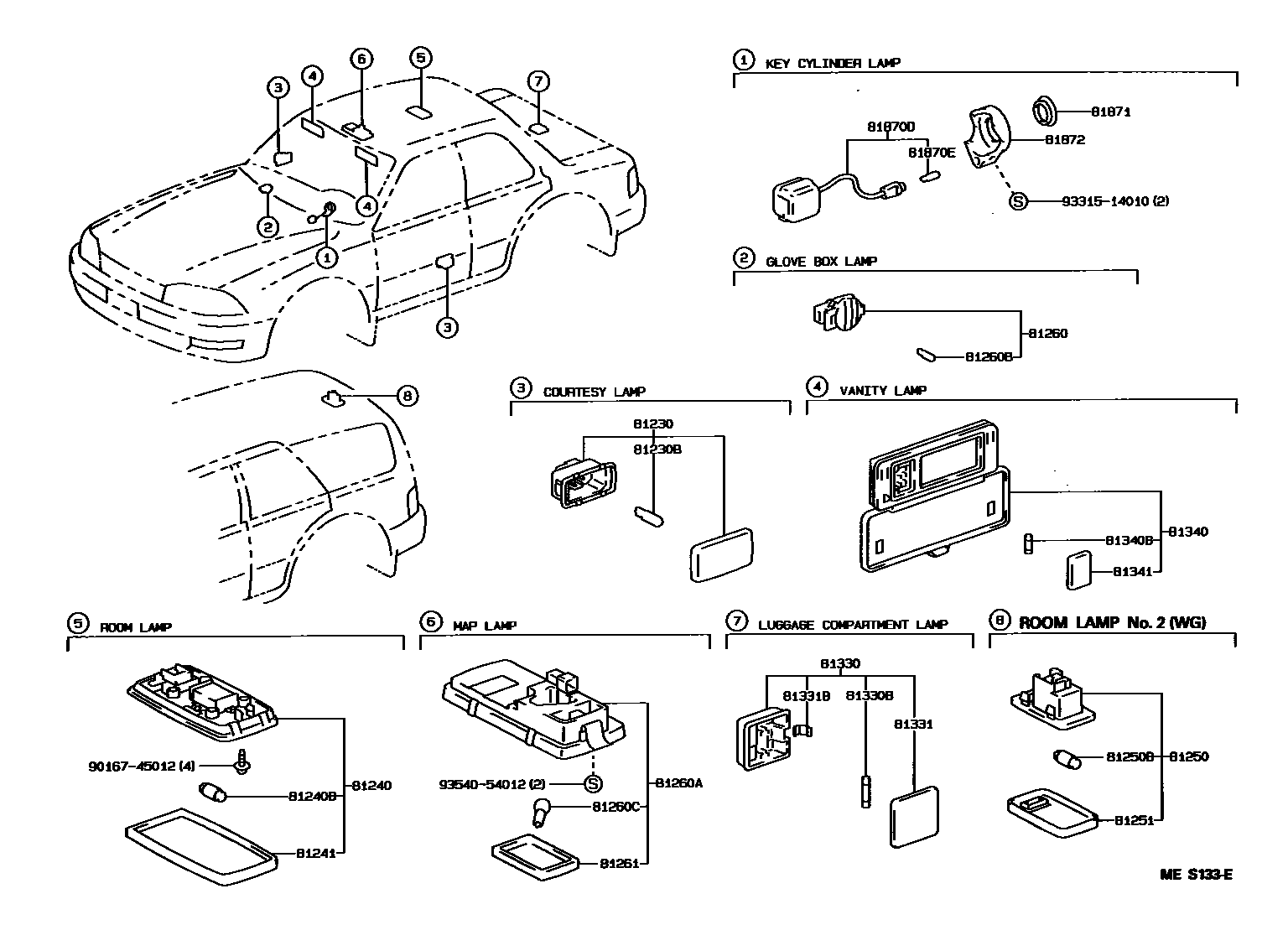

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-06010×2iMCV10,SXV10..NAP..CP199408-199607

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iMCV10,SXV10..NAP..CP199408-199607

12V 3.8W

81240LAMP ASSY, ROOM, NO.1

main81240-06010-B0iMCV10,SXV10,VCV10..NAP199109-199607

LIGHT GRAY,TRIM1#

main81240-06010-E0iSXV10,VCV10..NAP199209-199309

LT.OAK,TRIM4#

main81240-06010-J0iSXV10,VCV10..NAP199109-199309

LIGHT BLUE,TRIM8#

main81240-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199607

LIGHT TAUPE,TRIM9#

81240BBULB, ROOM LAMP, NO.1

main90080-81029iMCV10,SXV10,VCV10..NAP199109-199607

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-06020iMCV10,SXV10,VCV10..NAP199109-199607

81250LAMP ASSY, ROOM, NO.2

main81250-06010iMCV10,SXV10,VCV10..NAP..WG199203-199607

81250BBULB, ROOM LAMP, NO.2

main99132-13050iMCV10,SXV10,VCV10..NAP..WG199203-199607

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-06010iMCV10,SXV10,VCV10..NAP..WG199203-199408

81260LAMP ASSY, GLOVE BOX

main81260-33010iMCV10,SXV10,VCV10..NAP199109-199607

81260ALAMP ASSY, MAP

main81260-06020-B0iMCV10,SXV10,VCV10..NAP..(LE,SE,XLE)199109-199607

LIGHT GRAY,TRIM1#

main81260-06020-E0iSXV10,VCV10..NAP..(LE,SE,XLE)199209-199309

LT.OAK,TRIM4#

main81260-06020-J0iSXV10,VCV10..NAP..(LE,SE,XLE)199109-199309

LIGHT BLUE,TRIM8#

main81260-06020-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)..(LE,SE,XLE)199109-199607

LIGHT TAUPE,TRIM9#

81260BBULB(FOR GLOVE BOX)

main90981-11018iMCV10,SXV10,VCV10..NAP199109-199607

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12014iMCV10,SXV10,VCV10..NAP..(LE,SE,XLE)199109-199607

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-06020-B0iMCV10,SXV10,VCV10..NAP..(LE,SE,XLE)199109-199607

LIGHT GRAY,TRIM1#

main81261-06020-E0iMCV10,SXV10,VCV10..NAP..(LE,SE,XLE)199209-199607

LIGHT OAK,TRIM4#

main81261-06020-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)..(LE,SE,XLE)199109-199607

LIGHT TAUPE,TRIM9#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-06010iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

main81330-AC010iMCV10,SXV10..NAP..(CP,SED)199408-199607

KELLER BRASS A.M.K

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90069-98003iMCV10,SXV10..NAP..(CP,SED)199309-199408

12V 3W

main90981-14009iMCV10,SXV10..NAP..(CP,SED)199408-199607

12V 3W,KEELER BRASS A.M.K

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-AC010iMCV10,SXV10..NAP..(CP,SED)199408-199607

KEELER BRASS AUTO

main81338-06010iMCV10,SXV10..NAP..(CP,SED)199408-199607

STANLEY

81331BCLIP, LUGGAGE LAMP

main48141-AC020iMCV10,SXV10..NAP..(CP,SED)199408-199607

81340LAMP ASSY, VANITY

main81340-06010-B0×2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..LE..CND199509-199607

LIGHT GRAY,TRIM1#

main81340-06010-B2×2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..LE..CND199408-199509

LIGHT GRAY,TRIM1#

main81340-06010-E1×2iMCV10,SXV10,VCV10..NAP..XLE199209-199408

LIGHT OAK,TRIM4#

main81340-06010-E2×2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..LE..CND199408-199509

LIGHT OAK,TRIM4#

main81340-06010-J0×2iSXV10,VCV10..NAP..XLE199109-199309

LIGHT BLUE,TRIM8#

main81340-06010-K0×2iMCV10,SXV10,VCV10..NAP..XLE199109-199408

LIGHT TAUPE,TRIM9#

main81340-06010-K2×2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..(CP,SED)..LE..CND199408-199509

LIGHT TAUPE,TRIM9#

main81340-33010-B0iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199203-199309

LIGHT GRAY,TRIM1#,RH; W/O(*80),LIGHT GRAY,TRIM1#

main81340-33010-E0iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199209-199309

LIGHT OAK,TRIM4#,RH; W/O(*80),LIGHT OAK,TRIM4#

main81340-33010-J0×2iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199203-199309

LIGHT BLUE,TRIM8#,RH; W/O(*80),LIGHT BLUE,TRIM8#

main81340-33010-K0×2iSXV10..NAP..XLE199203-199309

W/O(*80),LIGHT TAUPE,TRIM9#

main81340-33040-15iSXV10,VCV10..NAP..LE..CND199308-199309

LH,LIGHT GRAY,LIGHT GRAY,TRIM1#

main81340-33040-E0iSXV10,VCV10..NAP..LE..CND199308-199309

LH,LIGHT OAK,LIGHT OAK,TRIM4#

main81340-33040-J0iSXV10,VCV10..NAP..LE..CND199203-199308

LIGHT BLUE,TRIM8#,LH

main81340-33040-K1iSXV10,VCV10..NAP..LE..CND199308-199309

LH,LIGHT TAUPE,TRIM9#

main81340-33060-B0×2iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199203-199309

LIGHT GRAY,TRIM1#,RH; W/O(*80),LIGHT GRAY,TRIM1#

main81340-33060-E0iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199209-199309

LT.OAK,TRIM4#,RH; W/O(*80),LT.OAK,TRIM4#

main81340-33060-J0×2iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199203-199309

LT. BLUE,TRIM8#,RH; W/O(*80),LT. BLUE,TRIM8#

main81340-33060-K0×2iSXV10..NAP..XLE199203-199309

W/O(*80),LT.TAUPE,TRIM9#

main81340-33070-B0iSXV10,VCV10..NAP..LE..CND199203-199309

LIGHT GRAY,TRIM1#,LH

main81340-33070-E0iSXV10,VCV10..NAP..LE..CND199209-199309

LIGHT OAK,TRIM4#,LH

main81340-33070-J0iSXV10,VCV10..NAP..LE..CND199203-199309

LT. BLUE,TRIM8#,LH

main81340-33071-B0×2iMCV10,SXV10..NAP..LE..CND199309-199408

LIGHT GRAY,TRIM1#

main81340-33071-E0×2iMCV10,SXV10..NAP..LE..CND199309-199408

LIGHT OAK,TRIM4#

main81340-33071-K0×2iMCV10,SXV10..NAP..(CP,SED)..LE..CND199309-199408

LIGHTTAUPE,TRIM9#

81340BBULB (FOR VANITY LAMP)

main90069-98002×2iMCV10,SXV10..NAP..XLE;MCV10,SXV10..NAP..LE..CND199408-199607

14V 1.5W

main90981-14007iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199203-199309

12V 3W

81341LENS, VANITY LAMP

main81341-06010×2iMCV10,SXV10..NAP..XLE199309-199408

main81341-33010×2iSXV10,VCV10..NAP..LE..CND; SXV10..NAP..XLE199203-199309

81870DLAMP ASSY, KEY CYLINDER

main81870-33010iMCV10,SXV10,VCV10..NAP199109-199607

81870EBULB, KEY CYLINDER LAMP

main90981-11014iMCV10,SXV10,VCV10..NAP199109-199607

14V 1.4W

81871LENS, KEY ILLUMINATION

main81871-33010iSXV10,VCV10..NAP199109-199203

main81871-33020iSXV10..NAP..DX..USA199203-199209

81872HOUSING, KEY CYLINDER LAMP

main81872-33010iMCV10,SXV10,VCV10..NAP199109-199607

9016745012

main90167-45012

9331514010

main93315-14010

9354054012

main93540-54012

27 parts on this diagram · 1 diagram in section
