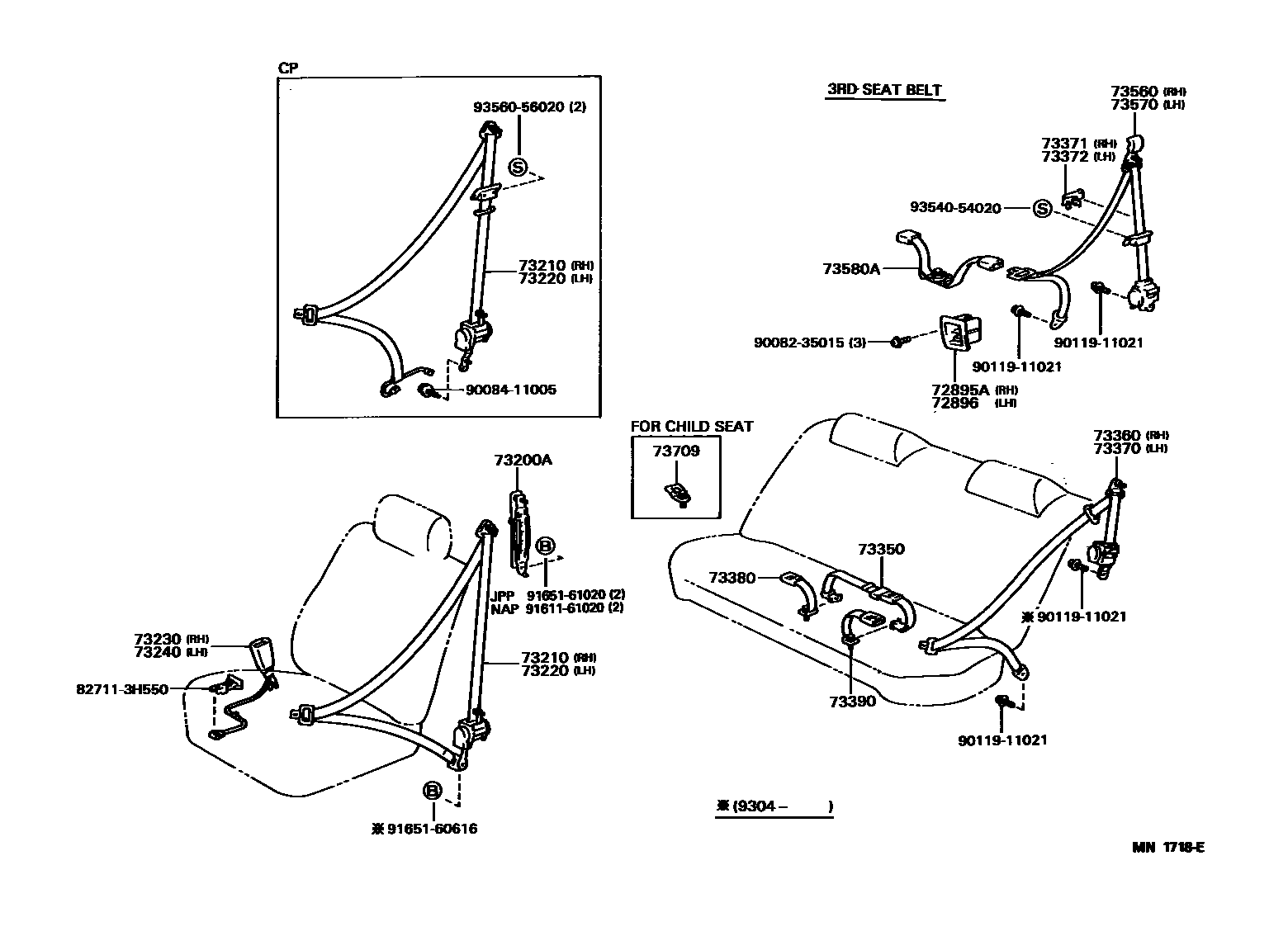

SEAT BELT & CHILD RESTRAINT SEAT

72895ACASE, REAR SEAT BELT, RH

main72895-06010-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main72895-06010-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main72895-06010-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

72896CASE, RR SEAT BELT, LH

main72896-06010-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main72896-06010-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main72896-06010-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06010-B0×2iMCV10,SXV10,VCV10..NAP..(SED,WG)199109-199408

MEDIUM GRAY,TRIM1#

main73200-06010-E0×2iMCV10,SXV10..NAP..(SED,WG)199408-199607

OAK,TRIM4#

main73200-06010-J0×2iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main73200-06010-K0×2iMCV10,SXV10..NAP..SED199408-199607

TAUPE,TRIM9#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

main73210-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

main73210-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main73210-06010-K0iSXV10,VCV10..NAP..SED199203-199309

TAUPE,TRIM9#

main73210-06031-B0iMCV10,SXV10..NAP..(SED,WG)199309-199607

SHADOW GRAY,TRIM1#

main73210-06031-E0iMCV10,SXV10..NAP..(SED,WG)199309-199607

OAK,TRIM4#

main73210-06031-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

main73210-AA010-B2iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main73210-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main73210-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

main73220-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

main73220-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main73220-06010-K0iSXV10,VCV10..NAP..SED199203-199309

TAUPE,TRIM9#

main73220-06030-B0iMCV10,SXV10..NAP..(SED,WG)199309-199408

SHADOW GRAY,TRIM1#

main73220-06030-B2iMCV10,SXV10..NAP..(SED,WG)199408-199607

MEDIUM GRAY,TRIM1#

main73220-06030-E0iMCV10,SXV10..NAP..(SED,WG)199309-199607

OAK,TRIM4#

main73220-06030-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

main73220-AA010-B2iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main73220-AA010-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main73220-AA010-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06010-B0iSXV10,VCV10..NAP199109-199309

MEDIUM GRAY,TRIM1#

main73230-06010-E0iSXV10,VCV10..NAP199209-199309

OAK,TRIM4#

main73230-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main73230-06010-K0iSXV10,VCV10..NAP..SED199203-199309

TAUPE,TRIM9#

main73230-06011-B0iMCV10,SXV10..NAP..(SED,WG)199309-199607

MEDIUM GRAY,TRIM1#

main73230-06011-E0iMCV10,SXV10..NAP..(SED,WG)199309-199607

OAK,TRIM4#

main73230-06011-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

main73240-06011-B0iMCV10,SXV10..NAP..CP199309-199607

MEDIUM GRAY,TRIM1#

main73240-06011-E0iMCV10,SXV10..NAP..CP199309-199607

OAK,TRIM4#

main73240-06011-K0iMCV10,SXV10..NAP..CP199309-199607

TAUPE,TRIM9#

main73240-AA010-B0iMCV10,SXV10..NAP..CP..LE199408-199607

W(POWER SEAT),MD.GRAY,TRIM1#

main73240-AA010-E0iMCV10,SXV10..NAP..CP..LE199408-199607

W(POWER SEAT),OAK,TRIM4#

main73240-AA010-K0iMCV10,SXV10..NAP..CP..LE199408-199607

W(POWER SEAT),TAUPE,TRIM9#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-06010-B0iSXV10,VCV10..NAP..(DX,LE,SE)199109-199309

MEDIUM GRAY,TRIM1#

main73240-06010-E0iSXV10,VCV10..NAP..(DX,LE,SE)199209-199309

OAK,TRIM4#

main73240-06010-J0iSXV10,VCV10..NAP..(DX,LE,SE)199109-199309

DARK BLUE,TRIM8#

main73240-06010-K0iSXV10,VCV10..NAP..SED..(DX,LE,SE)199109-199309

TAUPE,TRIM9#

main73240-06011-B0iMCV10,SXV10..NAP..(DX,LE,SE)199309-199607

MEDIUM GRAY,TRIM1#

main73240-06011-E0iMCV10,SXV10..NAP..(DX,LE,SE)199309-199607

OAK,TRIM4#

main73240-06011-K0iMCV10,SXV10..NAP..(CP,SED)..(DX,LE,SE)199309-199607

TAUPE,TRIM9#

main73240-06020-B0iSXV10,VCV10..NAP..XLE199109-199309

MEDIUM GRAY,TRIM1#

main73240-06020-E0iSXV10,VCV10..NAP..WG..LE; SXV10,VCV10..NAP..XLE199209-199309

OAK,TRIM4#; W(POWER SEAT),OAK,TRIM4#

main73240-06020-J0iSXV10,VCV10..NAP..XLE199109-199309

DARK BLUE,TRIM8#

main73240-06020-K0iSXV10,VCV10..NAP..XLE199203-199309

TAUPE,TRIM9#

main73240-06021-B0iMCV10..NAP..SED..LE..CND; MCV10..NAP..WG;SXV10..NAP..WG..LE..USA;SXV10..NAP..(SED,WG)..LE..CND199408-199607

W(POWER SEAT),MEDIUM GRAY,TRIM1#

main73240-06021-E0iMCV10..NAP..SED..LE..CND; MCV10..NAP..WG;SXV10..NAP..WG..LE..USA;SXV10..NAP..(SED,WG)..LE..CND199408-199607

W(POWER SEAT),OAK,TRIM4#

main73240-06021-K0iMCV10,SXV10..NAP..XLE199309-199607

TAUPE,TRIM9#

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-06010-B0iSXV10,VCV10..NAP..SED199109-199209

MEDIUM GRAY,TRIM1#

main73350-06010-J0iSXV10,VCV10..NAP..SED199109-199209

DARK BLUE,TRIM8#

main73350-06010-K0iSXV10,VCV10..NAP..SED199109-199209

TAUPE,TRIM9#

main73350-06011-B0iSXV10,VCV10..NAP..SED199209-199309

MEDIUM GRAY,TRIM1#

main73350-06011-E0iSXV10,VCV10..NAP..SED199209-199309

OAK,TRIM4#

main73350-06011-J0iSXV10,VCV10..NAP..SED199209-199309

DARK BLUE,TRIM8#

main73350-06011-K0iSXV10,VCV10..NAP..SED199209-199309

TAUPE,TRIM9#

main73350-06020-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73350-06020-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73350-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73350-06040-B0iMCV10,SXV10..NAP..(CP,SED)199309-199408

SHADOW GRAY,TRIM1#

main73350-06040-B2iMCV10,SXV10..NAP..(CP,SED)199408-199607

MEDIUM GRAY,TRIM1#

main73350-06040-E0iMCV10,SXV10..NAP..(CP,SED)199309-199408

OAK,TRIM4#

main73350-06040-E2iMCV10,SXV10..NAP..(CP,SED)199408-199607

OAK,TRIM4#

main73350-06040-K0iMCV10,SXV10..NAP..(CP,SED)199309-199408

TAUPE,TRIM9#

main73350-06040-K2iMCV10,SXV10..NAP..(CP,SED)199408-199607

TAUPE,TRIM9#

main73350-06050-B0iMCV10,SXV10..NAP..WG199309-199408

SHADOW GRAY,TRIM1#

main73350-06050-B2iMCV10,SXV10..NAP..WG199408-199607

MEDIUM GRAY,TRIM1#

main73350-06050-E0iMCV10,SXV10..NAP..WG199309-199408

OAK,TRIM4#

main73350-06050-E2iMCV10,SXV10..NAP..WG199408-199607

OAK,TRIM4#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-06010-B0iSXV10,VCV10..NAP..SED199109-199209

MEDIUM GRAY,TRIM1#

main73360-06010-J0iSXV10,VCV10..NAP..SED199109-199209

DARK BLUE,TRIM8#

main73360-06010-K0iSXV10,VCV10..NAP..SED199109-199209

TAUPE,TRIM9#

main73360-06011-B0iSXV10,VCV10..NAP..SED199209-199309

MEDIUM GRAY,TRIM1#

main73360-06011-E0iSXV10,VCV10..NAP..SED199209-199309

OAK,TRIM4#

main73360-06011-J0iSXV10,VCV10..NAP..SED199209-199309

DARK BLUE,TRIM8#

main73360-06011-K0iSXV10,VCV10..NAP..SED199209-199309

TAUPE,TRIM9#

main73360-06020-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73360-06020-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73360-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73360-06061-B0iMCV10,SXV10..NAP..(CP,SED)199309-199508

MEDIUM GRAY,TRIM1#

main73360-06061-E0iMCV10,SXV10..NAP..(CP,SED)199309-199508

OAK,TRIM4#

main73360-06061-K0iMCV10,SXV10..NAP..(CP,SED)199309-199508

TAUPE,TRIM9#

main73360-06062-B2iMCV10,SXV10..NAP..(CP,SED)199508-199607

SHADOW GRAY,TRIM1#

main73360-06062-E2iMCV10,SXV10..NAP..(CP,SED)199508-199607

OAK,TRIM4#

main73360-06062-K2iMCV10,SXV10..NAP..(CP,SED)199508-199607

TAUPE,TRIM9#

main73360-06071-B0iMCV10,SXV10..NAP..WG199309-199508

SHADOW GRAY,TRIM1#

main73360-06071-E0iMCV10,SXV10..NAP..WG199309-199508

OAK,TRIM4#

main73360-06072-B2iMCV10,SXV10..NAP..WG199508-199607

MD.GRAY,TRIM1#

main73360-06072-E2iMCV10,SXV10..NAP..WG199508-199607

OAK,TRIM4#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-06010-B0iSXV10,VCV10..NAP..SED199109-199209

MEDIUM GRAY,TRIM1#

main73370-06010-J0iSXV10,VCV10..NAP..SED199109-199209

DARK BLUE,TRIM8#

main73370-06010-K0iSXV10,VCV10..NAP..SED199109-199209

TAUPE,TRIM9#

main73370-06011-B0iSXV10,VCV10..NAP..SED199209-199309

MEDIUM GRAY,TRIM1#

main73370-06011-E0iSXV10,VCV10..NAP..SED199209-199309

OAK,TRIM4#

main73370-06011-J0iSXV10,VCV10..NAP..SED199209-199309

DARK BLUE,TRIM8#

main73370-06011-K0iSXV10,VCV10..NAP..SED199209-199309

TAUPE,TRIM9#

main73370-06020-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73370-06020-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73370-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73370-06061-B0iMCV10,SXV10..NAP..(CP,SED)199309-199508

MEDIUM GRAY,TRIM1#

main73370-06061-E0iMCV10,SXV10..NAP..(CP,SED)199309-199508

OAK,TRIM4#

main73370-06061-K0iMCV10,SXV10..NAP..(CP,SED)199309-199508

TAUPE,TRIM9#

main73370-06062-B2iMCV10,SXV10..NAP..(CP,SED)199508-199607

SHADOW GRAY,TRIM1#

main73370-06062-E2iMCV10,SXV10..NAP..(CP,SED)199508-199607

OAK,TRIM4#

main73370-06062-K2iMCV10,SXV10..NAP..(CP,SED)199508-199607

TAUPE,TRIM9#

main73370-06071-B0iMCV10,SXV10..NAP..WG199309-199508

SHADOW GRAY,TRIM1#

main73370-06071-E0iMCV10,SXV10..NAP..WG199309-199508

OAK,TRIM4#

main73370-06072-B2iMCV10,SXV10..NAP..WG199508-199607

MD.GRAY,TRIM1#

main73370-06072-E2iMCV10,SXV10..NAP..WG199508-199607

OAK,TRIM4#

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-16050-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main73371-16050-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main73371-16050-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-16050-B0iMCV10,SXV10,VCV10..NAP..WG199203-199607

MEDIUM GRAY,TRIM1#

main73371-16050-E0iMCV10,SXV10,VCV10..NAP..WG199209-199607

OAK,TRIM4#

main73371-16050-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-06010-B0iSXV10,VCV10..NAP..SED199109-199209

MEDIUM GRAY,TRIM1#

main73380-06010-J0iSXV10,VCV10..NAP..SED199109-199209

DARK BLUE,TRIM8#

main73380-06010-K0iSXV10,VCV10..NAP..SED199109-199209

TAUPE,TRIM9#

main73380-06011-B0iSXV10,VCV10..NAP..SED199209-199309

MEDIUM GRAY,TRIM1#

main73380-06011-E0iSXV10,VCV10..NAP..SED199209-199309

OAK,TRIM4#

main73380-06011-J0iSXV10,VCV10..NAP..SED199209-199309

DARK BLUE,TRIM8#

main73380-06011-K0iSXV10,VCV10..NAP..SED199209-199309

TAUPE,TRIM9#

main73380-06020-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73380-06020-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73380-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73380-06040-B0iMCV10,SXV10..NAP..(CP,SED)199309-199408

SHADOW GRAY,TRIM1#

main73380-06040-B2iMCV10,SXV10..NAP..(CP,SED)199408-199607

MEDIUM GRAY,TRIM1#

main73380-06040-E0iMCV10,SXV10..NAP..SED199309-199310

OAK,TRIM4#

main73380-06040-E2iMCV10,SXV10..NAP..(CP,SED)199408-199607

OAK,TRIM4#

main73380-06040-K0iMCV10,SXV10..NAP..(CP,SED)199309-199408

TAUPE,TRIM9#

main73380-06040-K2iMCV10,SXV10..NAP..(CP,SED)199408-199607

TAUPE,TRIM9#

main73380-06050-B0iMCV10,SXV10..NAP..WG199309-199408

SHADOW GRAY,TRIM1#

main73380-06050-B2iMCV10,SXV10..NAP..WG199408-199607

MEDIUM GRAY,TRIM1#

main73380-06050-E0iMCV10,SXV10..NAP..WG199309-199408

OAK,TRIM4#

main73380-06050-E2iMCV10,SXV10..NAP..WG199408-199607

OAK,TRIM4#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-06010-B0iSXV10,VCV10..NAP..SED199109-199209

MEDIUM GRAY,TRIM1#

main73380-06010-J0iSXV10,VCV10..NAP..SED199109-199209

DARK BLUE,TRIM8#

main73380-06010-K0iSXV10,VCV10..NAP..SED199109-199209

TAUPE,TRIM9#

main73380-06011-B0iSXV10,VCV10..NAP..SED199209-199309

MEDIUM GRAY,TRIM1#

main73380-06011-E0iSXV10,VCV10..NAP..SED199209-199309

OAK,TRIM4#

main73380-06011-J0iSXV10,VCV10..NAP..SED199209-199309

DARK BLUE,TRIM8#

main73380-06011-K0iSXV10,VCV10..NAP..SED199209-199309

TAUPE,TRIM9#

main73380-06020-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73380-06020-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73380-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73380-06040-B0iMCV10,SXV10..NAP..(CP,SED)199309-199408

SHADOW GRAY,TRIM1#

main73380-06040-B2iMCV10,SXV10..NAP..(CP,SED)199408-199607

MEDIUM GRAY,TRIM1#

main73380-06040-E0iMCV10,SXV10..NAP..(CP,SED)199310-199408

OAK,TRIM4#

main73380-06040-E2iMCV10,SXV10..NAP..(CP,SED)199408-199607

OAK,TRIM4#

main73380-06040-K0iMCV10,SXV10..NAP..(CP,SED)199309-199408

TAUPE,TRIM9#

main73380-06040-K2iMCV10,SXV10..NAP..(CP,SED)199408-199607

TAUPE,TRIM9#

main73380-06050-B0iMCV10,SXV10..NAP..WG199309-199408

SHADOW GRAY,TRIM1#

main73380-06050-B2iMCV10,SXV10..NAP..WG199408-199607

MEDIUM GRAY,TRIM1#

main73380-06050-E0iMCV10,SXV10..NAP..WG199309-199408

OAK,TRIM4#

main73380-06050-E2iMCV10,SXV10..NAP..WG199408-199607

OAK,TRIM4#

73560BELT ASSY, REAR NO.2 SEAT, OUTER RH

main73560-06020-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73560-06020-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73560-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73560-06040-B0iMCV10,SXV10..NAP..WG199309-199607

SHADOW GRAY,TRIM1#

main73560-06040-E0iMCV10,SXV10..NAP..WG199309-199607

OAK,TRIM4#

73570BELT ASSY, REAR NO.2 SEAT, OUTER LH

main73570-06020-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73570-06020-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73570-06020-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73570-06040-B0iMCV10,SXV10..NAP..WG199309-199607

SHADOW GRAY,TRIM1#

main73570-06040-E0iMCV10,SXV10..NAP..WG199309-199607

OAK,TRIM4#

73580ABELT SUB ASSY, REAR NO.2 SEAT, INNER

main73580-06010-B0iSXV10,VCV10..NAP..WG199203-199309

MEDIUM GRAY,TRIM1#

main73580-06010-E0iSXV10,VCV10..NAP..WG199209-199309

OAK,TRIM4#

main73580-06010-J0iSXV10,VCV10..NAP..WG199203-199309

DARK BLUE,TRIM8#

main73580-06020-B0iMCV10,SXV10..NAP..WG199309-199607

SHADOW GRAY,TRIM1#

main73580-06020-E0iMCV10,SXV10..NAP..WG199309-199607

OAK,TRIM4#

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73709-20010iMCV10,SXV10,VCV10..NAP..CND199203-199607

827113H550WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H550

9008235015

main90082-35015

9008411005

main90084-11005

9011911021

main90119-11021

9161161020

main91611-61020

9165160616

main91651-60616

9165161020

main91651-61020

9354054020

main93540-54020

9356056020

main93560-56020

27 parts on this diagram · 1 diagram in section
