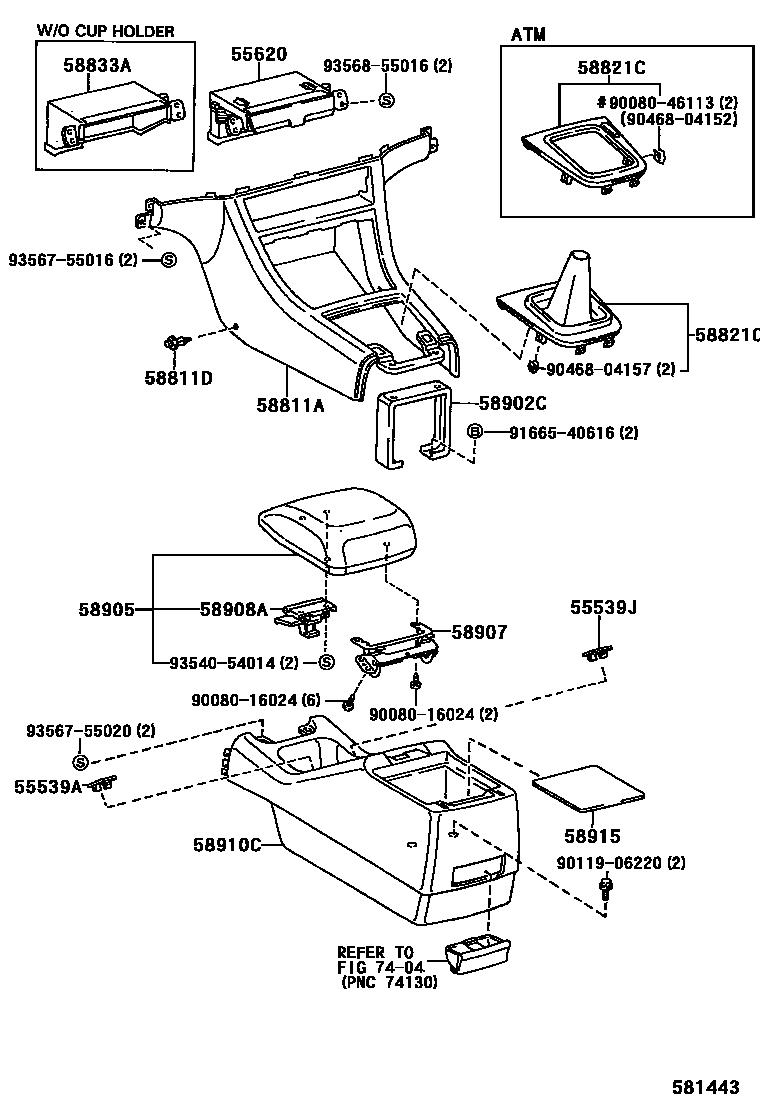

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1SPORTS PACKAGE

55539ACOVER, SPARE SWITCH HOLE

main55539-06010-B0iMCV10..NAP..(CP,SED)..LE..CND; SXV10..NAP;MCV10..NAP..SE199408-199607

MEDIUM GRAY,TRIM1#; SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#

main55539-06010-E0iMCV10..NAP..(CP,SED)..LE..CND; SXV10..NAP;MCV10..NAP..SE199408-199607

OAK,TRIM4#; SPORTS PACKAGE-*99,OAK,TRIM4#

main55539-06010-J0iSXV10..NAP;VCV10..NAP..SE199109-199309

DARK BLUE,TRIM8#

main55539-06010-K0iMCV10..NAP..(CP,SED)..LE..CND; MCV10..NAP..SE;SXV10..NAP..(CP,SED)199408-199607

SPORTS PACKAGE-*99,TAUPE,TRIM9#; TAUPE,TRIM9#

55539JCOVER, SPARE SWITCH HOLE

main55539-06010-B0iMCV10..NAP..(CP,SED)..LE..CND; MCV10..NAP..SE; SXV10..NAP..(CP,SED); SXV10..NAP..WG..LE199408-199607

MEDIUM GRAY,TRIM1#; SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#

main55539-06010-E0iMCV10..NAP..(CP,SED)..LE..CND; MCV10..NAP..SE; SXV10..NAP..(CP,SED); SXV10..NAP..WG..LE199408-199607

OAK,TRIM4#; SPORTS PACKAGE-*99,OAK,TRIM4#

main55539-06010-J0iVCV10..NAP..SE;SXV10..NAP..SED;SXV10..NAP..WG..LE;SXV10..NAP..DX..CND199109-199309

DARK BLUE,TRIM8#

main55539-06010-K0iMCV10..NAP..(CP,SED)..LE..CND; MCV10..NAP..SE;SXV10..NAP..(CP,SED)199408-199607

SPORTS PACKAGE-*99,TAUPE,TRIM9#; TAUPE,TRIM9#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-06010-B0iSXV10..NAP..DX..CND;SXV10,VCV10..NAP..WG..LE; SXV10..NAP..WG..DX..USA199203-199209

MEDIUM GRAY,TRIM1#,(L)

main55620-06010-E0iMCV10,SXV10,VCV10..NAP199209-199607

OAK,TRIM4#,(L)

main55620-06010-J0iSXV10..NAP..DX..CND;SXV10,VCV10..NAP..WG..LE; SXV10..NAP..WG..DX..USA199203-199209

DARK BLUE,TRIM8#,(L)

main55620-06010-K0×2iSXV10..NAP..SED..DX199109-199209

TAUPE,TRIM9#,(L)

main55620-33010-E0iSXV10,VCV10..NAP199209-199210

OAK,TRIM4#,(J)

main55620-33010-K0iSXV10..NAP..SED..DX; VCV10..NAP..SED;SXV10..NAP..SED..(LE,XLE)199109-199209

TAUPE,TRIM9#,(J)

main55620-33010-S4iSXV10..NAP..DX..USA; VCV10..NAP;SXV10..NAP..DX..CND;SXV10..NAP..(LE,XLE)199109-199209

MEDIUM GRAY,TRIM1#,(J)

main55620-33010-W3iSXV10..NAP..DX..USA; VCV10..NAP;SXV10..NAP..DX..CND;SXV10..NAP..(LE,XLE)199109-199209

DARK BLUE,TRIM8#,(J)

58811ABOX, CONSOLE, FRONT

main58810-06010-B0iMCV10,SXV10..NAP199408-199607

MEDIUM GRAY,TRIM1#

main58810-06010-E0iMCV10,SXV10,VCV10..NAP199209-199408

OAK,TRIM4#

main58810-06010-J0iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main58810-06010-K0iMCV10,SXV10,VCV10..NAP..(CP,SED)199109-199408

TAUPE,TRIM9#

58811DCLIP(FOR CONSOLE BOX)

main90467-06151-B0×2iMCV10,SXV10,VCV10..NAP199109-199408

MEDIUM GRAY,TRIM1#

main90467-06151-E0×2iMCV10,SXV10,VCV10..NAP199209-199408

OAK,TRIM4#

main90467-06151-J0×2iSXV10,VCV10..NAP199109-199309

DARK BLUE,TRIM8#

main90467-06151-K0×2iMCV10,SXV10..NAP..(CP,SED)199408-199607

TAUPE,TRIM9#

58821CPANEL, CONSOLE, UPPER

main58804-06010-B0iMCV10,SXV10,VCV10..NAP..ATM199109-199408

MEDIUM GRAY,TRIM1#

main58804-06010-E0iMCV10,SXV10..NAP..ATM199408-199607

OAK,TRIM4#

main58804-06010-J0iSXV10,VCV10..NAP..ATM199109-199309

DARK BLUE,TRIM8#

main58804-06010-K0iMCV10,SXV10..NAP..(CP,SED)..ATM199408-199607

TAUPE,TRIM9#

main58804-33010-B0iSXV10..NAP..MTM199109-199607

MEDIUM GRAY,TRIM1#

main58804-33010-E0iSXV10..NAP..MTM199209-199607

OAK,TRIM4#

main58804-33010-J0iSXV10..NAP..MTM199109-199309

DARK BLUE,TRIM8#

main58804-33010-K0iSXV10..NAP..(CP,SED)..MTM199109-199607

TAUPE,TRIM9#

main58804-33080-B0iVCV10..NAP..MTM199209-199309

MEDIUM GRAY,TRIM1#

main58804-33080-E0iVCV10..NAP..MTM199209-199309

OAK,TRIM4#

main58804-33080-J0iVCV10..NAP..MTM199209-199309

DARK BLUE,TRIM8#

main58804-33080-K0iVCV10..NAP..MTM199209-199309

TAUPE,TRIM9#

58833ACOVER, CONSOLE, UPPER

main58833-33010-B0iSXV10..NAP..DX..USA199203-199209

MEDIUM GRAY,TRIM1#

main58833-33010-J0iSXV10..NAP..DX..USA199203-199209

DARK BLUE,TRIM8#

main58833-33010-K0iSXV10..NAP..SED..DX199203-199209

TAUPE,TRIM9#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-06010iSXV10,VCV10..NAP..MTM199109-199607

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-06010-B0iMCV10,VCV10..NAP..SE;SXV10..NAP..(LE,XLE)199109-199607

MEDIUM GRAY,TRIM1#

main58905-06010-E0iSXV10..NAP..SED..ATM..DX; VCV10..NAP..SE;SXV10..NAP..(LE,XLE)199209-199309

OAK,TRIM4#; TAIWAN SPEC & W/O(*80),OAK,TRIM4#

main58905-06010-J0iVCV10..NAP..SE;SXV10..NAP..(LE,XLE)199109-199309

DARK BLUE,TRIM8#

main58905-06010-K0iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE-*99,TAUPE,TRIM9#

main58905-06020-B0iSXV10..NAP..DX199210-199607

MEDIUM GRAY,TRIM1#

main58905-06020-E0iSXV10..NAP..DX199210-199607

OAK,TRIM4#

main58905-06020-J0iSXV10..NAP..DX199210-199309

DARK BLUE,TRIM8#

main58905-06020-K0iSXV10..NAP..(CP,SED)..DX199210-199607

TAUPE,TRIM9#

main58905-33020-E0iSXV10..NAP..DX199209-199210

OAK,TRIM4#

main58905-33020-K0iSXV10..NAP..SED..DX199109-199210

TAUPE,TRIM9#

main58905-33020-S4iSXV10..NAP..DX199109-199210

MEDIUM GRAY,TRIM1#

main58905-33020-W3iSXV10..NAP..DX199109-199210

DARK BLUE,TRIM8#

main58905-33050-B0iMCV10,VCV10..NAP..(DX,LE,XLE)199109-199607

MEDIUM GRAY,TRIM1#

main58905-33050-E0iMCV10,VCV10..NAP..(DX,LE,XLE)199209-199607

OAK,TRIM4#

main58905-33050-J0iVCV10..NAP..(DX,LE,XLE)199109-199309

DARK BLUE,TRIM8#

main58905-33050-K0iMCV10,VCV10..NAP..(CP,SED)..(DX,LE,XLE)199109-199607

TAUPE,TRIM9#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-06010iSXV10..NAP;MCV10,VCV10..NAP..SE199109-199607

main58907-33020iMCV10,VCV10..NAP..(DX,LE,XLE)199109-199607

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-06010iSXV10..NAP..(LE,XLE)199109-199203

main58908-50010iSXV10..NAP..DX199109-199203

58910CBOX ASSY, CONSOLE, REAR

main58910-06010-B0iMCV10..NAP..(CP,SED)..LE..CND199309-199607

SPORTS PACKAGE-*99,MEDIUM GRAY,TRIM1#

main58910-06010-E0iMCV10,VCV10..NAP..SE;SXV10..NAP..(LE,XLE)199209-199408

OAK,TRIM4#

main58910-06010-J0iVCV10..NAP..SE;SXV10..NAP..(LE,XLE)199109-199309

DARK BLUE,TRIM8#

main58910-06010-K0iMCV10..NAP..SE;SXV10..NAP..(CP,SED)..(LE,XLE)199408-199607

TAUPE,TRIM9#

main58910-06020-B0iSXV10..NAP..SED..ATM199203-199309

TAIWAN SPEC & W/O(*80),MEDIUM GRAY,TRIM1#

main58910-06020-E0iSXV10..NAP..SED..ATM199209-199309

TAIWAN SPEC & W/O(*80),OAK,TRIM4#

main58910-06020-J0iSXV10..NAP..SED..ATM199203-199309

TAIWAN SPEC & W/O(*80),DARK BLUE,TRIM8#

main58910-06020-K0iSXV10..NAP..SED..ATM199203-199309

TAIWAN SPEC & W/O(*80),TAUPE,TRIM9#

main58910-06040-B0iSXV10..NAP..DX199109-199607

MEDIUM GRAY,TRIM1#

main58910-06040-E0iSXV10..NAP..DX199209-199607

OAK,TRIM4#

main58910-06040-J0iSXV10..NAP..DX199109-199309

DARK BLUE,TRIM8#

main58910-06040-K0iSXV10..NAP..(CP,SED)..DX199203-199607

TAUPE,TRIM9#

main58910-33060-B0iMCV10,VCV10..NAP..(DX,LE,XLE)199109-199607

MEDIUM GRAY,TRIM1#

main58910-33060-E0iMCV10,VCV10..NAP..(DX,LE,XLE)199209-199607

OAK,TRIM4#

main58910-33060-J0iVCV10..NAP..(DX,LE,XLE)199109-199309

DARK BLUE,TRIM8#

main58910-33060-K0iMCV10,VCV10..NAP..(CP,SED)..(DX,LE,XLE)199109-199607

TAUPE,TRIM9#

58915PANEL, BOX BOTTOM

main58915-06010iMCV10,VCV10..NAP..SE;SXV10..NAP..(LE,XLE)199109-199404

main58915-06011iMCV10..NAP..(CP,SED)..LE..CND; MCV10..NAP..SE;SXV10..NAP..(LE,XLE)199404-199607

SPORTS PACKAGE-*99

main58915-06020iSXV10..NAP..SED..ATM199203-199309

TAIWAN SPEC & W/O(*80)

main58915-33030iVCV10..NAP..(DX,LE,XLE)..USA199109-199301

main58915-33031iMCV10..NAP..(DX,LE,XLE);VCV10..NAP..(DX,LE,XLE)..USA199301-199607

7404ASH RECEPTACLE

→ Go to FIG 74-04

9008016024

main90080-16024

9008046113

main90080-46113

9011906220

main90119-06220

9046804152

main90468-04152

9046804157

main90468-04157

9166540616

main91665-40616

9354054014

main93540-54014

9356755016

main93567-55016

9356755020

main93567-55020

9356855016

main93568-55016

24 parts on this diagram · 3 diagrams in section
