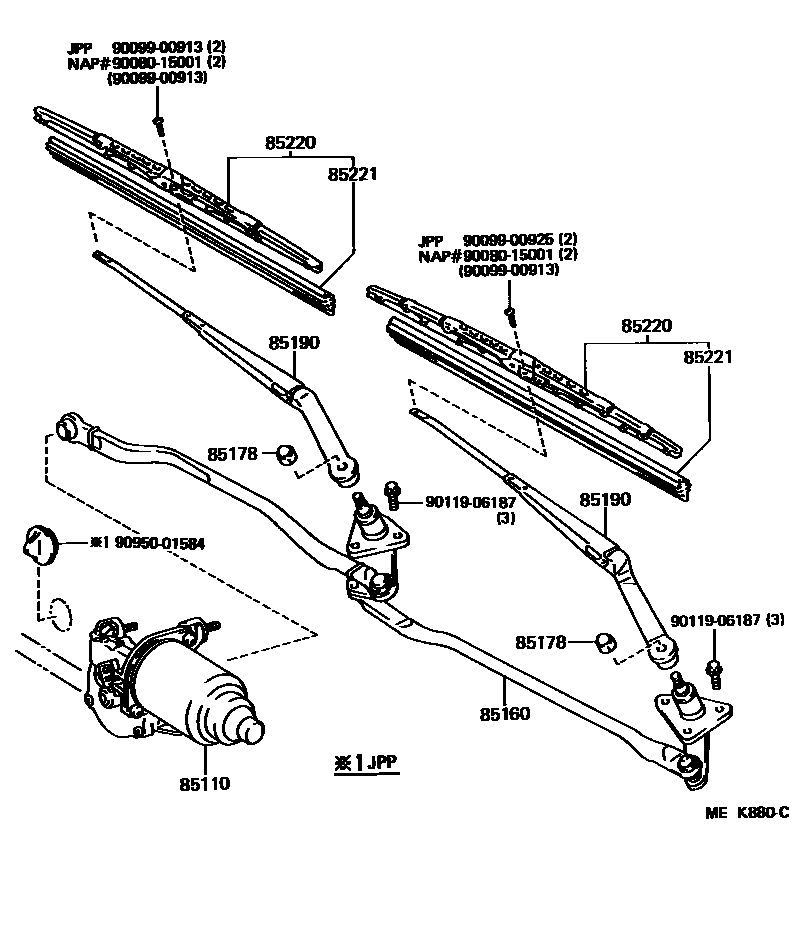

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-03010iSV21198807-198909

main85110-03011iSV21,VZV21198909-199109

85160LINK ASSY, WINDSHIELD WIPER

main85160-32130iSV21,VZV21198807-199109

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iSV21198807-198810

main90176-08040×2iSV21,VZV21198810-199109

85190ARM ASSY, WINDSHIELD WIPER

main85190-03010iSV21,VZV21198807-199109

LH

main85210-03010iSV21,VZV21198807-199109

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-03010iSV21,VZV21198807-199109

LH

main85220-03020iSV21,VZV21198807-199109

RH

85221BLADE, WINDSHIELD WIPER

main85221-03010iSV21,VZV21198807-199109

LH

main85221-03020iSV21,VZV21198807-199109

RH

9008015001

main90080-15001

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

9095001584

main90950-01584

11 parts on this diagram · 1 diagram in section
