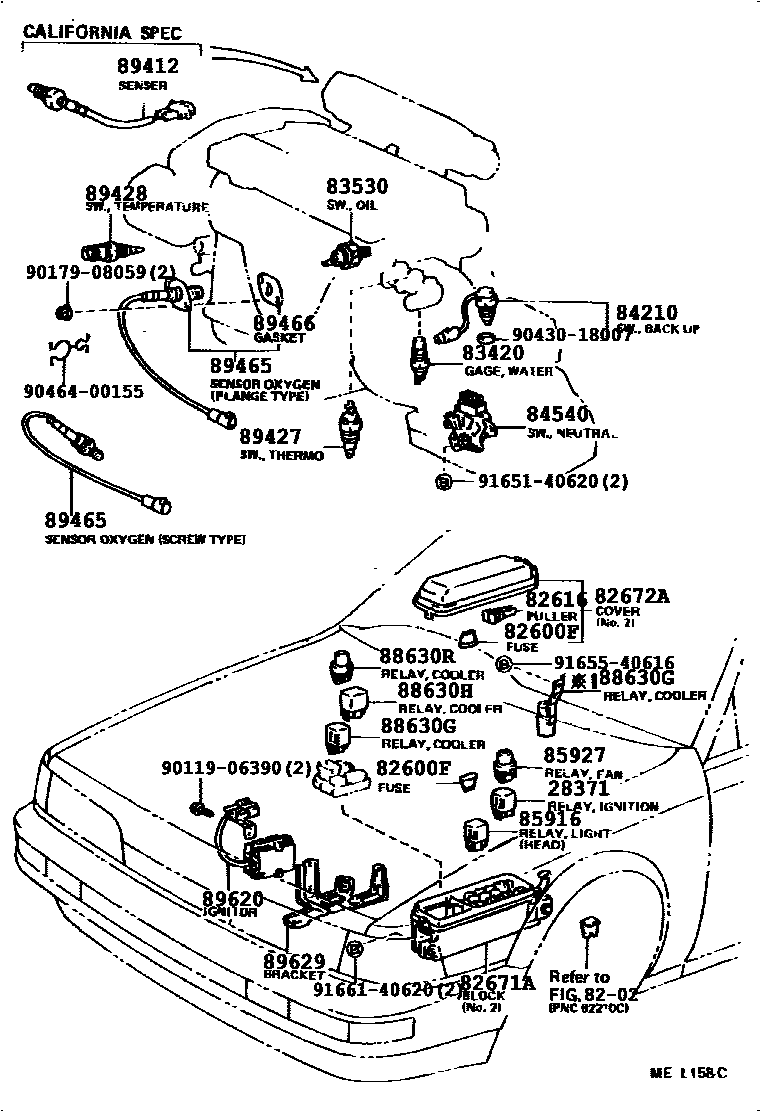

SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
10A,RED
15A,BLUE
20A,YELLOW
7.5A,BROWN
10A
15A
20A,YELLOW
7.5A
82616PULLER, FUSE
82671ABLOCK, JUNCTION
NO.1
NO.1
NO.2
82672ACOVER, JUNCTION BLOCK
NO.3
NO.1
NO.2
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
85916RELAY, LIGHT CONTROL
TAIL LAMP
HEAD LAMP
85927RELAY, COOLING FAN
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89412SENSOR, E.G.R GAS TEMPERATURE
CALIFORNIA SPEC
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
89465SENSOR, OXYGEN
FLANGE TYPE
CALIFORNIA SPEC,SCREW TYPE
CALIFORNIA SPEC,SCREW TYPE
FLANGE TYPE
CALIFORNIA SPEC,FLANGE TYPE
9011906390
main90119-06390
9017908059
main90179-08059
9043018007
main90430-18007
9046400155
main90464-00155
9165140620
main91651-40620
9165540616
main91655-40616
9166140620
main91661-40620
29 parts on this diagram · 6 diagrams in section
