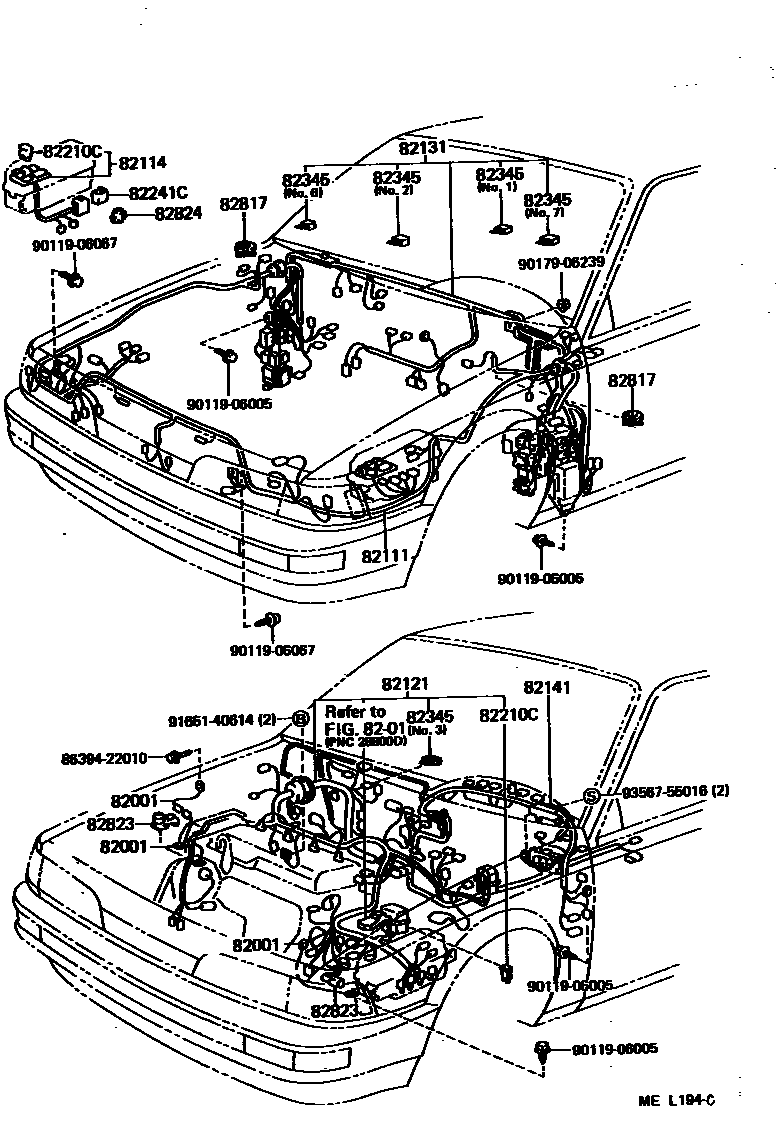

WIRING & CLAMP
82001CABLE, BOND, NO.1
TRANSMISSION
ENGINE
ENGINE HANGER
SUSPENSION TOWER
8201BATTERY & BATTERY CABLE
82111WIRE, ENGINE ROOM MAIN
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(ANTI-LOCK BRAKE SYSTEM)
82114WIRE, ENGINE ROOM, NO.4
E/G ROOM J/B NO.2
HEATER
82121WIRE, ENGINE
(L)
(L)
(L)
(L)
(L)
(L)
(J)
(J)
(J)
(J)
(J)
(J)
(J)
(J)
(J)
82131WIRE, COWL
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(CRUISE CONTROL)
W(*PW) OR W(*MR)
W(*PW) OR W(*MR)
W(*PW) OR W(*MR)
W(*PW & *MR & *CRC) OR W(*PW & *CRC) OR W(*MR & *CRC)
W(*PW & *MR & *CRC) OR W(*PW & *CRC) OR W(*MR & *CRC)
W(*PW) OR W(*MR)
W(*PW) OR W(*MR)
W(*PW) OR W(*MR)
TAIWAN SPEC & W(*PW & *MR & *66) OR TAIWAN SPEC & W(*PW & *66);TAIWAN SPEC & W(*MR& *66)
TAIWAN SPEC & W(*PW) OR TAIWAN SPEC & W(*PW & *MR) OR TAIWAN SPEC & W(*MR)
82141WIRE, INSTRUMENT PANEL
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
80A,TERM.:MALE,BLK
80A,TERM.:MALE,BLK
82241CWIRE, RELAY
82345DIODE
COWL WIRE,NO.1
COWL WIRE,NO.2
COWL WIRE,NO.3
COWL WIRE,NO.6
COWL WIRE,NO.7
82817PROTECTOR, WIRING HARNESS, NO.1
82823CAP, TERMINAL, NO.1
82824CONNECTOR, WIRING HARNESS
8639422010
main86394-22010
9011906005
main90119-06005
9011906067
main90119-06067
9017906239
main90179-06239
9165140614
main91651-40614
9356755016
main93567-55016
19 parts on this diagram · 6 diagrams in section
