BATTERY & BATTERY CABLE

28800BATTERY

main28800-03010i3SFE,2VZFE..SV21,VZV21..DX,LE; 3SFE..SV21..STD198807-199109

55D23L,55D23L-MF,JOHNSON CONTROL

main28800-03020i3SFE,2VZFE..SV21,VZV21..DX,LE; 3SFE..SV21..STD198807-199109

55D23L,GNB

main28800-03030i3SFE..SV21..STD198807-199109

55D20L

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i3SFE,2VZFE..SV21,VZV21198807-199109

28800BCABLE, BATTERY TO GROUND

main82123-03011i3SFE..SV21198807-199109

main82123-03020i2VZFE..VZV21198909-199109

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16010i3SFE,2VZFE..SV21,VZV21198807-198912

9010508225

main90105-08225

9011906390

main90119-06390

9017908146

main90179-08146

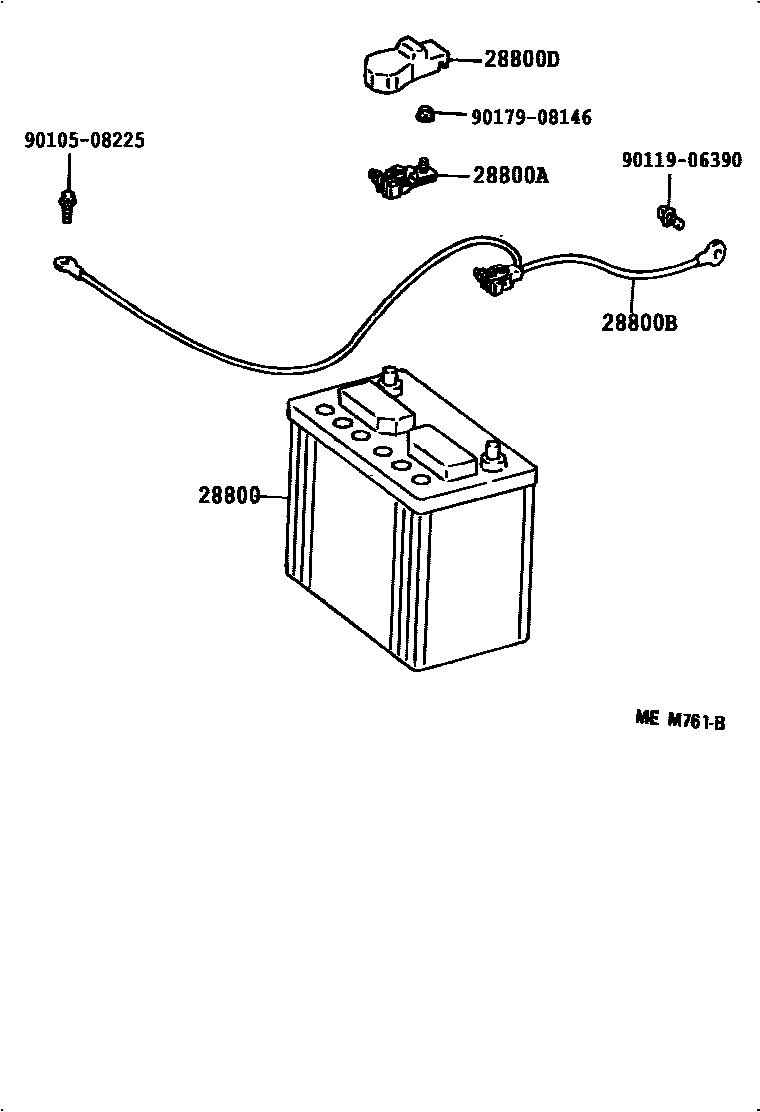

7 parts on this diagram · 1 diagram in section
