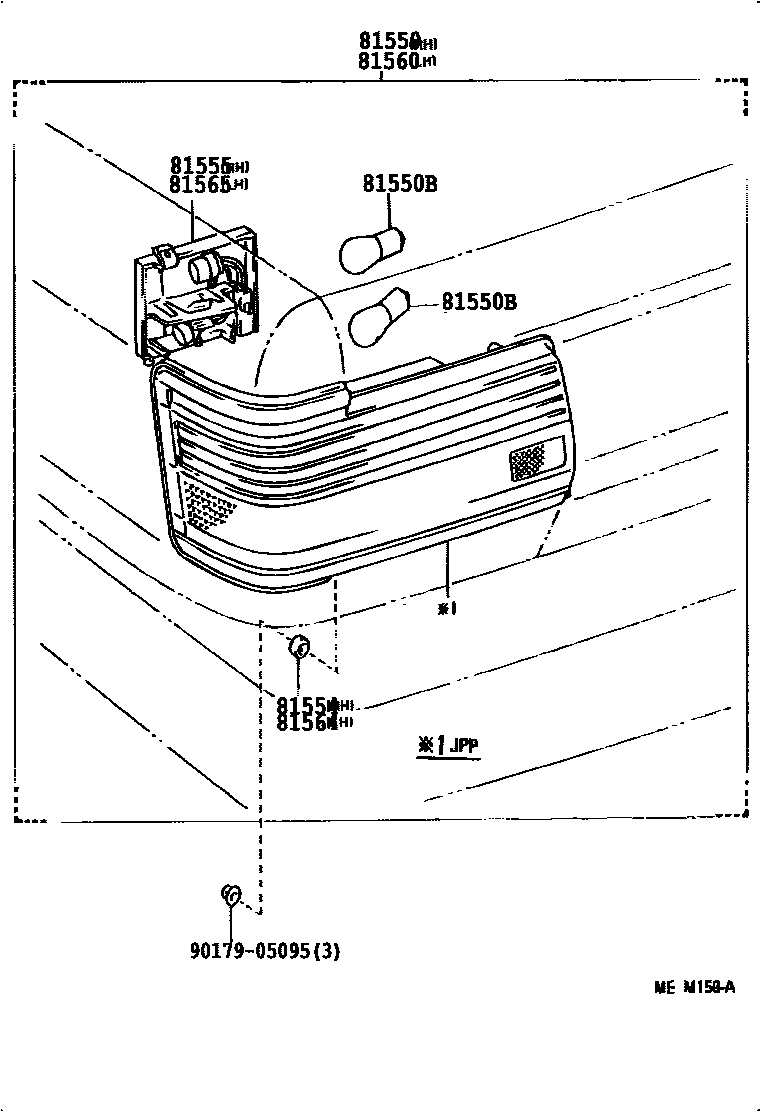

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-03011iSV21,VZV21198807-199003

main81550-03021iSV21,VZV21199003-199109

81550BBULB(FOR REAR COMBINATION LAMP)

main90081-81003×2iSV21,VZV21198807-199109

12V 27/8W

main90081-81004×2iSV21,VZV21198807-199109

12V 27W

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81558-03010×2iSV21,VZV21198807-199003

main81558-03020×2iSV21,VZV21199003-199109

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-03010iSV21,VZV21198807-199003

main81555-03020iSV21,VZV21199003-199109

81560LAMP ASSY, REAR COMBINATION, LH

main81560-03011iSV21,VZV21198807-199003

main81560-03021iSV21,VZV21199003-199109

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81558-03010×2iSV21,VZV21198807-199003

main81558-03020×2iSV21,VZV21199003-199109

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-03010iSV21,VZV21198807-199003

main81565-03020iSV21,VZV21199003-199109

9017905095

main90179-05095

8 parts on this diagram · 1 diagram in section
