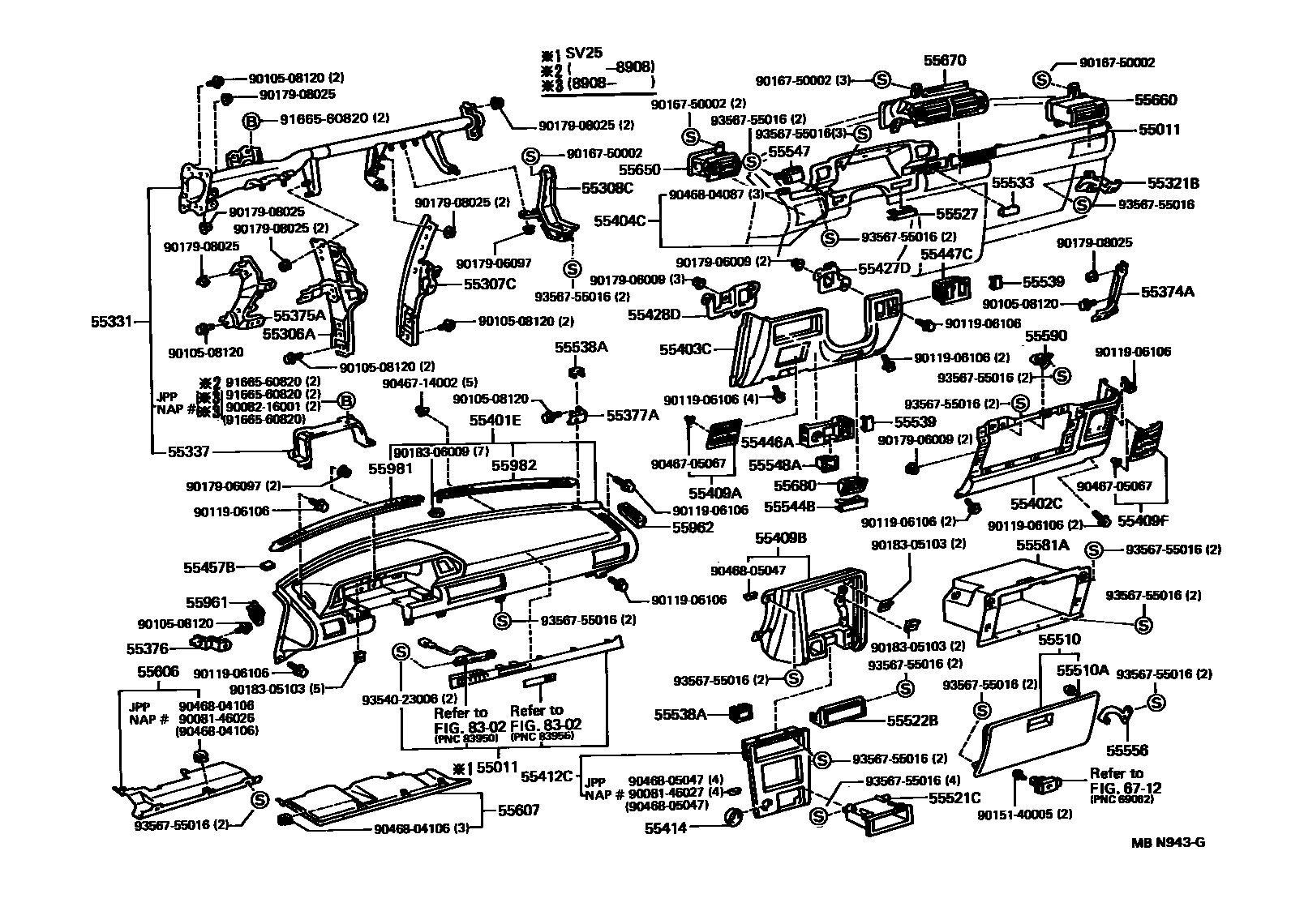

INSTRUMENT PANEL & GLOVE COMPARTMENT
55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55321BBRACKET, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55337REINFORCEMENT, INSTRUMENT PANEL SUB
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55409BPAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
55414BEZEL, CIGAR LIGHTER HOLE
55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1
55428DRETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2
55446ABASE, SWITCH HOLE, NO.1
55447CBASE, SWITCH HOLE, NO.2
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55510DOOR ASSY, GLOVE COMPARTMENT
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55521CCOVER, STEREO OPENING
55522BCOVER, RADIO TUNER OPENING
55527COVER, TRANSMISSION CONTROL SWITCH HOLE
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55533COVER, AUTO CLOCK HOLE
55538ACOVER, COOLER SWITCH HOLE
55539COVER, SPARE SWITCH HOLE
55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55547COVER, REMOTE CONTROL MIRROR HOLE
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55548ACOVER, INSTRUMENT PANEL HOLE
55556ARM, GLOVE COMPARTMENT DOOR CHECK
55581ACOMPARTMENT, GLOVE
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55961NOZZLE, SIDE DEFROSTER, NO.1
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55962NOZZLE, SIDE DEFROSTER, NO.2
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55982GARNISH, DEFROSTER NOZZLE, NO.2
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
6712LOCK CYLINDER SET
8302INDICATOR
9008146026
main90081-46026
9008146027
main90081-46027
9008216001
main90082-16001
9010508120
main90105-08120
9011906106
main90119-06106
9015140005
main90151-40005
9016750002
main90167-50002
9017906009
main90179-06009
9017906097
main90179-06097
9017908025
main90179-08025
9018305103
main90183-05103
9018306009
main90183-06009
9046705067
main90467-05067
9046714002
main90467-14002
9046804087
main90468-04087
9046804106
main90468-04106
9046805047
main90468-05047
9166560820
main91665-60820
9354023006
main93540-23006
9356755016
main93567-55016
71 parts on this diagram · 1 diagram in section
