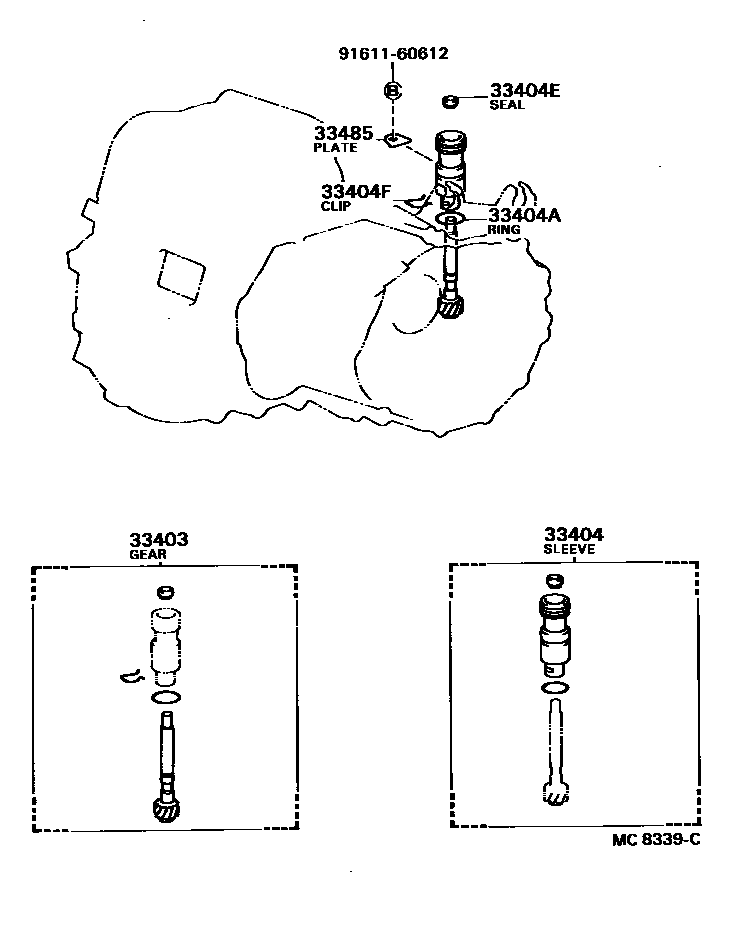

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1E52,E56F2,E56F5

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39145iSV21..5F198807-199109

N=22,MARK 22:27

main33403-39215iVZV21..5F198909-199102

N=29,MARK 29:35

sub33403-39216

main33403-39216iVZV21..5F199102-199109

N=29,MARK 29:35

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iSV21..5F198807-199109

main33404-17010iVZV21..5F198909-199109

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iSV21..5F198807-199109

main96721-24030iVZV21..5F198909-199109

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iSV21..5F198807-199109

main90310-09003iVZV21..5F198909-199109

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iSV21,VZV21..5F198807-199109

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iSV21..5F198807-199109

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
