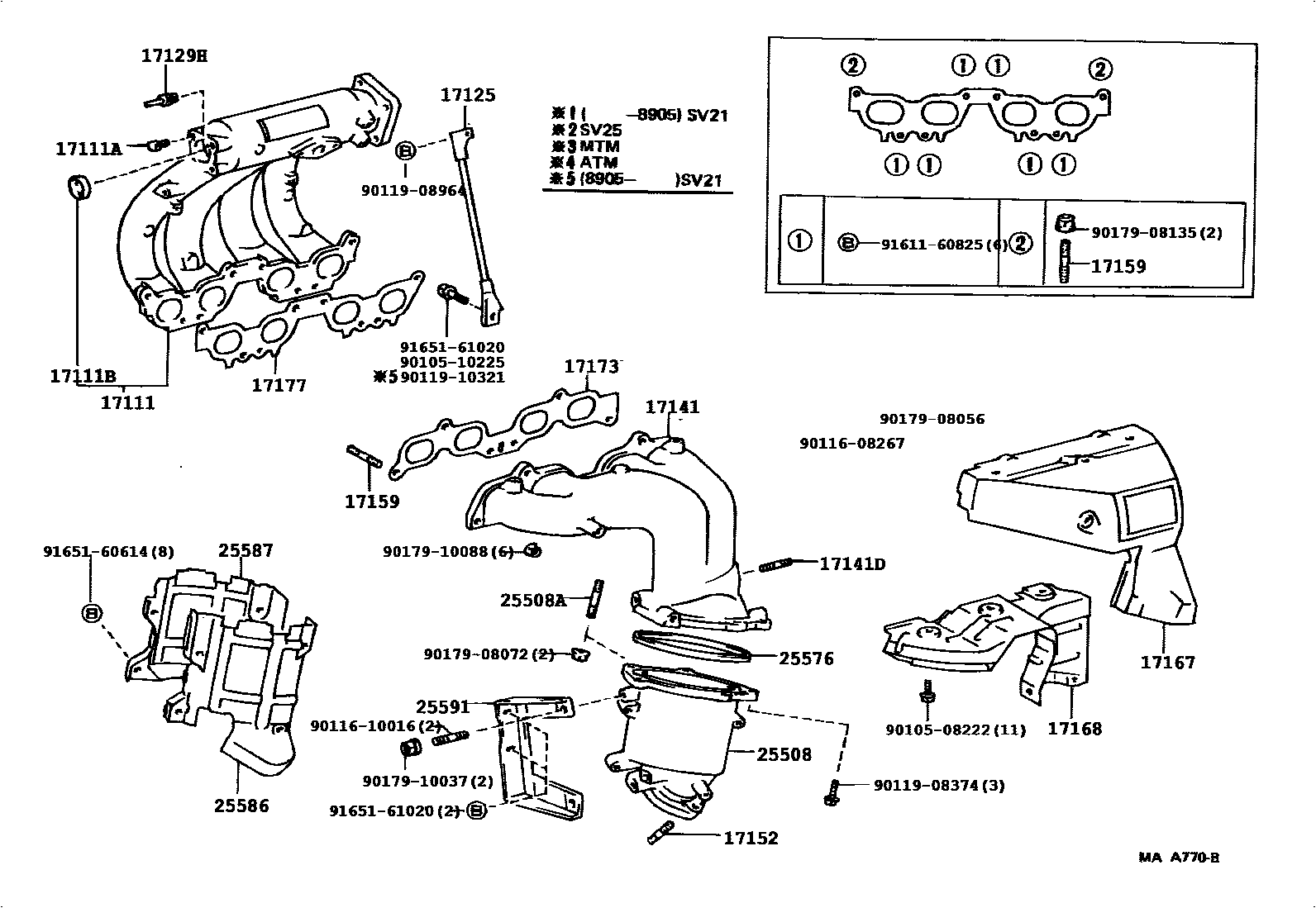

MANIFOLD
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17125STAY, SURGE TANK, NO.1
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE
EXHAUST SIDE
INTAKE SIDE
INTAKE SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25508CONVERTER SUB-ASSY, MANIFOLD
CALIFORNIA SPEC
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25576GASKET, MANIFOLD CONVERTER
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
25591BRACKET, MANIFOLD SUPPORT
9010508222
main90105-08222
9010510225
main90105-10225
9011608267
main90116-08267
9011610016
main90116-10016
9011908374
main90119-08374
9011908964
main90119-08964
9011910321
main90119-10321
9017908056
main90179-08056
9017908072
main90179-08072
9017908135
main90179-08135
9017910037
main90179-10037
9017910088
main90179-10088
9161160825
main91611-60825
9165160614
main91651-60614
9165161020
main91651-61020
35 parts on this diagram · 2 diagrams in section
