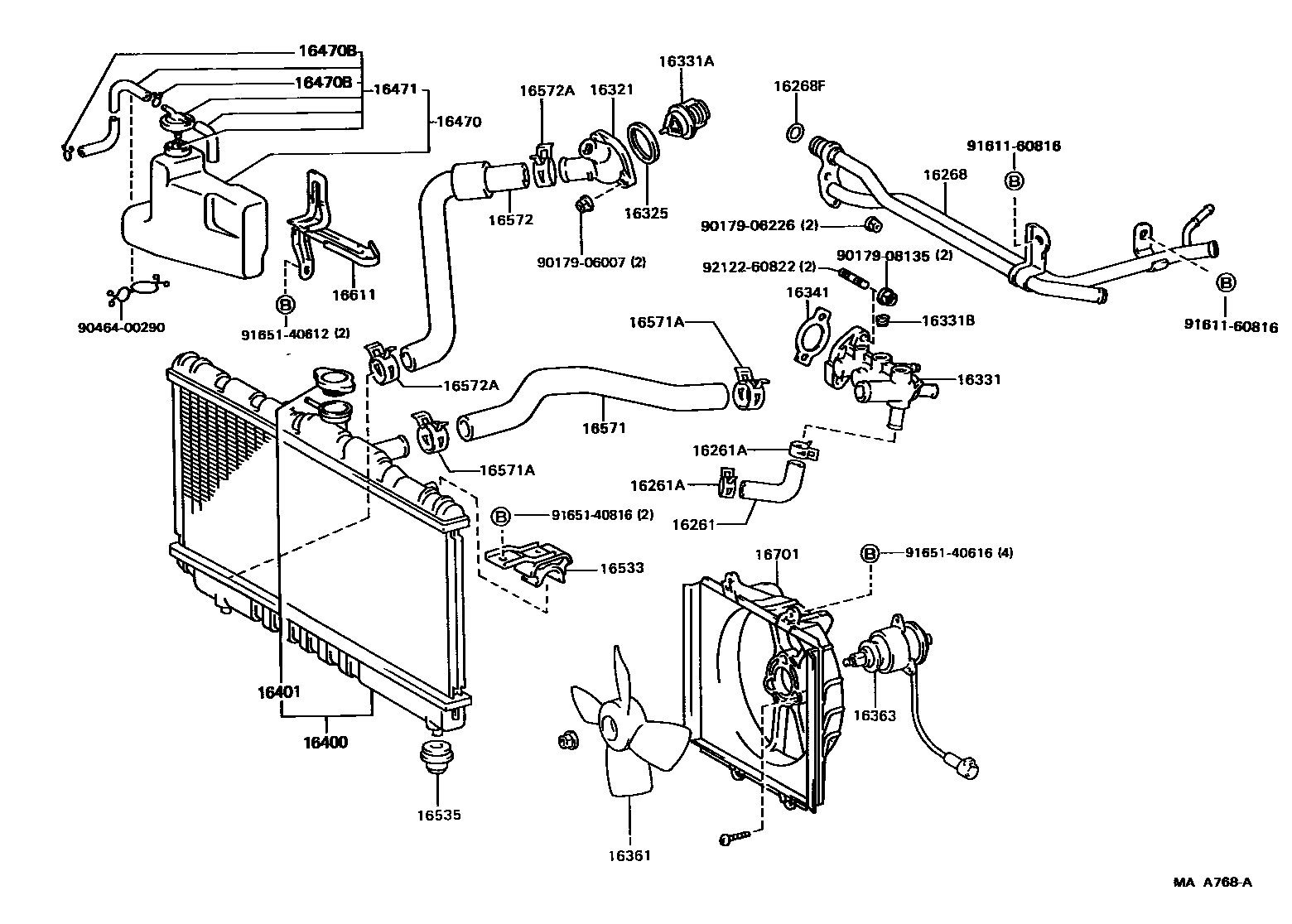

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main16261-03030i3SFE..SV21198910-199109

main16261-62010i2VZFE..VZV21198909-199109

main16261-74010i3SFE..SV21198807-199109

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22003i3SFE..SV21198807-199109

sub90467-21010

main96135-41300i2VZFE..VZV21198909-199109

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-03030i3SFE..SV21198910-199109

main16268-62010i2VZFE..VZV21198909-199104

sub16268-62011

main16268-62011i2VZFE..VZV21199104-199109

main16268-74010i3SFE..SV21198807-199109

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i3SFE..SV21198807-199109

16321INLET, WATER

main16321-03020i3SFE..SV21198910-199109

main16321-62010i2VZFE..VZV21198909-199109

main16321-88360i3SFE..SV21198807-199109

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i2VZFE..VZV21198909-199109

main16325-63010i3SFE..SV21198807-199109

sub16325-63011

16331OUTLET, WATER

main16304-03030i3SFE..SV21198910-199109

main16304-74030i3SFE..SV21198807-199109

main16331-62011i2VZFE..VZV21198909-199109

16331ATHERMOSTAT

main90916-03046i3SFE..SV21198807-199109

*WAX 82-95

main90916-03060i3SFE..SV21199106-199109

*WAX 82-95

sub90916-03090

main90916-03075i2VZFE..VZV21198909-199109

*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90345-53007i3SFE..SV21..DX,LE;3SFE..SV21..5F..STD198807-198909

main90345-53009i3SFE..SV21..DX,LE;3SFE..SV21..5F..STD198909-199109

16341GASKET, WATER OUTLET

main16341-62020i2VZFE..VZV21198909-199106

sub16341-62030

main16341-62030i2VZFE..VZV21199106-199109

main16341-63010i3SFE..SV21198807-198907

sub16341-63011

main16341-63011i3SFE..SV21198907-199109

sub16341-74020

16361FAN

main16361-03010i3SFE..SV21..5F198807-199109

main16361-03020i3SFE..SV21..4FC198807-199109

main16361-07010i2VZFE..VZV21198909-199109

16363MOTOR, COOLING FAN

main16363-03010i3SFE..SV21..5F198807-199109

main16363-03020i3SFE..SV21..4FC198807-199109

main16363-07010i2VZFE..VZV21198909-199109

16400RADIATOR ASSY

main16400-03012i3SFE..SV21..5F198808-199109

main16400-03021i3SFE..SV21..4FC198808-199109

main16400-07010i2VZFE..VZV21..5F198909-199109

main16400-07020i2VZFE..VZV21..4FC198909-198911

main16400-62060i2VZFE..VZV21..4FC198911-199109

sub16400-62061

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2VZFE..VZV21..5F198807-199109

main16401-72090i2VZFE..VZV21..4FC198911-199109

sub16401-20353

16470TANK ASSY, RADIATOR RESERVE

main16470-03010i3SFE..SV21198807-199109

main16470-62021i2VZFE..VZV21198909-199109

main16470-74040i3SFE..SV21198807-198808

sub16470-74041

main16470-74041i2VZFE..VZV21..4FC198808-199109

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2VZFE..VZV21198909-199109

16471CAP SUB-ASSY, RESERVE TANK

main16405-03010i3SFE..SV21198807-199109

main16405-62011i2VZFE..VZV21..5F198909-199109

main16405-74030i3SFE..SV21198807-198808

sub16405-74031

main16405-74031i3SFE..SV21198808-199109

sub16405-62011

16533SUPPORT, RADIATOR, UPPER

main16533-64071i2VZFE..VZV21198909-199109

main16533-74040i3SFE..SV21198807-199109

16535SUPPORT, RADIATOR, LOWER

main16535-62010i2VZFE..VZV21..4FC198911-199109

main16535-64021i2VZFE..VZV21198909-199109

main16535-74030i3SFE..SV21198807-199109

16571HOSE, RADIATOR, INLET

main16571-03020i3SFE..SV21198910-199109

main16571-62010i2VZFE..VZV21198909-199109

main16571-74050i3SFE..SV21198807-199109

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i3SFE..SV21198807-199109

sub90467-34003

main90467-37002i2VZFE..VZV21198909-199109

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-03020i3SFE..SV21198910-199109

main16572-62010i2VZFE..VZV21198909-199109

main16572-74050i3SFE..SV21198807-199109

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i3SFE..SV21198807-199109

sub90467-34003

main90467-34003i2VZFE..VZV21198909-199109

sub90467-34004

16611BRACKET, RADIATOR RESERVE TANK

main16611-74030i3SFE..SV21198807-199109

16701SHROUD SUB-ASSY, FAN

main16711-03010i3SFE..SV21..5F198807-199109

main16711-03020i3SFE..SV21..4FC198807-199109

main16711-07010i2VZFE..VZV21198909-199109

9017906007

main90179-06007

9017906226

main90179-06226

9017908135

main90179-08135

9046400290

main90464-00290

9161160816

main91611-60816

9165140612

main91651-40612

9165140616

main91651-40616

9165140816

main91651-40816

9212260822

main92122-60822

34 parts on this diagram · 3 diagrams in section
