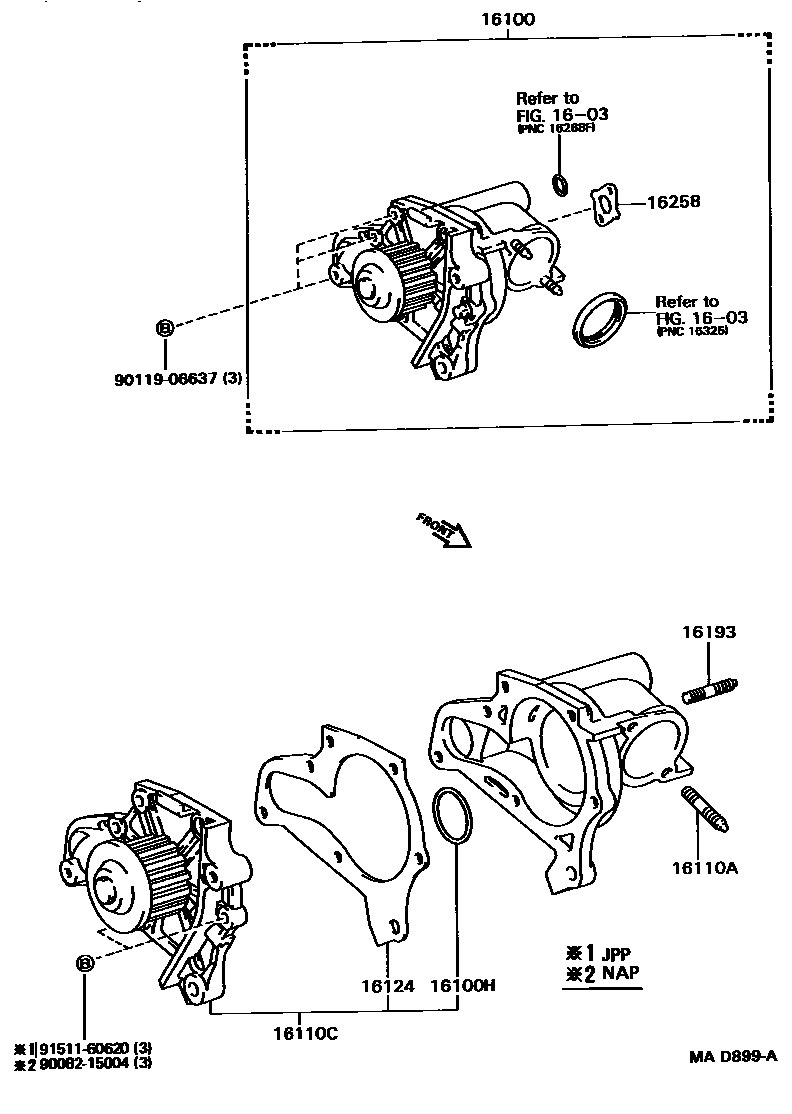

WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09030i3SFE..SV21198908-199109

main16100-69206i2VZFE..VZV21198909-199105

main16100-69305i2VZFE..VZV21199105-199109

main16100-79075i3SFE..SV21198807-199103

main16100-79185i3SFE..SV21199103-199109

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SFE..SV21198808-199109

main96711-24037i3SFE..SV21198807-198808

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-03010×2i3SFE..SV21198908-199109

USA SOURCE

main16193-63010×2i3SFE..SV21198807-199109

16110CPUMP ASSY, WATER, W/O COVER

main16110-09010i3SFE..SV21198912-199109

main16110-79025i3SFE..SV21198807-199109

16124GASKET, WATER PUMP COVER

main16124-03010i3SFE..SV21198908-199109

USA SOURCE

main16124-74020i3SFE..SV21198809-199109

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i3SFE..SV21198807-199109

main90080-11042×2i3SFE..SV21198908-199109

USA SOURCE

16258GASKET(FOR HEATER RETURN)

main16258-15011i3SFE..SV21198807-198907

main16258-74020i3SFE..SV21198907-199109

9008215004

main90082-15004

9011906637

main90119-06637

9151160620

main91511-60620

11 parts on this diagram · 3 diagrams in section
