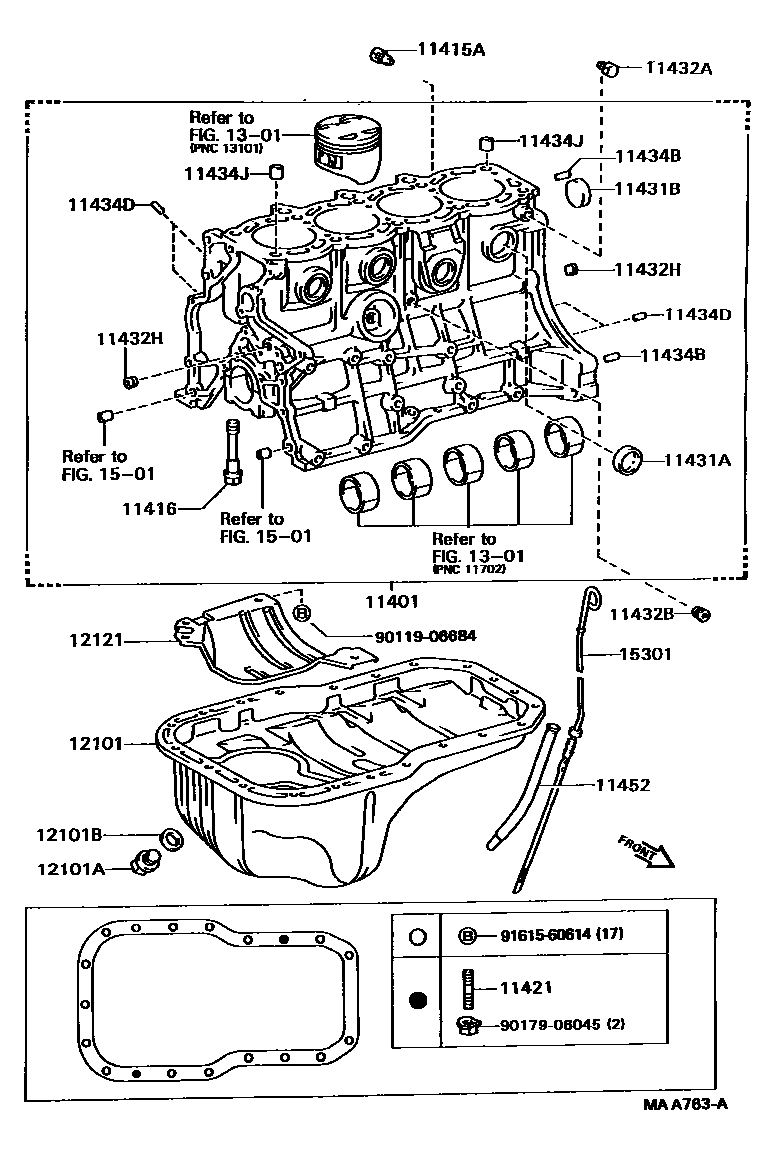

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-69385i2VZFE..VZV21198909-199109

sub11401-69386

main11401-79295i3SFE..SV21198807-198906

sub11401-79296

sub90915-03001

main11401-79296i3SFE..SV21198906-199005

sub11401-79297

main11401-79297i3SFE..SV21199005-199109

sub11401-79298

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SFE..SV21198807-199109

main96431-23814i2VZFE..VZV21198909-199109

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i3SFE..SV21198807-199109

main90910-02072i2VZFE..VZV21198909-199109

sub90910-02176

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i2VZFE..VZV21198909-199105

main90116-06022i3SFE..SV21198807-199109

main90116-06119i2VZFE..VZV21199105-199109

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i3SFE..SV21198807-199109

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i3SFE..SV21198807-199109

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i3SFE..SV21198807-199008

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-52003i3SFE..SV21198807-199109

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53006i3SFE..SV21199012-199109

main90344-53008i3SFE..SV21198807-199007

main90344-53015i3SFE..SV21198909-199109

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i3SFE..SV21198807-199109

L=22,OD=10

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3SFE..SV21198807-199109

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i3SFE..SV21198807-199109

main90253-16001i2VZFE..VZV21198909-199109

11452GUIDE, OIL LEVEL GAGE

main11452-03010i3SFE..SV21198910-199109

main11452-62010i2VZFE..VZV21198909-199109

main11452-74030i3SFE..SV21198807-199109

sub11452-74031

12101PAN SUB-ASSY, OIL

main12101-03020i3SFE..SV21198911-199109

main12101-62030i2VZFE..VZV21198909-199105

sub12101-62031

main12101-62031i2VZFE..VZV21199105-199109

main12101-74022i3SFE..SV21198807-198908

sub12101-74050

main12101-74050i3SFE..SV21198908-199109

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2VZFE..VZV21198807-199109

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12020i2VZFE..VZV21198909-199105

sub90430-12028

main90430-12024i3SFE..SV21198812-198912

sub90430-12028

main90430-12027i3SFE..SV21198912-199109

sub90430-12031

12121PLATE, OIL PAN BAFFLE, NO.1

main12122-62010i2VZFE..VZV21198909-199109

sub12122-62011

main12123-74040i3SFE..SV21198908-199109

main12123-88360i3SFE..SV21198807-198908

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-62020i2VZFE..VZV21198909-199109

main15301-74010i3SFE..SV21198807-199109

9011906684

main90119-06684

9017906045

main90179-06045

9161560614

main91615-60614

23 parts on this diagram · 2 diagrams in section
