STANDARD TOOL

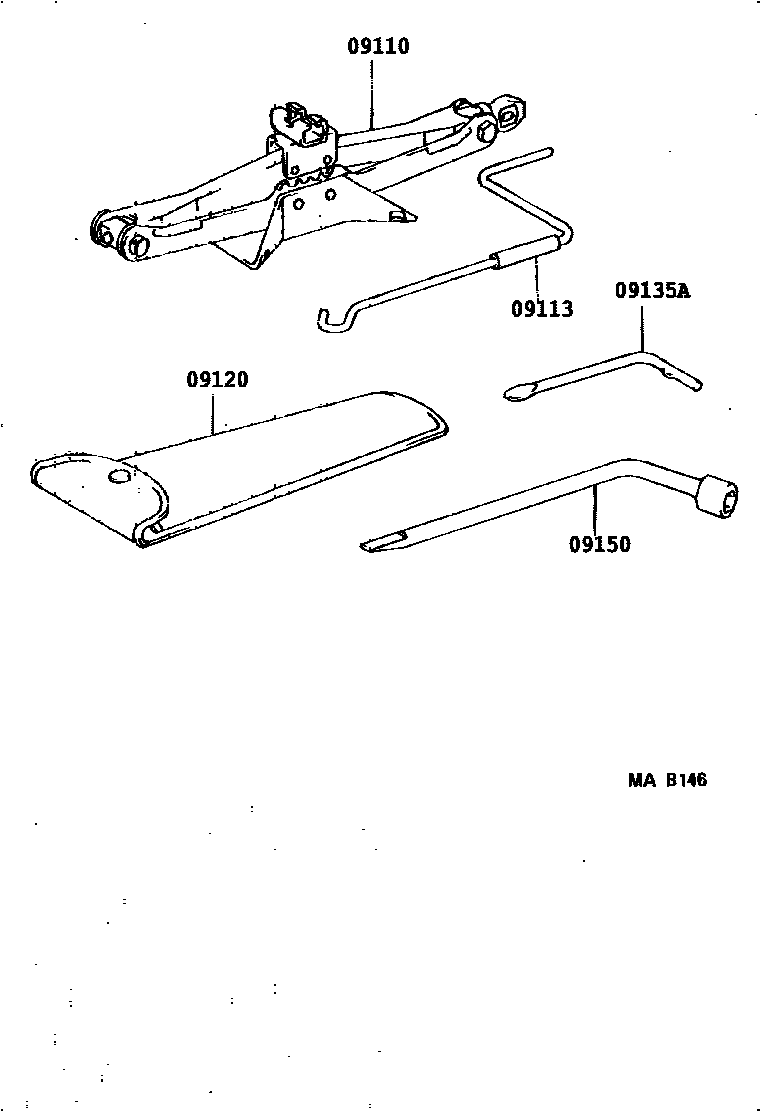

Parts diagram

09110JACK ASSY

main09111-03010i198807-198907

SMP

main09111-03011i198907-199109

SMP

main09111-20060i198807-199007

AISIN

09113HANDLE, JACK

main09113-03010i198807-199109

09120BAG, TOOL

main09120-32010i198807-199109

09135ABIT, SCREW DRIVER

main09135-03010i198807-199109

09150WRENCH, HUB NUT BOX

main09150-03011i198807-199109

5 parts on this diagram · 1 diagram in section
