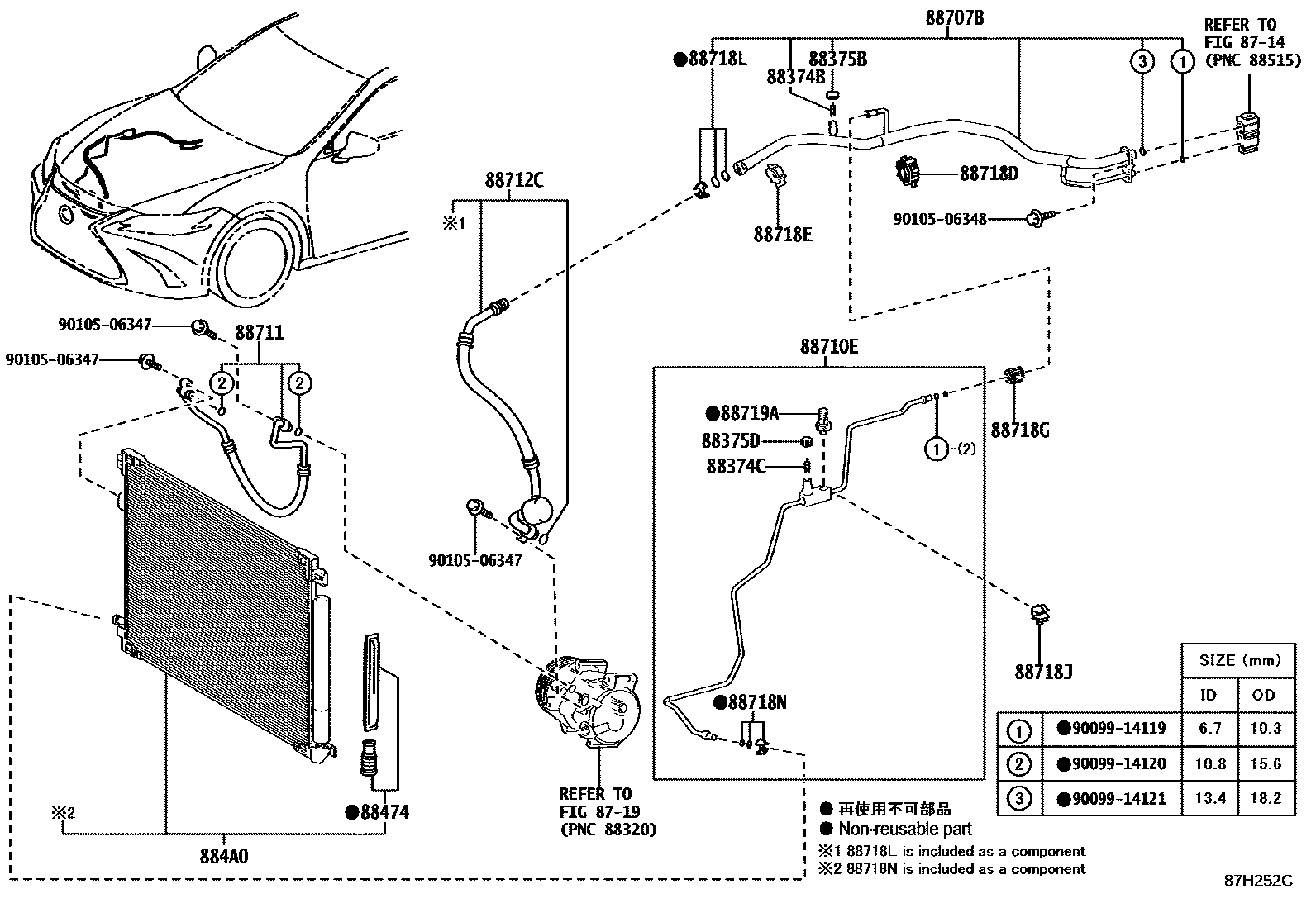

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAXZH1#,GSZ10201806

88374CVALVE, SERVICE, NO.2

main88374-30010iAXZH1#,GSZ10201806

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iAXZH1#,GSZ10201806

main88375-30290iAXZH11201807-202108

KOREA SPEC

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iAXZH1#,GSZ10201806

main88375-30280iAXZH10201807-202008

KOREA SPEC

88474DRYER, COOLER

main88474-12020iAXZH11202108

884A0CONDENSER ASSY, COOLER

main884A0-33050iGSZ10201806

main884A0-33060iAXZH1#201807-202110

88707BTUBE SUB-ASSY, SUCTION, B

main88707-33210iAXZH1#201807

main88710-33530iGSZ10201806

main88707-33190iAXZH10201807-202008

KOREA SPEC

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33540iGSZ10201806

main88710-33600iAXZH1#201807

main88710-33580iAXZH11201807-202108

KOREA SPEC

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33340iAXZH11202108

main88711-33350iGSZ10201806

88712CHOSE, SUCTION

main88704-33630iAXZH11202108

main88704-33640iGSZ10201806

88718DCLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

main88718-33540iGSZ10201806

88718ECLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

main88718-42110iGSZ10201806

88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

main88718-2D150iGSZ10201806

88718JCLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)

main88718-33560iAXZH11202311

main88718-58050iAXZH1#,GSZ10201806

88718LCLAMP, PIPING

main88718-52280iAXZH11202108

88718NCLAMP, PIPING

main88718-1E150iAXZH10201806-202110

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAXZH1#,GSZ10201806

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

24 parts on this diagram · 2 diagrams in section
