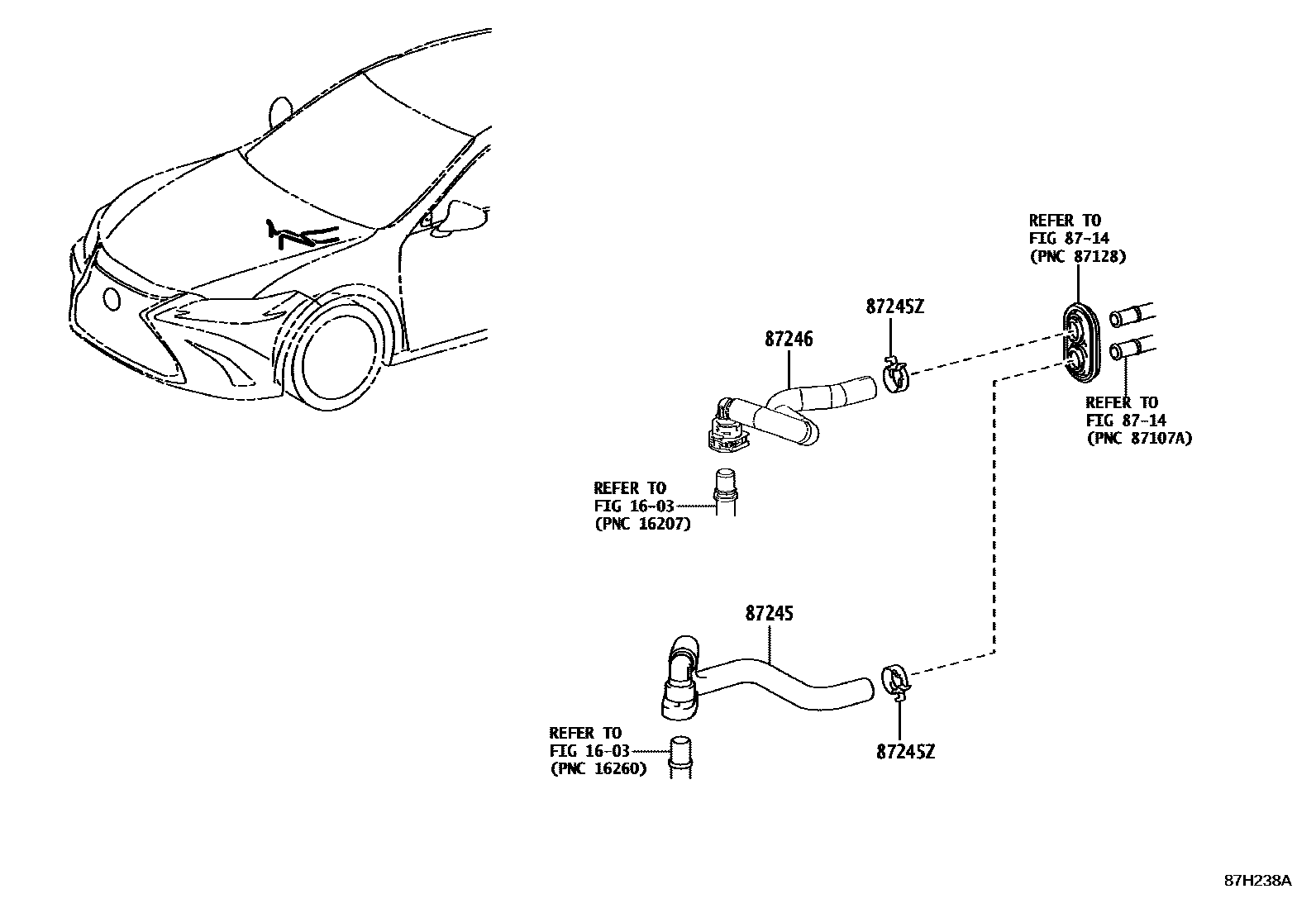

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-33070iAXZH1#201807-202110

main87245-33830iGSZ10201806

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501×2iAXZH1#201807-202110

87246HOSE, HEATER WATER, OUTLET

main87209-33080iAXZH1#201807-202110

main87245-33820iGSZ10201806

5 parts on this diagram · 2 diagrams in section
