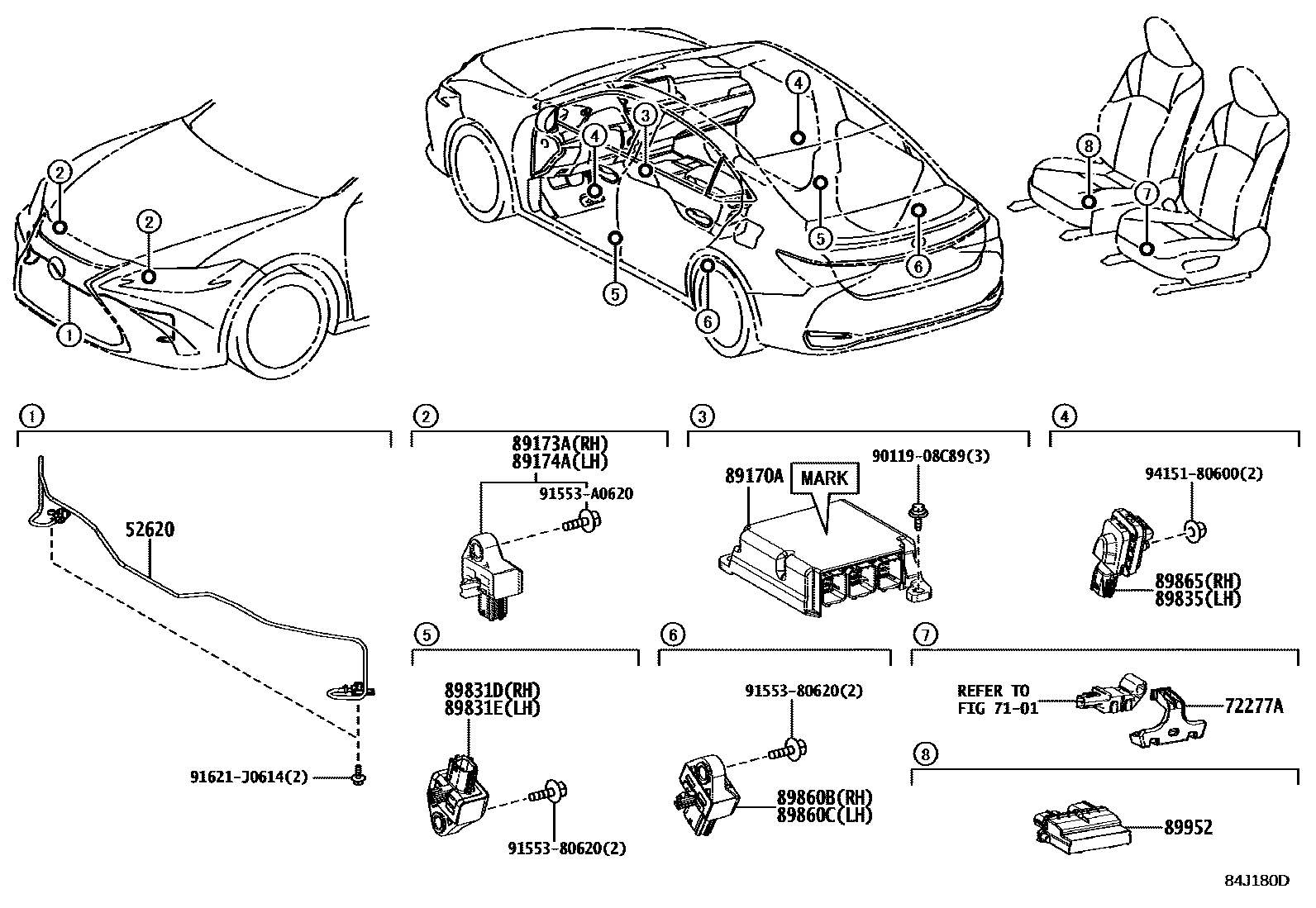

AIR BAG
52620CHAMBER ASSY, PEDESTRIAN DETECTION
7101FRONT SEAT & SEAT TRACK
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170ACOMPUTER ASSY, AIRBAG
P/N LABEL=8917033B90
P/N LABEL=8917033D20
P/N LABEL=8917033K70
KOREA SPEC,P/N LABEL=8917033C80
KOREA SPEC,P/N LABEL=8917033D40
F SPORT,P/N LABEL=8917033E90
F SPORT,P/N LABEL=8917033E91
F SPORT DESIGN,P/N LABEL=8917033T80; F SPORT,P/N LABEL=8917033T80
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831DSENSOR, FLOOR SIDE AIRBAG, RH
89831ESENSOR, FLOOR SIDE AIRBAG, LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
9011908C89
main90119-08C89
9155380620
main91553-80620
91553A0620
main91553-A0620
91621J0614
main91621-J0614
9415180600
main94151-80600
18 parts on this diagram · 1 diagram in section
