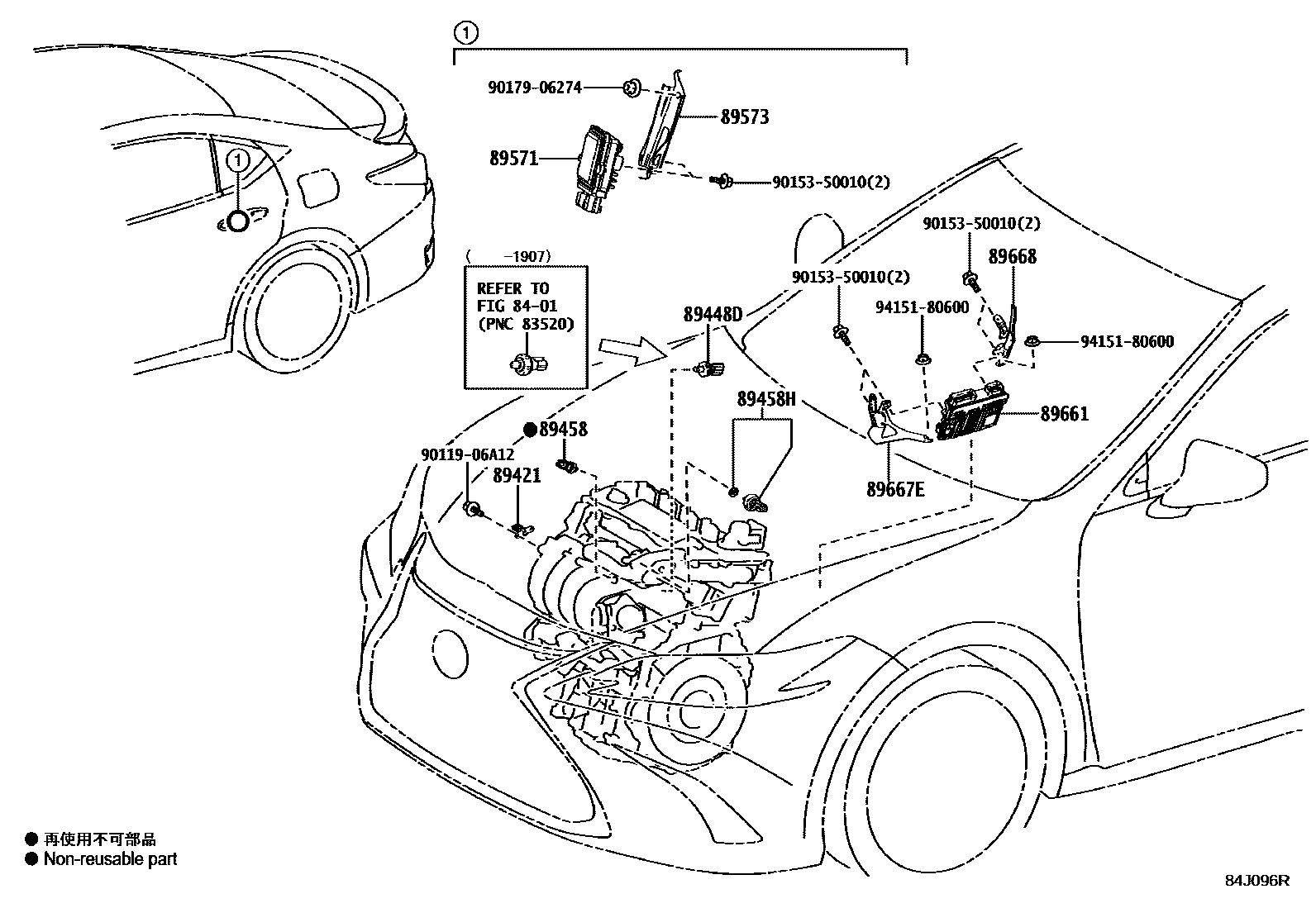

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXZH1#201807

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXZH1#201907

89458SENSOR, FUEL PRESSURE

main89458-33030iAXZH1#201807

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAXZH1#201807

main89458-33042iAXZH11202301

89571COMPUTER, FUEL PUMP CONTROL

main89571-06020iGSZ10201806-201911

(L)

main89571-08010iGSZ10201911

(L)

main89571-33030iAXZH10201807-201911

main89571-42010iAXZH1#201911

main89571-58010iGSZ10201806-201911

(J)

main89571-58020iGSZ10201911

(J)

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-33040iAXZH10,GSZ10201806-201911

main89573-33070iAXZH1#,GSZ10201911

89661COMPUTER, ENGINE CONTROL

main89661-33U90iAXZH10201907-202008

DENSO

main89661-33W70iAXZH10201807-201907

DENSO

main89661-33X40iGSZ10201806-201810

DENSO

main89661-33X41iGSZ10201811-201907

DENSO

main89661-3TA70iGSZ10201907-202008

DENSO

main89661-3TD80iGSZ10202008

DENSO

main89661-3TE00iAXZH11202008-202108

DENSO

main89661-3TE10iAXZH10202008

DENSO

main89661-3TG20iAXZH11202402

DENSO

main89661-3TJ00iAXZH11202108-202208

DENSO

main89661-3TK10iAXZH11202208-202402

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33200iAXZH1#201807

main89667-33210iGSZ10201806

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33250iAXZH1#201807

main89668-33260iGSZ10201806

9011906A12

main90119-06A12

9015350010

main90153-50010

9017906274

main90179-06274

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
