SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1CONSOLE BOX 0009 1STEERING 0010 1SEAT 0011 1DOOR & ROOF 0012 1FLOOR & LUGGAGE

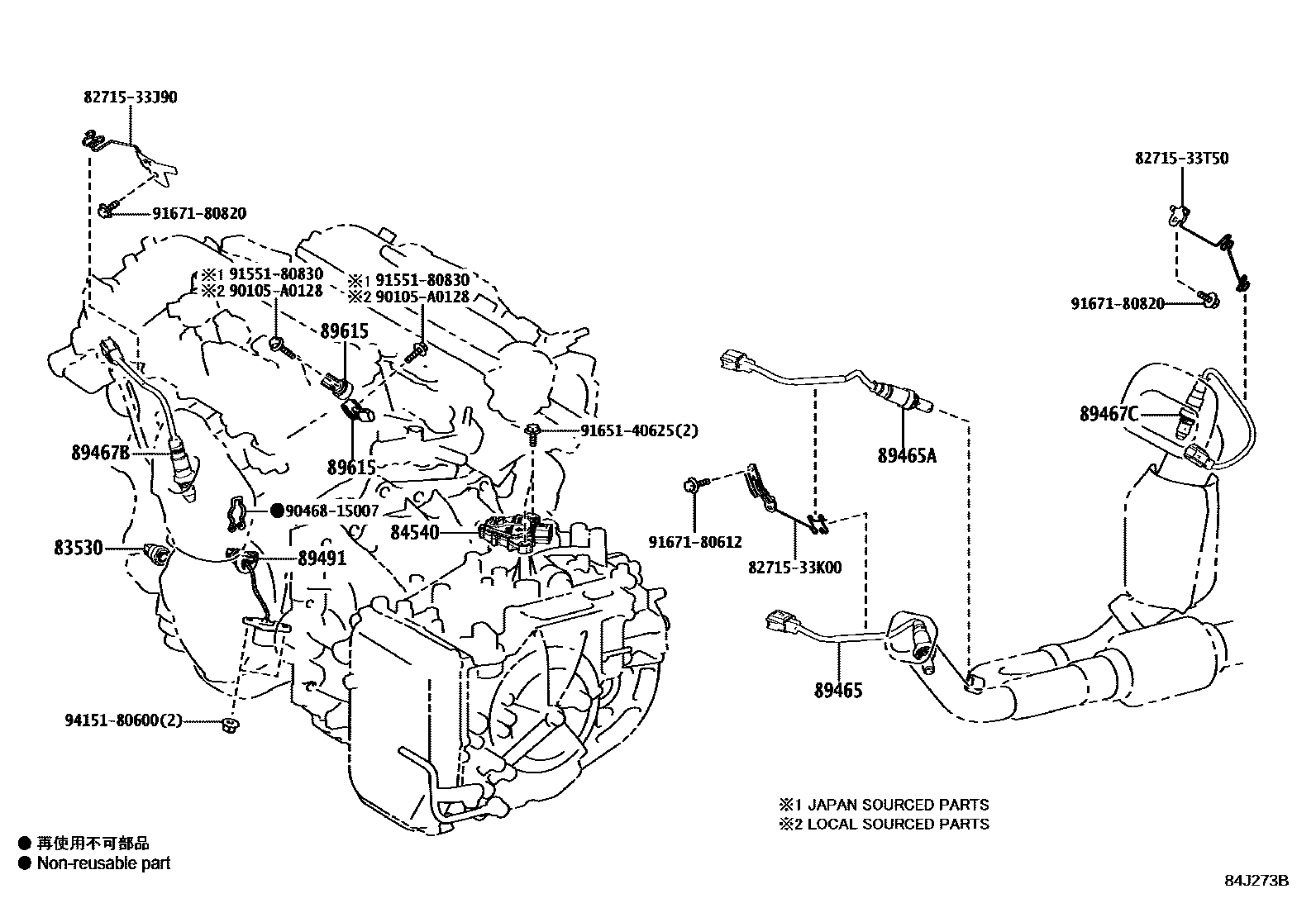

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSZ10201806

DENSO

main83530-60020iGSZ10201806

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33020iGSZ10201806-202107

sub84540-33021

sub35572-48051

main84540-33021iGSZ10202202

89465SENSOR, OXYGEN

main89465-33620iGSZ10201806

89465ASENSOR, OXYGEN NO.2

main89465-33630iGSZ10201806

89467BSENSOR, AIR FUEL RATIO

main89467-33270iGSZ10201806

main89467-33290iAXZH11201807-202110

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-33210iAXZH1#201807-202110

main89467-48320iGSZ10201806

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXZH11201807-202204

sub89491-33052

main89491-33052iAXZH11202205

main89491-48020iGSZ10201806-201808

sub89491-48021

main89491-48021iGSZ10201809-202004

sub89491-48040

main89491-48040iGSZ10202005

sub89491-48041

89615SENSOR, KNOCK CONTROL

main89615-06010iGSZ10201806

(L)

main89615-20090iAXZH1#201807

main89615-20090iGSZ10201806

(J)

8271533J90BRACKET,WIRING HARNESS CLAMP

main82715-33J90

8271533K00BRACKET,WIRING HARNESS CLAMP

main82715-33K00

8271533T50BRACKET,WIRING HARNESS CLAMP

main82715-33T50

90105A0128

main90105-A0128

9046815007

main90468-15007

9155180830

main91551-80830

9165140625

main91651-40625

9167180612

main91671-80612

9167180820

main91671-80820

9415180600

main94151-80600

18 parts on this diagram · 12 diagrams in section
