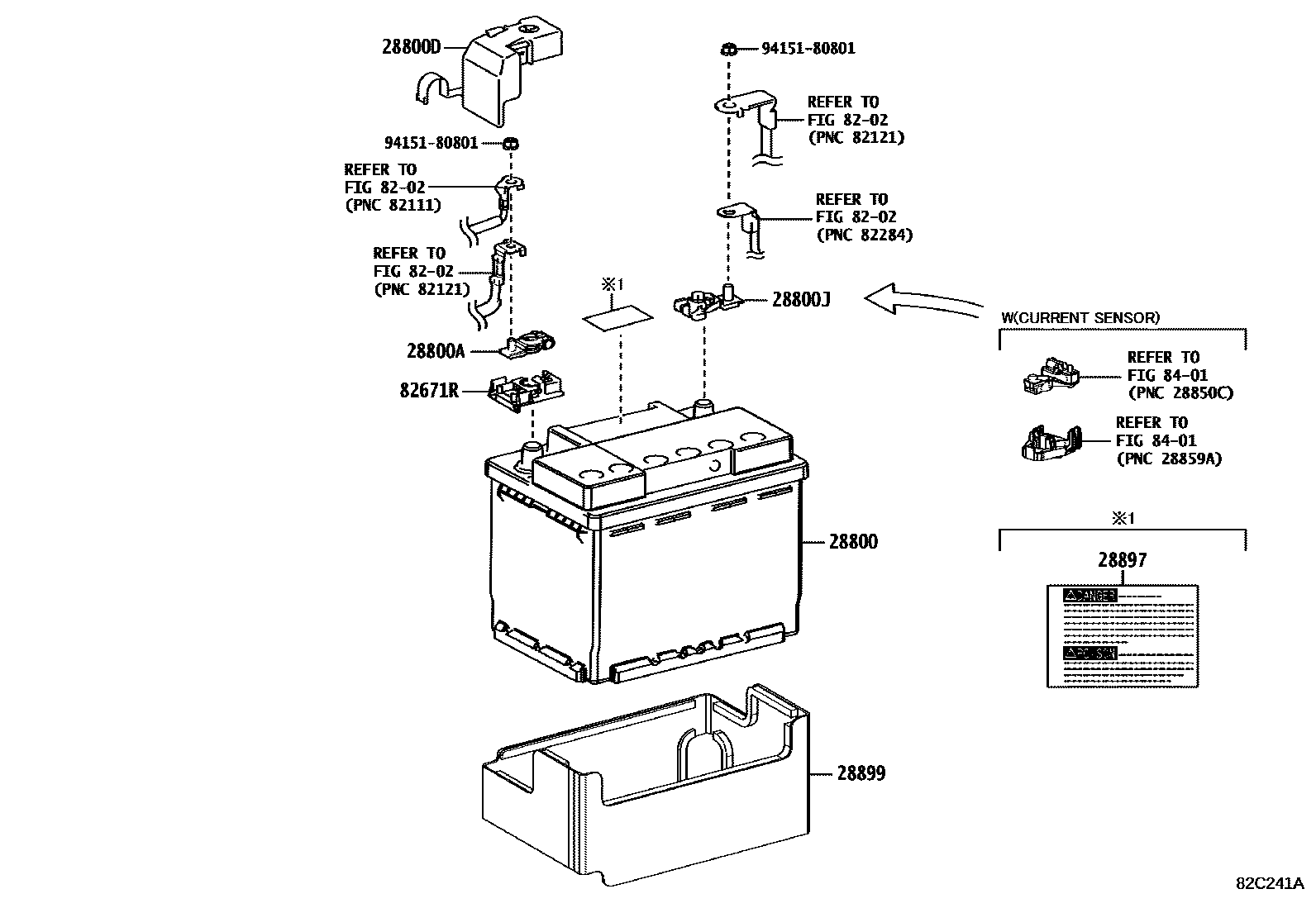

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 1/3 0004 1HV BATTERY 2/3 0005 1HV BATTERY 3/3 0006 1HV BATTERY 1/3 0007 1HV BATTERY 2/3 0008 1HV BATTERY 3/3

28800BATTERY

main28800-31570iA25AFXS..AXZH1#201807-202110

LN2

main28800-31571iA25AFXS..AXZH11202207-202302

LN2

main28800-31572iA25AFXS..AXZH11202303-202402

LN2

main28800-31573iA25AFXS..AXZH11202403

LN2

main28800-38160i2GRFKS..GSZ10201806

LN3

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25AFXS..AXZH1#201807

main90982-05072i2GRFKS..GSZ10201806

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-33020iA25AFXS..AXZH11202108-202208

main82621-33030iA25AFXS..AXZH10201807-201912

main82821-33430i2GRFKS..GSZ10201806

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i2GRFKS..GSZ10201806

28897PLATE, BATTERY CAUTION

main28897-46020iA25AFXS..AXZH10202008

28899INSULATOR, BATTERY

main28899-31240i2GRFKS..GSZ10201806

8202WIRING & CLAMP

→ Go to FIG 82-02

82671RSTOPPER, BATTERY TERMINAL

main82670-33140iAXZH1#201807

main82671-33100iGSZ10201806

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

10 parts on this diagram · 8 diagrams in section
