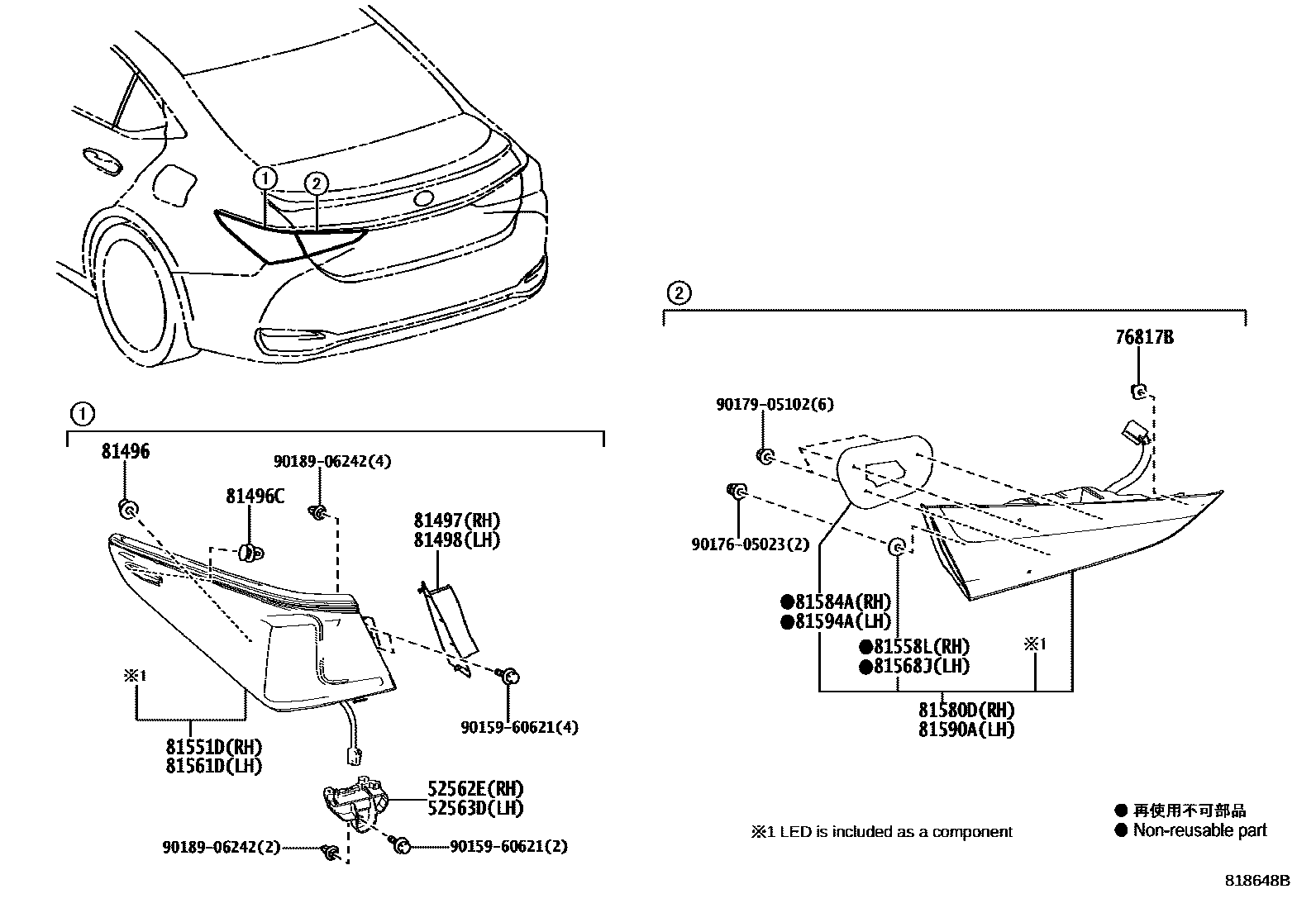

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-33070iAXZH1#,GSZ10201806

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-33050iAXZH1#,GSZ10201806

76817BCLIP, REAR LAMP

main76817-26040iAXZH1#,GSZ10201806

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAXZH1#,GSZ10201806

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAXZH11201806

81497COVER, REAR COMBINATION LAMP, RH

main81497-33030iAXZH11201806

81498COVER, REAR COMBINATION LAMP, LH

main81498-33030iAXZH1#,GSZ10201806

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-33770iAXZH10,GSZ10201806-201908

sub81551-33771

main81551-33771iAXZH1#,GSZ10201908-202104

sub81550-33772

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040iAXZH11201806

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-33770iAXZH10,GSZ10201806-201908

sub81561-33771

main81561-33771iAXZH1#,GSZ10201908-202104

sub81560-33772

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040iAXZH1#,GSZ10201806

81580DLAMP ASSY, REAR, RH

main81580-33480iAXZH10,GSZ10201806-201907

sub81580-33481

main81580-33481iAXZH1#,GSZ10201908-202009

sub81580-33482

main81580-33482iAXZH11202010

81584AGASKET, REAR LAMP RH

main81584-33470iAXZH1#,GSZ10201806

81590ALAMP ASSY, REAR, LH

main81590-33480iAXZH10,GSZ10201806-201907

sub81590-33481

main81590-33481iAXZH1#,GSZ10201908-202009

sub81590-33482

main81590-33482iAXZH1#,GSZ10202010

81594AGASKET, REAR LAMP LH

main81594-33470iAXZH1#,GSZ10201806

9015960621

main90159-60621

9017605023

main90176-05023

9017905102

main90179-05102

9018906242

main90189-06242

19 parts on this diagram · 2 diagrams in section
