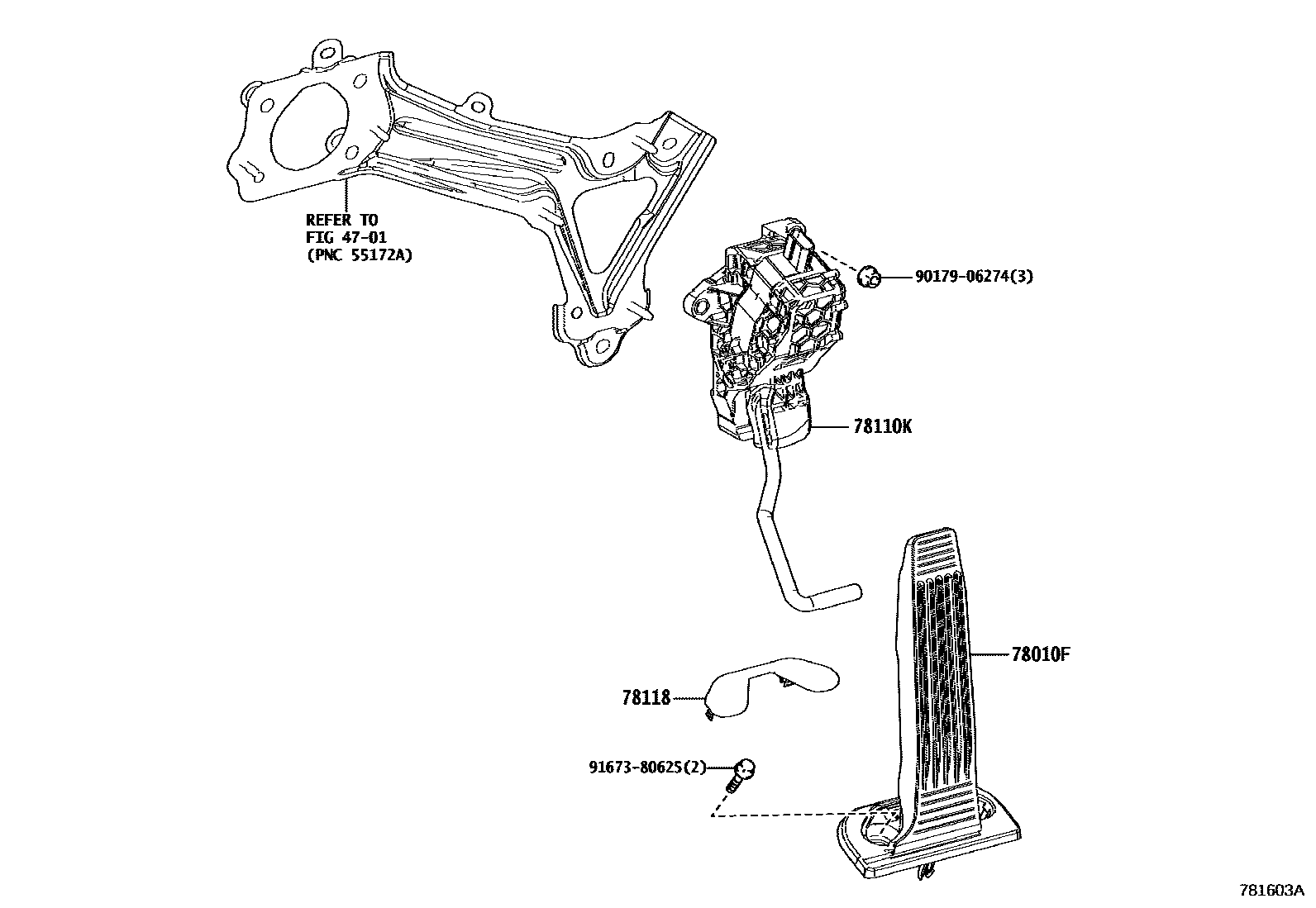

ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-33060iAXZH1#,GSZ10201806

main78101-33070iGSZ10201806

F SPORT

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33130iAXZH1#,GSZ10201806-202009

main78110-33131iAXZH1#,GSZ10202010

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXZH1#,GSZ10201806

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 1 diagram in section
