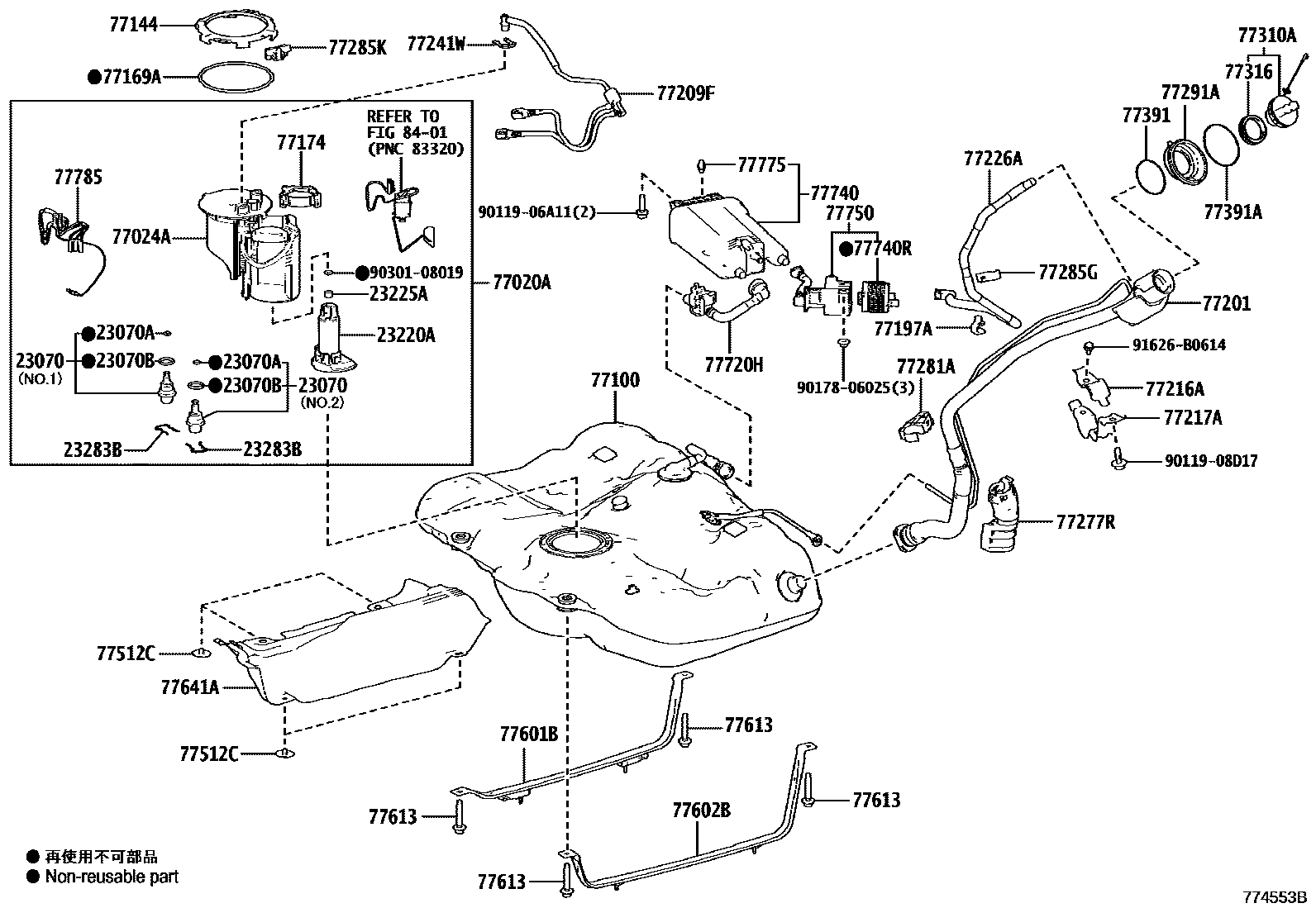

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25AFXS..AXZH1#202001

main23070-31030i2GRFKS..GSZ10201806

NO.1:REFER ILLUST.

main23070-36010iA25AFXS..AXZH10201807-202001

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-04013iA25AFXS..AXZH10201807-202001

23070BRING, O, NO.2(FOR FUEL MAIN VALVE)

main90301-15024×2i2GRFKS..GSZ10201806

23220APUMP ASSY, FUEL W/FILTER

main23220-31330i2GRFKS..GSZ10201806

23225ASPACER, FUEL PUMP

main23225-31010i2GRFKS..GSZ10201806

main23225-31020iA25AFXS..AXZH1#201807

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-24010iA25AFXS..AXZH1#202001

main23283-36010iA25AFXS..AXZH10201807-202001

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-33570iAXZH10201807-201912

main77020-33571iAXZH1#202001-202101

main77020-33580iGSZ10201806

main77020-33590iAXZH1#202102

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33310iAXZH10201807-202001

main77024-33350iGSZ10201806

main77024-33410iAXZH1#202001-202101

main77024-33430iAXZH11202108

77100TANK ASSY, FUEL

main77001-33330iAXZH11202210

main77001-33340iGSZ10201806-201908

main77001-33380iAXZH1#201807

main77001-33480iGSZ10201908

main77001-33570iAXZH11202209

PNC 77241W=TYPE B

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAXZH1#,GSZ10201806

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iAXZH1#,GSZ10201806

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33070iGSZ10201806

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-47010iAXZH10,GSZ10201806

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-33500iGSZ10201806

main77201-33540iAXZH1#201807

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-33170iAXZH10201807-201901

main77209-33171iAXZH1#201902

main77209-33180iGSZ10201806

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33160iAXZH1#,GSZ10201806

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33100iAXZH1#,GSZ10201806

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33180iGSZ10201806

main77226-33220iAXZH11202108

77241WCLIP, TUBE JOINT

main77241-33011iGSZ10201806

main77241-60550×2iAXZH11202209

TYPE B:REFER ILLUST.

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33110iAXZH1#,GSZ10201806

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33080iAXZH1#,GSZ10201806

77281ACLAMP, FUEL FILLER PIPE

main77281-33070iGSZ10201806

main77281-33130iAXZH11202108

77285GCLAMP, FUEL TUBE, NO.1

main77285-47120iAXZH11201806-202108

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iAXZH1#,GSZ10201806

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iAXZH1#,GSZ10201806-202110

77310ACAP ASSY, FUEL TANK

main77300-53030iGSZ10201806

main77300-53040iAXZH1#201807

77316GASKET, FUEL TANK CAP

main77316-75020iAXZH1#,GSZ10201806

77391RING, FUEL INLET BOX

main77391-12020iAXZH11202108

77391ARING, FUEL INLET BOX

main77391-20040iAXZH10,GSZ10201806-201912

main77391-33060iAXZH1#,GSZ10202001-202110

77512CBRACKET, FUEL TANK

main77512-35140×4iGSZ10201806

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33170iGSZ10201806

main77601-33180iAXZH1#201807-202110

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33180iGSZ10201806

main77602-33190iAXZH1#201807-202110

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iAXZH10201806-202110

77641APROTECTOR, FUEL TANK, NO.1

main77606-33030iAXZH1#201807-202110

main77641-33030iGSZ10201806

77720HVALVE ASSY, FUEL OUTLET

main77720-33010iGSZ10201806-201908

77740CANISTER ASSY, CHARCOAL

main77740-33220iGSZ10201806

main77740-33240iAXZH11202108

77740RPUMP SUB-ASSY, LEAK DETECTION

main90910-14008iAXZH11202108

77750CANISTER ASSY, CHARCOAL

main77730-33110iGSZ10201806

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-33010iAXZH11202108

77785HARNESS, FUEL PUMP

main77785-33150iGSZ10201806

main77785-33190iAXZH10201807-202001

main77785-42070iAXZH1#202001

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A11

main90119-06A11

9011908D17

main90119-08D17

9017806025

main90178-06025

9030108019

main90301-08019

91626B0614

main91626-B0614

46 parts on this diagram · 7 diagrams in section
