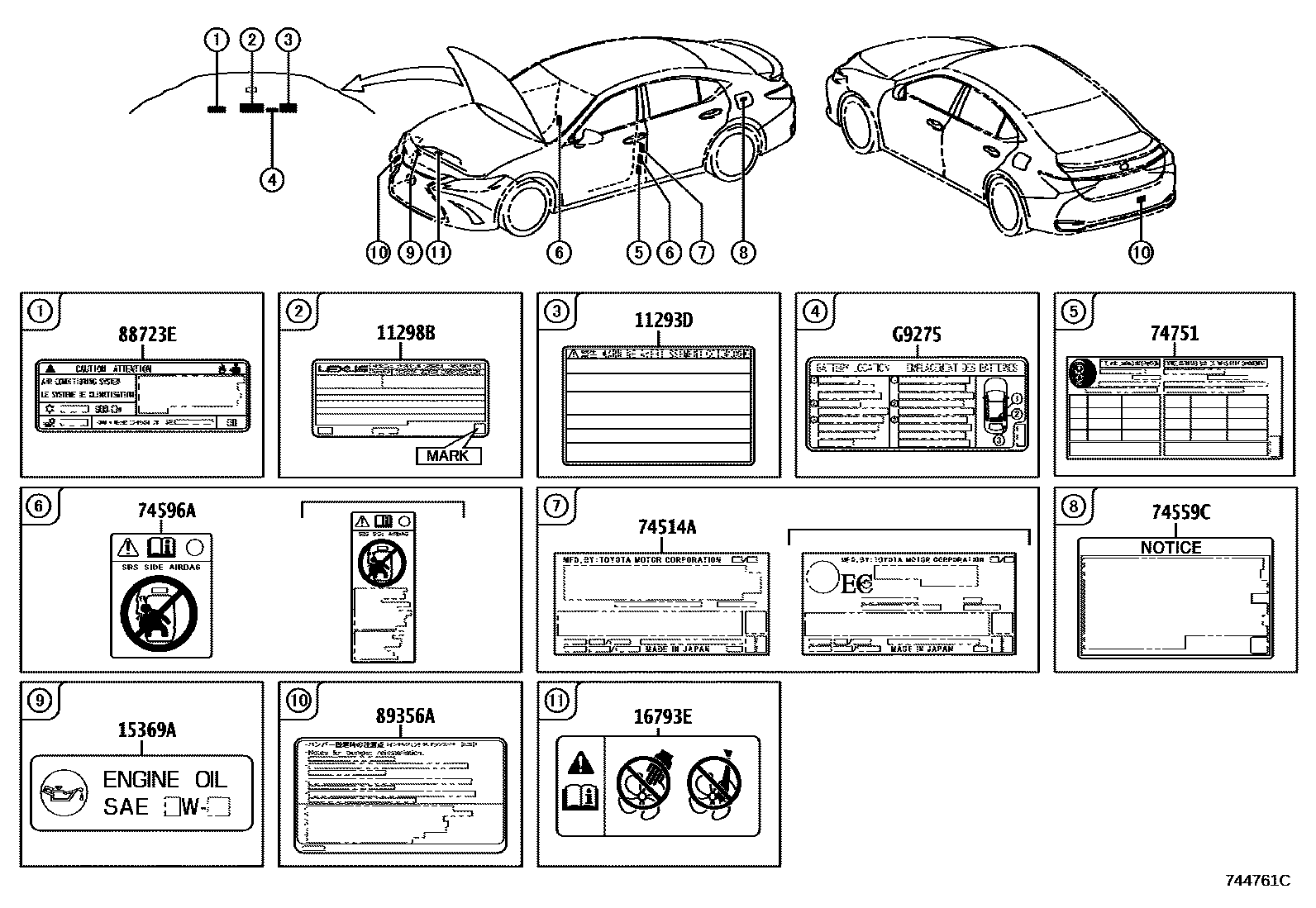

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

11293DLABEL, ENGINE CAUTION

main11293-36070iA25AFXS..AXZH1#201807-202110

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-25050iA25AFXS..AXZH10201807-201907

MARK 3T

main11298-25051iA25AFXS..AXZH10201907-202008

MARK 7X

main11298-25052iA25AFXS..AXZH11202008-202108

MARK B8

main11298-31K90i2GRFKS..GSZ10201806-201907

main11298-31M50i2GRFKS..GSZ10201907-202008

main11298-31N00i2GRFKS..GSZ10202008

15369ALABEL, ENGINE OIL INFORMATION

main15369-25010iA25AFXS..AXZH11201807-202108

main15369-31010i2GRFKS..GSZ10201806

16793ELABEL, COOLING FAN CAUTION

main16793-36030iA25AFXS..AXZH11202108

74514ALABEL, CERTIFICATION REGULATION INFORMATION

main74514-33020supersedes 74514-33010iAXZH10202008

main74514-47010supersedes 74514-33010iAXZH10201807-202008

KOREA SPEC

74559CLABEL, FUEL INFORMATION, NO.2

main74559-33050iAXZH1#201807

74596ALABEL, SIDE AIRBAG CAUTION

main74596-78010×4iAXZH10,GSZ10201806-201909

main74596-53012×4iAXZH10201807-201909

KOREA SPEC

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33J30supersedes 42661-33B80iAXZH11202402

main42661-33E70supersedes 42661-33E60iAXZH1#,GSZ10201806

TIRE & DISC WHEEL-*589; TIRE & DISC WHEEL-*590

main42661-33E80iGSZ10201806

TIRE & DISC WHEEL-235/40R19 ALL SEASON TIRE, FOR F SPORT

main42661-33J40supersedes 42661-33B80iAXZH11202108-202402

TIRE & DISC WHEEL-235/40R19, ALL SEASON TIRE, FOR F SPORT

88723ELABEL, COOLER SERVICE CAUTION

main88723-11020iAXZH1#201807

main88723-33150iGSZ10201806

main88723-33170iAXZH10201807-202008

KOREA SPEC

89356ALABEL, CLEARANCE WARNING INFORMATION

main89356-47020×2iAXZH11202108-202204

G9275LABEL, BATTERY CAUTION, NO.1

mainG927512010iAXZH10201807

mainG927548120iAXZH11202008-202108

11 parts on this diagram · 2 diagrams in section
