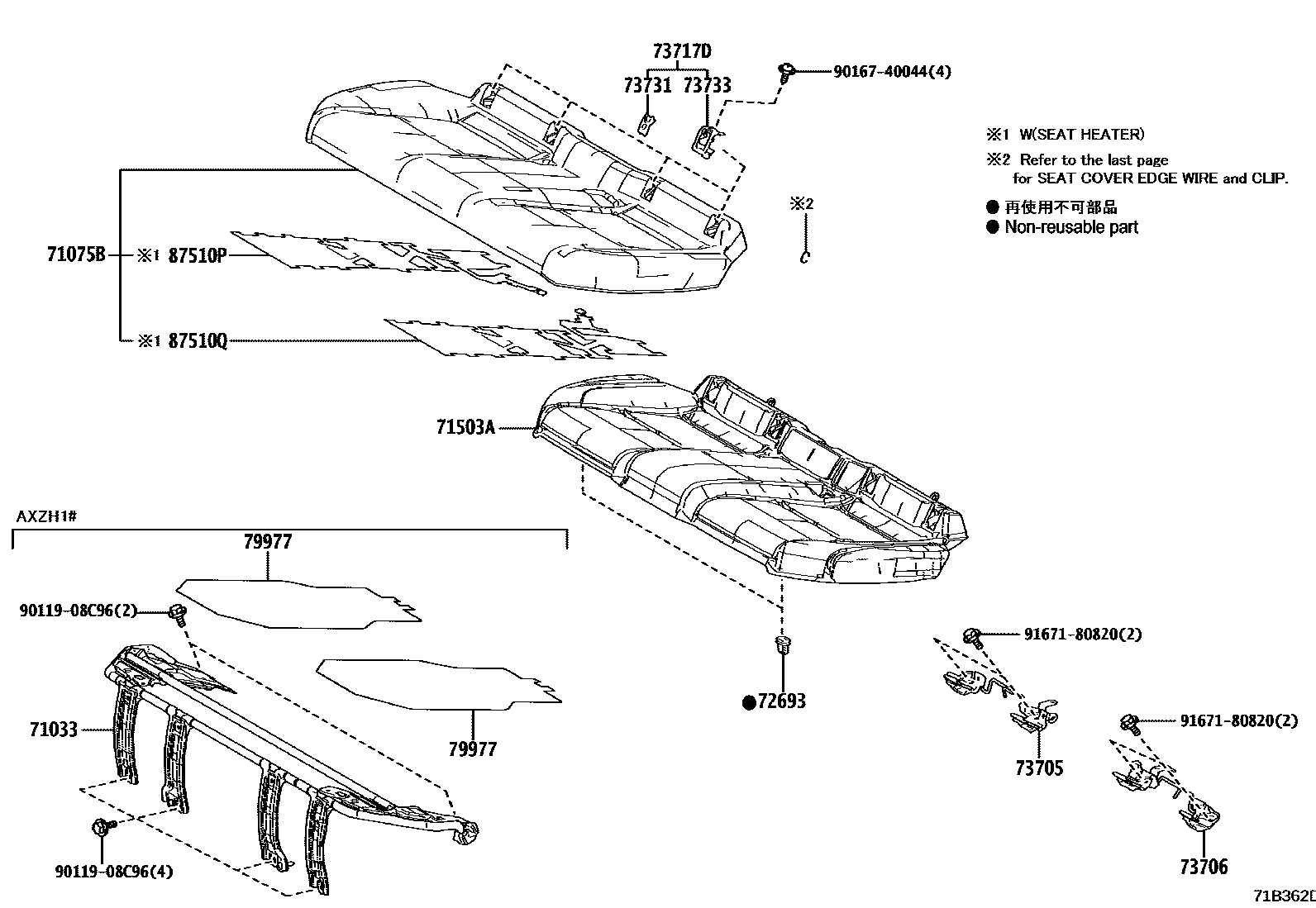

REAR SEAT & SEAT TRACK

71033LEG SUB-ASSY, REAR SEAT CUSHION

main71033-33010i202108

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-33J40-20i202008-202010

BLACK,TRIM20,21,23,24

main71075-33J50-A8i202008

RICH CREAM(SYNITHETIC),TRIM6#

main71075-33J50-B7i201807

CHATEAU,TRIM1#

main71075-33J50-C8i201807

BLACK,TRIM2#

main71075-33J50-E2i201807

TOPAZ BROWN,TRIM5#

main71075-33R50-A1i202108-202208

WHITE,TRIM26

main71075-33R50-C0i202108-202208

BLACK,TRIM21,23,24

main71075-33R50-D0i202108-202208

RED,TRIM25

main71075-33R51-A3i202208-202402

WHITE,TRIM26

main71075-33R51-C1i202402

BLACK,TRIM2#

main71075-33R51-D1i202208-202402

RED,TRIM25

main71075-33J40-C9i201806-202008

BLACK,TRIM2#; CANADA SPEC&F SPORT,BLACK,TRIM20,21,23,24; F SPORT,BLACK,TRIM20,21,23,24

main71075-33J40-D7i201806-202008

CANADA SPEC&F SPORT,RED,TRIM25; F SPORT,RED,TRIM25

main71075-33J40-D8i202008-202010

F SPORT&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),RED,TRIM25

main71075-33J60-B7supersedes 71075-33J40-B8i201806-201903

CANADA SPEC&LUXURY PACKAGE,CHATEAU,TRIM1#; LUXURY PACKAGE,CHATEAU,TRIM1#

main71075-33J60-C8supersedes 71075-33J40-C9i201806-201903

CANADA SPEC&LUXURY PACKAGE,BLACK,TRIM2#; LUXURY PACKAGE,BLACK,TRIM2#

main71075-33J60-F7supersedes 71075-33J40-E2i201806-201903

CANADA SPEC&LUXURY PACKAGE,TOPAZ BROWN,TRIM5#; LUXURY PACKAGE,TOPAZ BROWN,TRIM5#

main71075-33J61-A7supersedes 71075-33J40-A9i202008

LUXURY PACKAGE&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),RICH CREAM,TRIM6#

main71075-33J61-B7i202008

LUXURY PACKAGE&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),CHATEAU,TRIM1#

main71075-33J61-C8supersedes 71075-33J40-C9i201904-202008

CANADA SPEC&LUXURY PACKAGE,BLACK,TRIM2#; LUXURY PACKAGE,BLACK,TRIM2#

main71075-33J61-F7i201904-202008

CANADA SPEC&LUXURY PACKAGE,TOPAZ BROWN,TRIM5#; LUXURY PACKAGE,TOPAZ BROWN,TRIM5#

main71075-33J70-B7i201807-201903

CANADA SPEC&LUXURY PACKAGE,CHATEAU,TRIM1#; LUXURY PACKAGE,CHATEAU,TRIM1#

main71075-33J70-C8i201807-201903

CANADA SPEC&LUXURY PACKAGE,BLACK,TRIM2#; LUXURY PACKAGE,BLACK,TRIM2#

main71075-33J70-F7i201807-201903

CANADA SPEC&LUXURY PACKAGE,TOPAZ BROWN,TRIM5#; LUXURY PACKAGE,TOPAZ BROWN,TRIM5#

main71075-33J71-A7i202008

LUXURY PACKAGE,RICH CREAM,TRIM6#

main71075-33J71-B7i201904-202008

CANADA SPEC&LUXURY PACKAGE,CHATEAU,TRIM1#

main71075-33J71-C8i202008-202108

LUXURY PACKAGE&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#

main71075-33J71-F7i201904

LUXURY PACKAGE,TOPAZ BROWN,TRIM5#

main71075-33K00-B7i201807-201903

CANADA SPEC&ULTRA LUXURY PACKAGE,CHATEAU,TRIM1#; ULTRA LUXURY PACKAGE,CHATEAU,TRIM1#

main71075-33K00-C8i201807-201903

CANADA SPEC&ULTRA LUXURY PACKAGE,BLACK,TRIM2#; ULTRA LUXURY PACKAGE,BLACK,TRIM2#

main71075-33K00-F7i201807-201903

CANADA SPEC&ULTRA LUXURY PACKAGE,TOPAZ BROWN,TRIM5#; ULTRA LUXURY PACKAGE,TOPAZ BROWN,TRIM5#

main71075-33K01-A7i202008

ULTRA LUXURY PACKAGE,RICH CREAM,TRIM6#

main71075-33K01-B7i201904-202008

CANADA SPEC&ULTRA LUXURY PACKAGE,CHATEAU,TRIM1#

main71075-33K01-C8i202008-202108

ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#

main71075-33K01-F7i202008-202108

ULTRA LUXURY PACKAGE&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#

main71075-33K20-B7i201807-201903

KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),CHATEAU,TRIM1#

main71075-33K20-C8i201807-201903

KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM2#

main71075-33K20-F7i201807-201903

KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),TOPAZ BROWN,TRIM5#

main71075-33K21-A7i202008-202108

KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT HEATER-WITH(*DRP & *RES) & VENTILATION(*DRP),RICH CREAM,TRIM6#

main71075-33K21-B7i201904-202008

KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),CHATEAU,TRIM1#

main71075-33K21-C8i202008-202108

KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT HEATER-WITH(*DRP & *RES) & VENTILATION(*DRP),BLACK,TRIM2#

main71075-33K21-F7i201904-202008

KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),TOPAZ BROWN,TRIM5#

main71075-33K30-B6i201807-201903

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),CHATEAU,TRIM1#

main71075-33K30-C6i201807-201903

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM2#

main71075-33K30-F6i201807-201903

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),TOPAZ BROWN,TRIM5#

main71075-33K31-A0i202008-202108

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT HEATER-WITH(*DRP & *RES) & VENTILATION(*DRP),RICH CREAM,TRIM6#

main71075-33K31-B6i201904-202008

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),CHATEAU,TRIM1#

main71075-33K31-C6i202008-202108

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT HEATER-WITH(*DRP & *RES) & VENTILATION(*DRP),BLACK,TRIM2#

main71075-33K31-F6i201904-202008

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),TOPAZ BROWN,TRIM5#

main71075-33S10-A2supersedes 71075-33R50-A2i202108-202208

ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),RICHCREAM,TRIM6#

main71075-33S10-C0i202108-202208

ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM2#

main71075-33S10-E3supersedes 71075-33R50-E2i202108-202208

ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),HAZEL,TRIM4#

main71075-33S10-E5supersedes 71075-33R50-E3i202108-202208

ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),MAUVE,TRIM7#

main71075-33S11-A4supersedes 71075-33R51-A4i202208-202411

ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEATCOVER MATERIAL-LEATHER(SEMI-ANILINE),FROMAGE,TRIM0#

main71075-33S11-C1i202411

ULTRA LUXURY PACKAGE&LIMITED EDITION 25MY&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE),BLACK,TRIM2#

main71075-33S11-E6supersedes 71075-33R51-E5i202208-202411

ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEATCOVER MATERIAL-LEATHER(SEMI-ANILINE),HAZEL,TRIM4#

main71075-33S11-E7i202411

ULTRA LUXURY PACKAGE&LIMITED EDITION 25MY&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE),MAUVE,TRIM7#

main71075-33S20-A2supersedes 71075-33R50-A2i202108-202208

LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),RICH CREAM,TRIM6#

main71075-33S20-C0i202108-202208

LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),BLACK,TRIM2#

main71075-33S20-E3supersedes 71075-33R50-E2i202108-202208

LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),HAZEL,TRIM4#

main71075-33S20-E5supersedes 71075-33R50-E3i202108-202208

LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR),MAUVE,TRIM7#

main71075-33S21-A4supersedes 71075-33R51-A4i202208-202411

LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVERMATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#

main71075-33S21-C1i202411

LUXURY PACKAGE&LIMITED EDITION 25MY&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#

main71075-33S21-D0i202411

LUXURY PACKAGE&LIMITED EDITION 25MY&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVER MATERIAL-LEATHER(SMOOTH),CRIMSON,TRIM3#

main71075-33S21-E6i202411

LUXURY PACKAGE&LIMITED EDITION 25MY&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#

main71075-33S21-E7supersedes 71075-33R51-E4i202208-202411

LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)&SEAT COVERMATERIAL-LEATHER(SMOOTH),MAUVE,TRIM7#

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-33200i201806

main71503-33210i202108

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2i201806

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-33190i201807

main73705-33200i201806

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-33190i202108

main73706-33200i201806

73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-33090-B2×4i201806-201812

CHATEAU,TRIM1#

main73717-33090-C0×4i201806-201812

BLACK,TRIM2#

main73717-33090-F0×4i201806-201812

TOPAZ BROWN,TRIM5#

main73717-33150-A0×4i202108-202208

RICH CREAM,TRIM6#

main73717-33150-A1×4i202108-202402

WHITE,TRIM26

main73717-33150-A2×4i202208

FROMAGE,TRIM0#

main73717-33150-B2×4i201812

CHATEAU,TRIM1#

main73717-33150-C0×4i202402

BLACK,TRIM2#

main73717-33150-D1×4i202108-202402

RED,TRIM25

main73717-33150-E1×4i202108

HAZEL,TRIM4#

main73717-33150-E2×4i202108

MAUVE,TRIM7#

main73717-33150-F0×4i201812

TOPAZ BROWN,TRIM5#

main73717-33090-D0×4i201806-201812

CANADA SPEC&F SPORT,RED,TRIM25; F SPORT,RED,TRIM25

main73717-33150-D0×4i201812-202008

CANADA SPEC&F SPORT,RED,TRIM25; F SPORT,RED,TRIM25

73731COVER, CHILD RESTRAINT SEAT

main73731-33020-A0×4i202008

RICH CREAM,TRIM6#

main73731-33020-A1×4i202108-202402

WHITE,TRIM26

main73731-33020-A2×4i202208

FROMAGE,TRIM0#

main73731-33020-B2×4i201806

CHATEAU,TRIM1#

main73731-33020-C0×4i202108-202402

BLACK,TRIM20,21,22,23,24,3#

main73731-33020-D1×4i202108-202402

RED,TRIM25

main73731-33020-E1×4i202108

HAZEL,TRIM4#

main73731-33020-E2×4i202108

MAUVE,TRIM7#

main73731-33020-F0×4i201806

TOPAZ BROWN,TRIM5#

main73731-33020-D0×4i201806-202008

CANADA SPEC&F SPORT,RED,TRIM25; F SPORT,RED,TRIM25

73733COVER, CHILD RESTRAINT SEAT BASE

main73733-33010-B2×4i201806-201812

CHATEAU,TRIM1#

main73733-33010-C0×4i201806-201812

BLACK,TRIM2#

main73733-33010-F0×4i201806-201812

TOPAZ BROWN,TRIM5#

main73733-33020-A0×4i202008

RICH CREAM,TRIM6#

main73733-33020-A1×4i202108-202402

WHITE,TRIM26

main73733-33020-A2×4i202208

FROMAGE,TRIM0#

main73733-33020-B2×4i201812

CHATEAU,TRIM1#

main73733-33020-C0×4i202108-202402

BLACK,TRIM20,21,22,23,24,3#

main73733-33020-D1×4i202108-202402

RED,TRIM25

main73733-33020-E1×4i202108

HAZEL,TRIM4#

main73733-33020-E2×4i202108

MAUVE,TRIM7#

main73733-33020-F0×4i201812

TOPAZ BROWN,TRIM5#

main73733-33010-D0×4i201806-201812

CANADA SPEC&F SPORT,RED,TRIM25; F SPORT,RED,TRIM25

main73733-33020-D0×4i201812-202008

CANADA SPEC&F SPORT,RED,TRIM25; F SPORT,RED,TRIM25

79977FELT, SEATBACK

main79977-33100×2i202004

87510PHEATER ASSY, SEAT

main87510-33600i201807-202008

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR); KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)

87510QHEATER ASSY, SEAT

main87510-33610i201807-202008

KOREA SPEC&LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR); KOREA SPEC&ULTRA LUXURY PACKAGE&AIR CONDITIONER-3ZONE MODE CONTROL & W(HUMIDITY SENSOR)

9011908C96

main90119-08C96

9016740044

main90167-40044

9167180820

main91671-80820

15 parts on this diagram · 4 diagrams in section
