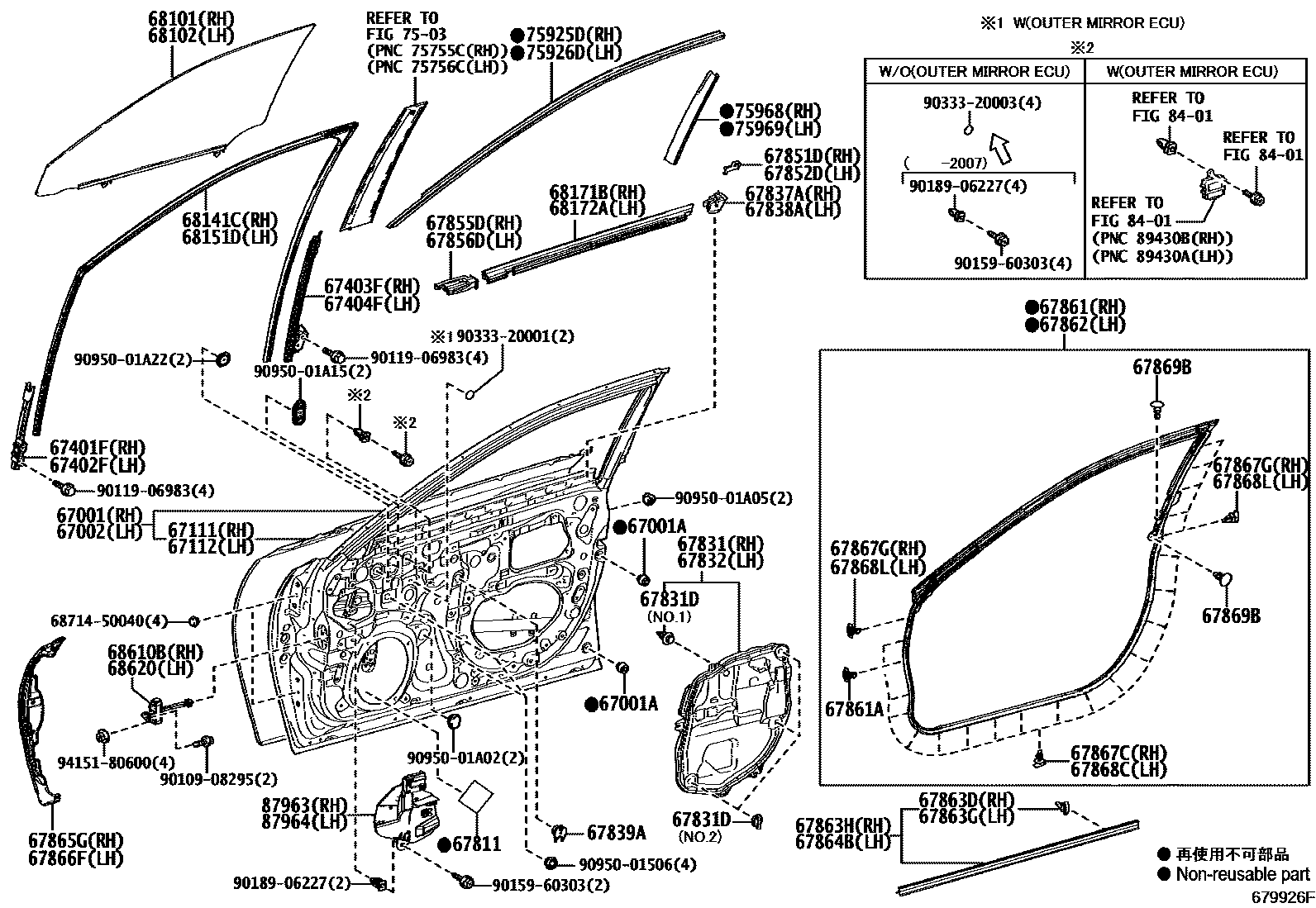

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-33270iAXZH1#,GSZ10201806-202110

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iAXZH1#,GSZ10201806-202110

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-33270iAXZH1#,GSZ10201806-202110

67111PANEL, FRONT DOOR, OUTER RH

main67111-33140iAXZH1#,GSZ10201806-202110

67112PANEL, FRONT DOOR, OUTER LH

main67112-33140iAXZH1#,GSZ10201806-202110

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-33130iAXZH1#,GSZ10201806-202110

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-33130iAXZH11202108

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-33100iAXZH1#,GSZ10201806-202110

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-33100iAXZH1#,GSZ10201806-202110

67811PAD, FRONT DOOR SILENCER

main67811-33080×2iAXZH1#,GSZ10201806-202110

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-33140iAXZH1#,GSZ10201806-202110

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-47010×6iAXZH11202108

NO.2:REFER ILLUST.

main90467-09206×8iAXZH11202108

NO.1:REFER ILLUST.

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-33140iAXZH1#,GSZ10201806-202110

67837ASEAL, FRONT DOOR VENT, RH

main67837-33040iAXZH1#,GSZ10201806-202110

67838ASEAL, FRONT DOOR VENT, LH

main67838-33040iAXZH1#,GSZ10201806-202110

67839ACOVER, FRONT DOOR SERVICE HOLE, LOWER

main67833-47010×2iAXZH1#,GSZ10201806-202110

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-33020iAXZH11202108

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-33020iAXZH1#,GSZ10201806-202110

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-33040iAXZH1#,GSZ10201806-202110

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-33040iAXZH1#,GSZ10201806-202110

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-33140iAXZH1#,GSZ10201806-202110

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52040×2iAXZH1#,GSZ10201806-202110

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-33140iAXZH1#,GSZ10201806-202110

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-12150×8iAXZH1#,GSZ10201806-202010

main67867-52010×8iAXZH11202108

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-12150×8iAXZH1#,GSZ10201806-202010

main67867-52010×8iAXZH1#,GSZ10202010-202110

67863HWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-33050iAXZH1#,GSZ10202010-202110

main67863-33060iAXZH1#,GSZ10201806-202009

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-33050iAXZH1#,GSZ10202010-202110

main67863-33060iAXZH1#,GSZ10201806-202009

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-33020iAXZH1#,GSZ10201806-202110

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-33020iAXZH1#,GSZ10201806-202110

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iAXZH1#,GSZ10201806-202110

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-48030×6iAXZH1#,GSZ10201806-202110

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iAXZH11202108

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-48030×6iAXZH1#,GSZ10201806-202110

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iAXZH1#,GSZ10201806-202110

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-33241iAXZH11202108

main68101-33240supersedes 68101-33280iAXZH1#,GSZ10201806-202011

FRONT SIDE GLASS-UV-CUT & LAMINATED(ACOUSTIC)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-33241iAXZH11202108

main68102-33240supersedes 68102-33280iAXZH1#,GSZ10201806-202011

FRONT SIDE GLASS-UV-CUT & LAMINATED(ACOUSTIC)

68141CRUN, FRONT DOOR GLASS, RH

main68141-33140iAXZH11202108

68151DRUN, FRONT DOOR GLASS, LH

main68151-33140iAXZH1#,GSZ10201806-202110

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-33130iAXZH1#,GSZ10201806-202110

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-33130iAXZH1#,GSZ10201806-202110

68610BCHECK ASSY, FRONT DOOR, RH

main68610-33110iAXZH1#,GSZ10202102-202110

main68610-33140iAXZH10,GSZ10201806-202007

main68610-33141iAXZH1#,GSZ10202008-202101

68620CHECK ASSY, FRONT DOOR, LH

main68610-33140iAXZH10,GSZ10201806-202007

main68610-33141iAXZH1#,GSZ10202008-202101

main68620-33120iAXZH1#,GSZ10202102-202110

7503SIDE MOULDING

→ Go to FIG 75-03

75925DTAPE, BLACK OUT, INNER FRONT RH

main75985-33050iAXZH1#,GSZ10201806-202110

75926DTAPE, BLACK OUT, INNER FRONT LH

main75986-33050iAXZH11202108

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75975-33050iAXZH1#,GSZ10201806-202110

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75976-33050iAXZH11202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-33040iAXZH1#,GSZ10201806

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-33030iAXZH1#,GSZ10201806

6871450040

main68714-50040

9010908295

main90109-08295

9011906983

main90119-06983

9015960303

main90159-60303

9018906227

main90189-06227

9033320001

main90333-20001

9033320003

main90333-20003

9095001506

main90950-01506

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095001A15

main90950-01A15

9095001A22

main90950-01A22

9415180600

main94151-80600

63 parts on this diagram · 2 diagrams in section
