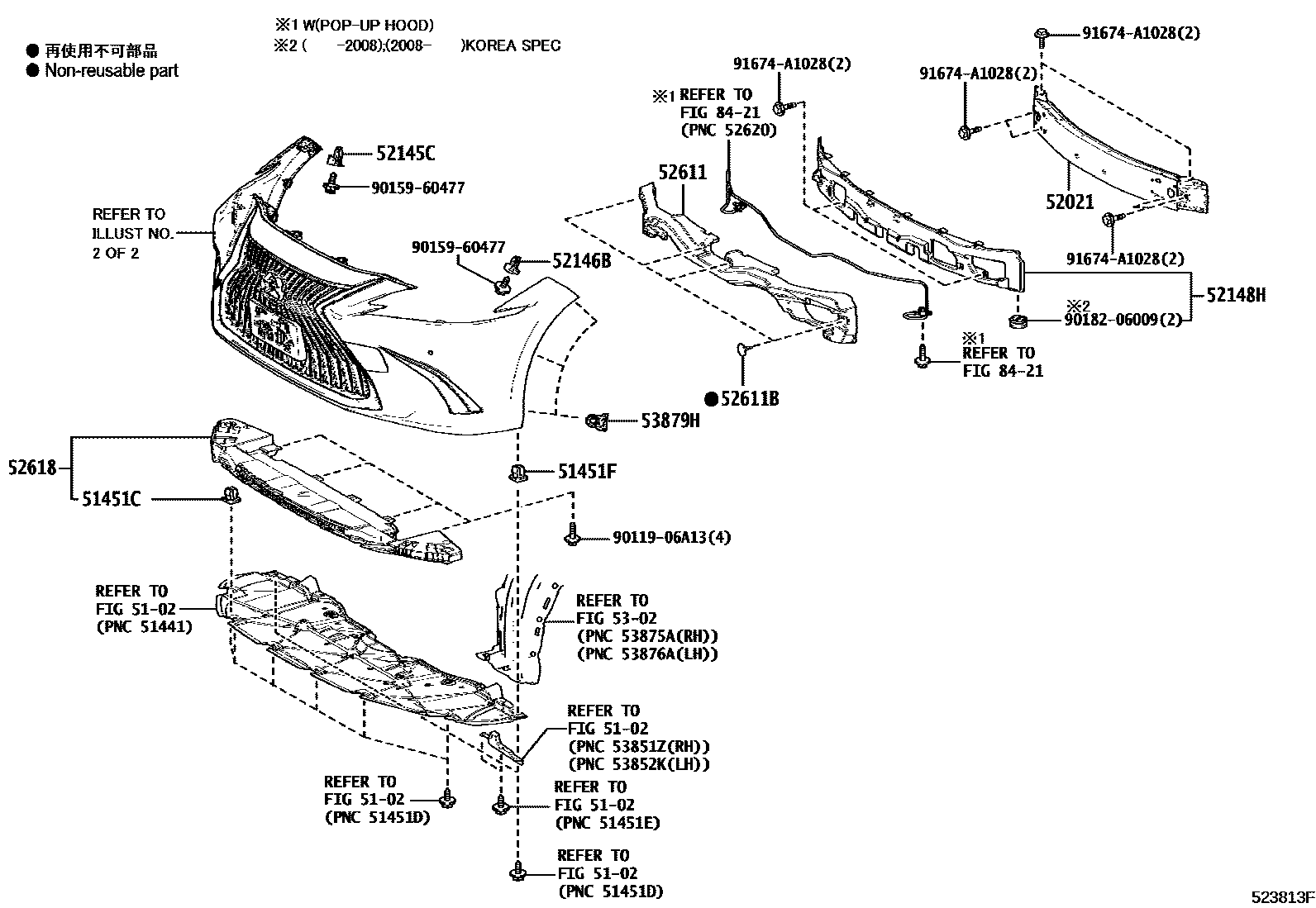

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451CGROMMET(FOR ENGINE UNDER COVER)

main90189-06237×6iAXZH1#,GSZ10201806

51451FGROMMET, NO.1

main90189-06237×2iAXZH1#,GSZ10201806

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-33230iAXZH1#202008

main52021-33240iGSZ10201806

52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-33110iAXZH11202108

52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52146-33110iAXZH11202108

52148HBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-06101supersedes 52148-33040iAXZH1#202008

main52148-33040iAXZH10,GSZ10201806-202003

main52148-33041iAXZH10,GSZ10202004-202008

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33350iAXZH1#,GSZ10201806

main52611-33330iAXZH10201807-202008

KOREA SPEC

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-07049-23×4iAXZH1#,GSZ10201806

BLACK

52618ABSORBER, FRONT BUMPER, LOWER

main52618-33080iAXZH11202108

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

main53879-33030×6iAXZH1#,GSZ10201806

8421AIR BAG

→ Go to FIG 84-21

9011906A13

main90119-06A13

9015960477

main90159-60477

9018206009

main90182-06009

91674A1028

main91674-A1028

17 parts on this diagram · 3 diagrams in section
