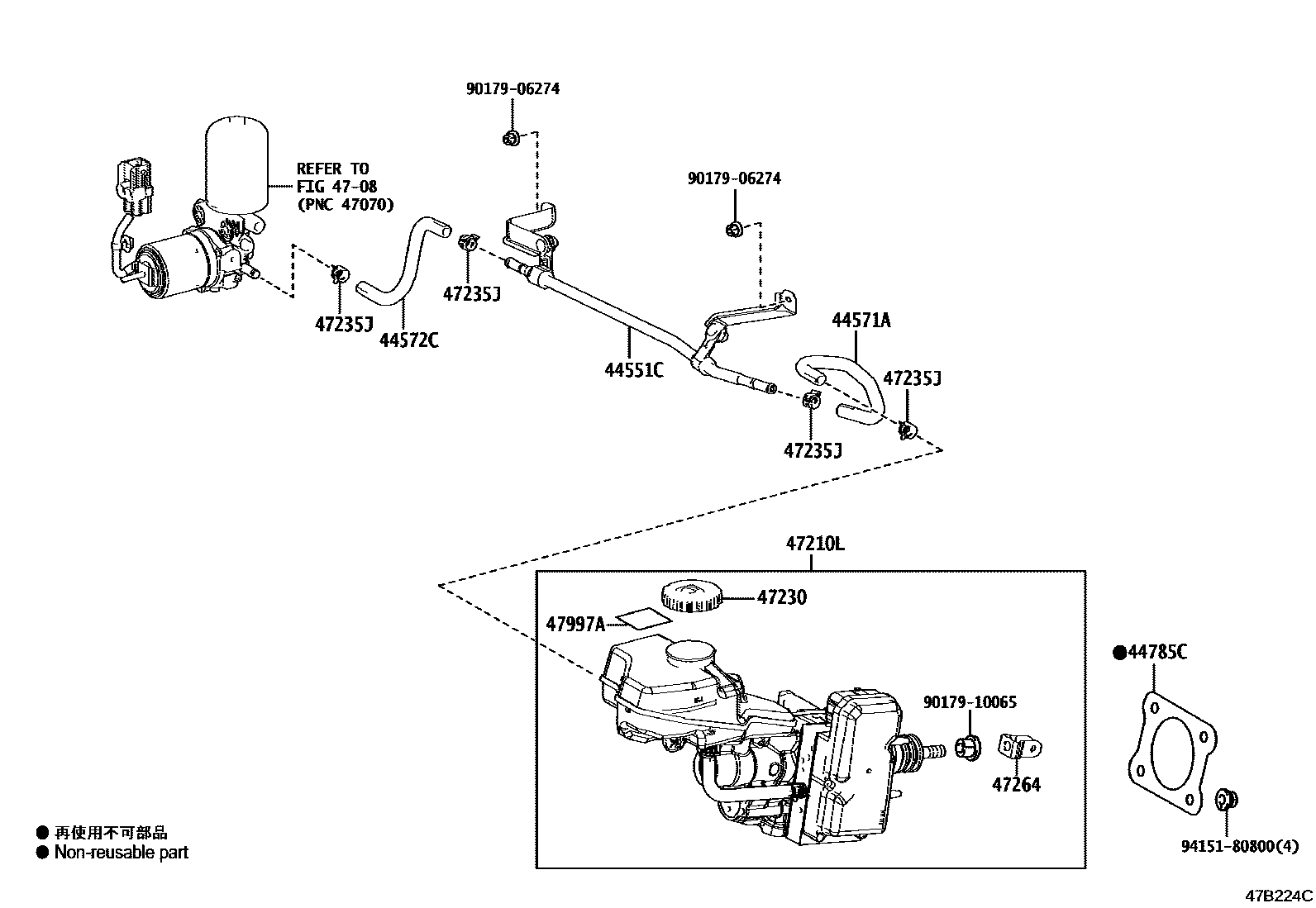

BRAKE MASTER CYLINDER

0001 1 0002 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-33080iAXZH11202108

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-33150iAXZH1#201807

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-33010iAXZH1#201807

44785CGASKET, BRAKE BOOSTER

main44785-12040iAXZH11202108

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-33820iAXZH1#202004

main47050-33850iAXZH10201807-201907

main47050-33860iAXZH10201907-202004

main47050-33A20iAXZH11202108-202208

main47050-33A21iAXZH11202208-202402

main47050-33B80iAXZH11202402

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iAXZH10202002-202008

main47230-47090iAXZH10201806-202002

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501×4iAXZH1#201807

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iAXZH1#201807

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXZH1#201807

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
