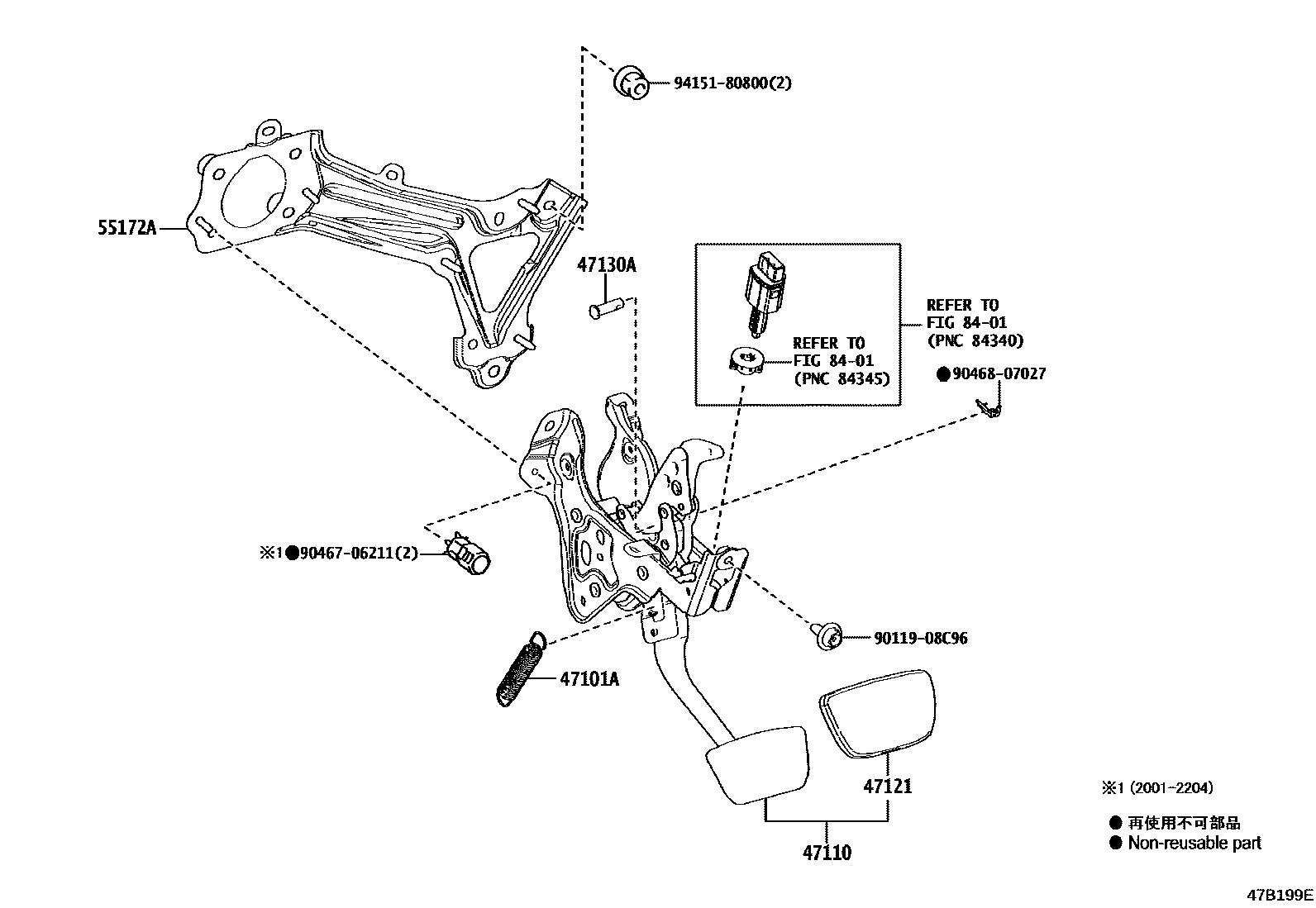

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXZH11202108

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33370iAXZH1#201807

main47110-33520supersedes 47110-33340iGSZ10201806

F SPORT

main47110-33541supersedes 47110-33371iAXZH11202108-202402

F SPORT

47121PAD, BRAKE PEDAL

main47121-48010iAXZH1#,GSZ10201806

main47121-11010iGSZ10201806

F SPORT

main47121-11020supersedes 47121-62010iAXZH11202108-202402

F SPORT

47130APIN, BRAKE PEDAL LINK

main90240-08078iAXZH1#,GSZ10201806-202110

55172ABASE, BRAKE PEDAL SUPPORT

main55172-33040iAXZH1#,GSZ10201806

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
