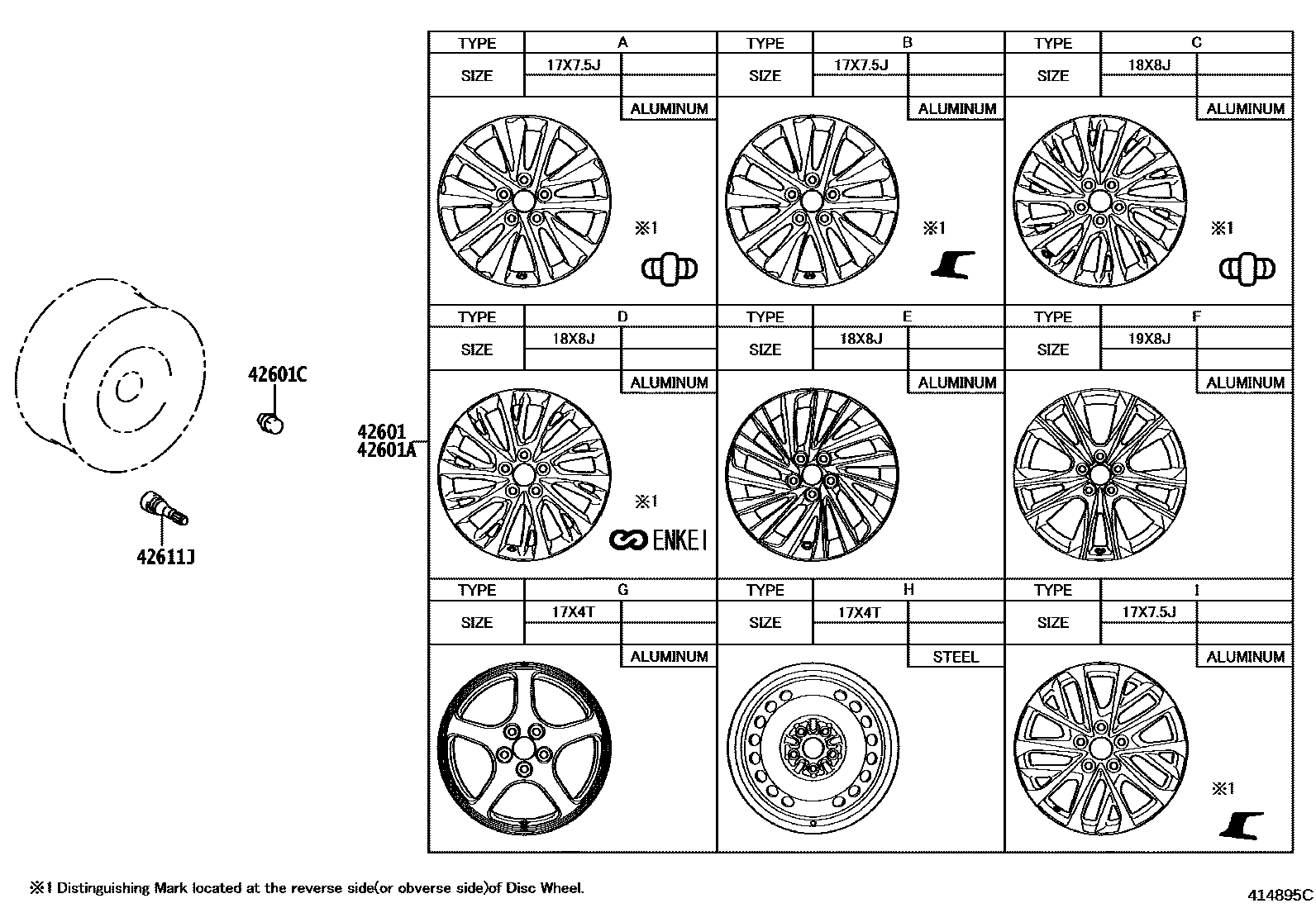

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-33D60iAXZH10201806-202008

17X7.5J, #,TYPE A:REFER ILLUST.

main42611-33D70iAXZH10202008

17X7.5J, #,TYPE A:REFER ILLUST.

main42611-33D80iAXZH10201806-202008

17X7.5J, #,TYPE B:REFER ILLUST.

main42611-33D90iAXZH10202008

17X7.5J, #,TYPE B:REFER ILLUST.

main42611-33G20iAXZH11202108-202402

17X7.5J,TYPE I:REFER ILLUST.

main42611-33G40iAXZH11202108-202402

17X7.5J,TYPE J:REFER ILLUST.

main42611-33G60iAXZH11202402

18X8J,TYPE K:REFER ILLUST.

main42611-33G80iAXZH11202402

18X8J,TYPE L:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-33E20iAXZH1#,GSZ10202008

17X4T,TYPE H:REFER ILLUST.

main4261B-33010iAXZH10,GSZ10201806-202008

17X4T,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iAXZH1#,GSZ10201806-202110

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXZH1#,GSZ10201806

4 parts on this diagram · 3 diagrams in section
