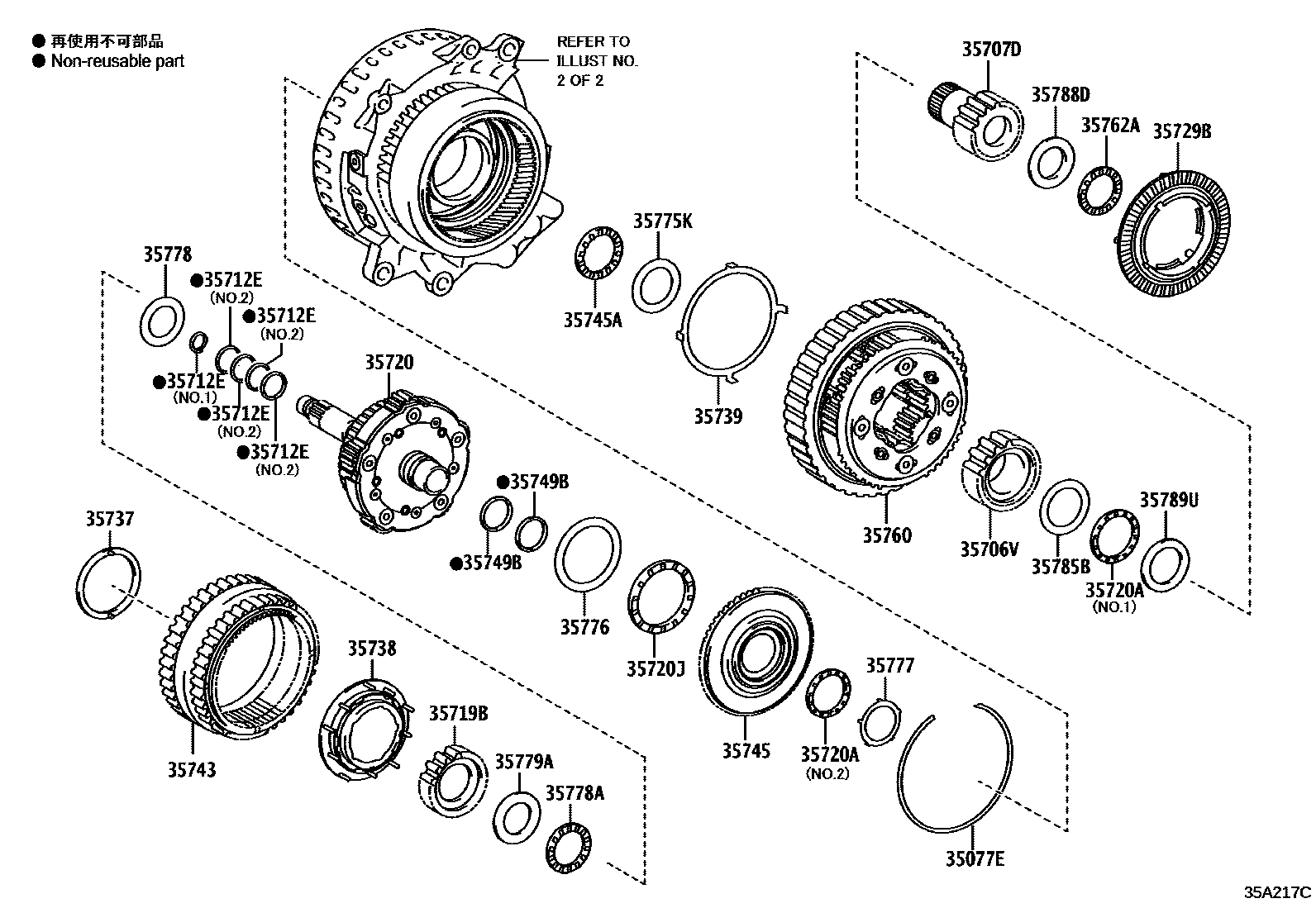

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1UA80E(FRONT & REAR PLANETARY 0002 1UA80E(COUNTER DRIVE & DRIVEN

35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-99176iGSZ10201806-202004

TOYOTA:REFER 35-01

main90520-99176iGSZ10202006-202107

AISIN AW:REFER 35-01

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

sub35706-48040

main35706-48040iGSZ10202006-202107

AISIN AW:REFER 35-01

35707DGEAR SUB-ASSY, REAR PLANETARY SUN

main35707-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

sub35707-48040

main35707-48040iGSZ10202006-202107

AISIN AW:REFER 35-01

35712ERING, INPUT SHAFT OIL SEAL

main35617-60030iGSZ10202006-202107

NO.1,AISIN:SEE 35-01

main35712-48020iGSZ10201806-202004

*229,NO.1:REF.ILLUST

main35712-48030iGSZ10201806-202004

*229,NO.2:REF.ILLUST

main35712-48030iGSZ10202006-202107

NO.2,AISIN:SEE 35-01

35719BGEAR, PLANETARY SUN

main35719-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

main35719-48030iGSZ10202006-202107

AISIN AW:REFER 35-01

35720GEAR ASSY, FRONT PLANETARY

main35720-48070iGSZ10201806-202004

TOYOTA:REFER 35-01

sub35720-48080

main35720-48080iGSZ10202006-202101

AISIN AW:REFER 35-01

main35720-48100iGSZ10202101-202107

AISIN AW:REFER 35-01

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-33009iGSZ10202006-202012

NO.1,AISIN:SEE 35-01

main90374-33009iGSZ10201806-202004

*229,NO.1:REF.ILLUST

main90374-33012iGSZ10202101-202107

NO.1,AISIN:SEE 35-01

main90374-39009iGSZ10202006-202107

NO.2,AISIN:SEE 35-01

main90374-39009iGSZ10201806-202004

*229,NO.2:REF.ILLUST

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-58005iGSZ10201806-202004

TOYOTA:REFER 35-01

main90374-58005iGSZ10202006-202107

AISIN AW:REFER 35-01

35729BWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

main35729-48030iGSZ10202006-202107

AISIN AW:REFER 35-01

35737WASHER, PLANETARY CARRIER THRUST

main35737-48050iGSZ10201806-202004

TOYOTA:REFER 35-01

main35737-48080iGSZ10202006-202107

AISIN AW:REFER 35-01

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-48040iGSZ10202101-202107

AISIN AW:REFER 35-01

main35738-48050iGSZ10202006-202101

AISIN AW:REFER 35-01

main35738-48050iGSZ10201806-202004

TOYOTA:REFER 35-01

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-48030iGSZ10201806-202004

TOYOTA:REFER 35-01

main35739-48030iGSZ10202006-202107

AISIN AW:REFER 35-01

35743GEAR, FRONT PLANETARY RING

main35743-48020iGSZ10201806-202004

TOYOTA:REFER 35-01

main35743-48020iGSZ10202006-202107

AISIN AW:REFER 35-01

35745FLANGE, FRONT PLANETARY RING GEAR

main35745-48020iGSZ10201806-202004

TOYOTA:REFER 35-01

main35745-48030iGSZ10202006-202107

AISIN AW:REFER 35-01

35745ABRG, THRUST NEEDLE ROLLER(FOR FRONT PLNT RING GEAR FLANGE)

main90374-33010iGSZ10201806-202004

TOYOTA:REFER 35-01

main90374-33010iGSZ10202006-202107

AISIN AW:REFER 35-01

35749BRING, INPUT SHAFT OIL SEAL, REAR

main35749-48020iGSZ10202006-202107

AISIN AW:REFER 35-01

main35749-48020iGSZ10201806-202004

TOYOTA:REFER 35-01

35760GEAR ASSY, REAR PLANETARY

main35760-48050iGSZ10201806-202004

TOYOTA:REFER 35-01

sub35760-48060

main35760-48060iGSZ10202006-202107

AISIN AW:REFER 35-01

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-24007iGSZ10201806-202004

TOYOTA:REFER 35-01

main90374-24007iGSZ10202006-202107

AISIN AW:REFER 35-01

35775KRACE, THRUST BEARING, NO.5

main35775-48040iGSZ10202006-202107

AISIN AW:REFER 35-01

main35775-48040iGSZ10201806-202004

TOYOTA:REFER 35-01

35776GEAR, PRIMARY REDUCTION DRIVEN

main35776-48010iGSZ10202006-202107

AISIN AW:REFER 35-01

main35776-48020iGSZ10201806-202004

TOYOTA:REFER 35-01

35777RACE, THRUST BEARING, NO.7

main35777-48040iGSZ10201806-202004

TOYOTA:REFER 35-01

main35777-48040iGSZ10202006-202107

AISIN AW:REFER 35-01

35778RACE, THRUST BEARING, NO.8

main35778-48020iGSZ10201806-202004

TOYOTA:REFER 35-01

main35778-48020iGSZ10202006-202107

AISIN AW:REFER 35-01

35778ABEARING, THRUST NEEDLE ROLLER

main90374-31012iGSZ10201806-202004

TOYOTA:REFER 35-01

main90374-31012iGSZ10202006-202107

AISIN AW:REFER 35-01

35779ARACE, THRUST BEARING, NO.9

main35779-48020iGSZ10201806-202004

TOYOTA:REFER 35-01

main35779-48020iGSZ10202006-202107

AISIN AW:REFER 35-01

35785BRACE, THRUST BEARING, NO.4

main35785-48040iGSZ10201806-202004

TOYOTA:REFER 35-01

main35785-48040iGSZ10202006-202107

AISIN AW:REFER 35-01

35788DRACE, THRUST BEARING, NO.3

main35788-48020iGSZ10202006-202107

AISIN AW:REFER 35-01

main35788-48020iGSZ10201806-202004

TOYOTA:REFER 35-01

35789URACE, THRUST BEARING

main35789-48100iGSZ10202006-202107

AISIN AW:REFER 35-01

main35789-48100iGSZ10201806-202004

TOYOTA:REFER 35-01

27 parts on this diagram · 2 diagrams in section
