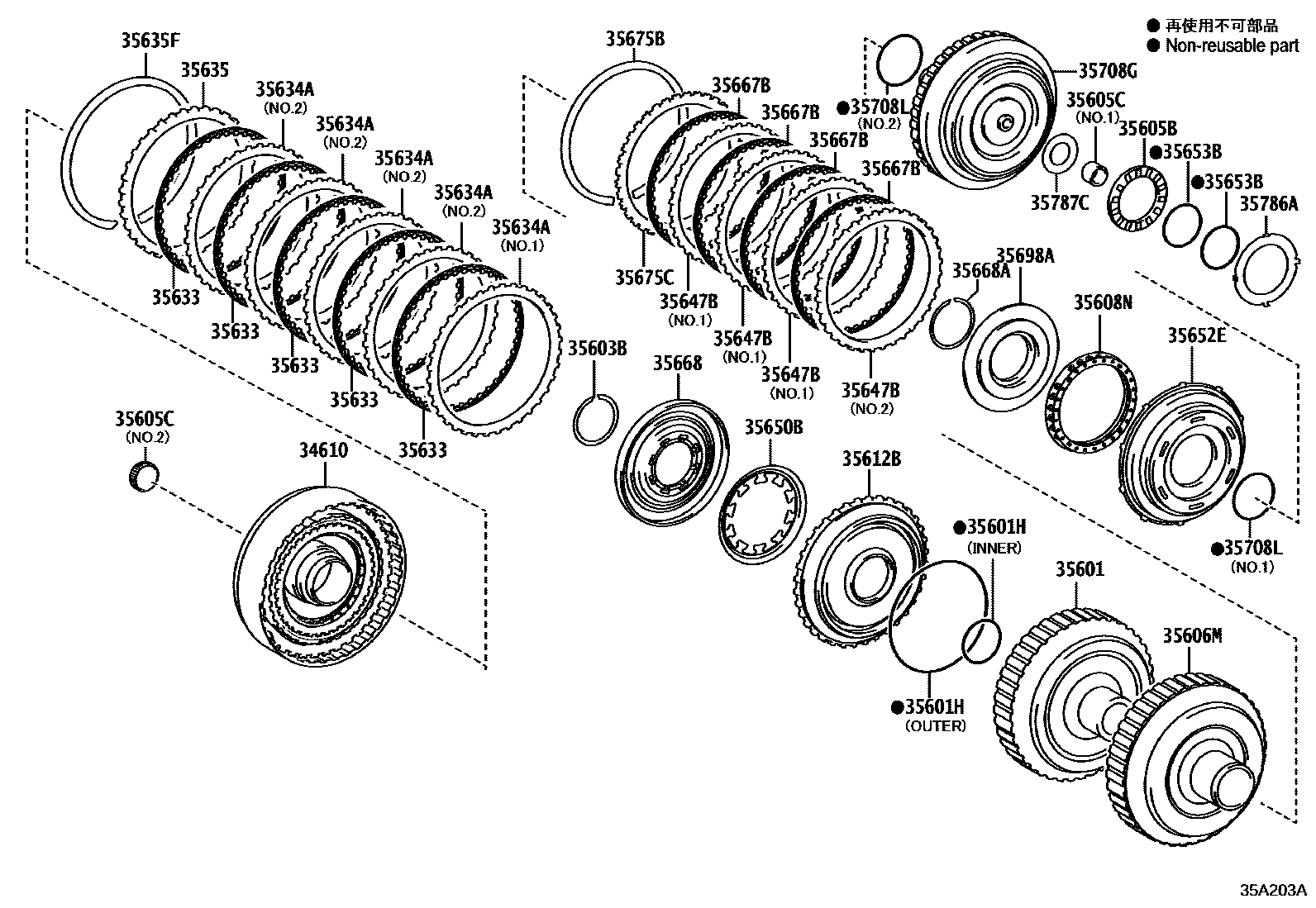

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34610CLUTCH ASSY, C-3 & C-4
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35601DRUM SUB-ASSY, CLUTCH
AISIN AW:REFER 35-01
35601HRING, O(FOR C-1 DRUM)
*229,OUTER
*229,INNER
35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)
AISIN AW:REFER 35-01
35605BBEARING, THRUST NEEDLE ROLLER
TOYOTA:REFER 35-01
35605CBEARING, NEEDLE ROLLER
NO.1,AISIN:SEE 35-01
*229,NO.1:REF.ILLUST
NO.2,AISIN:SEE 35-01
*229,NO.2:REF.ILLUST
35606MHUB SUB-ASSY, SUN GEAR INPUT
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER
TOYOTA:REFER 35-01
35612BPISTON, FORWARD CLUTCH
AISIN AW:REFER 35-01
35633DISC, CLUTCH (FOR FRONT CLUTCH)
TOYOTA:REFER 35-01
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,NO.2,AISIN:SEE 35-01
T=1.4,NO.1,AISIN:SEE 35-01
35635FLANGE, FORWARD CLUTCH
T=4.3,AISIN AW:REFER 35-01
T=4.4,AISIN AW:REFER 35-01
T=4.5,AISIN AW:REFER 35-01
T=4.6,TOYOTA:REFER 35-01
T=4.7,TOYOTA:REFER 35-01
T=4.8,TOYOTA:REFER 35-01
T=4.9,TOYOTA:REFER 35-01
T=5.0,TOYOTA:REFER 35-01
T=5.1,AISIN AW:REFER 35-01
35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)
AISIN AW:REFER 35-01
35647BPLATE, CLUTCH, NO.2
NO.1,AISIN:SEE 35-01
NO.2,AISIN:SEE 35-01
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
TOYOTA:REFER 35-01
35652EPISTON, C-2 CLUTCH
TOYOTA:REFER 35-01
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
AISIN AW:REFER 35-01
35667BDISK, CLUTCH, NO.2
TOYOTA:REFER 35-01
35668BALANCER, CLUTCH, NO.1
TOYOTA:REFER 35-01
35668ARING, SNAP(FOR CLUTCH BALANCER)
TOYOTA:REFER 35-01
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
TOYOTA:REFER 35-01
35675CFLANGE, DIRECT CLUTCH
T=3.6,MARK 0,TOYOTA:REFER 35-01
T=3.7,MARK 1,TOYOTA:REFER 35-01
T=3.8,MARK 2,TOYOTA:REFER 35-01
T=3.9,MARK 3,TOYOTA:REFER 35-01
T=4.0,MARK 4,TOYOTA:REFER 35-01
T=4.1,MARK 5,TOYOTA:REFER 35-01
T=4.2,MARK 6,TOYOTA:REFER 35-01
T=3.6,MARK 0,AISIN AW:REFER 35-01
T=3.7,MARK 1,AISIN AW:REFER 35-01
T=3.8,MARK 2,AISIN AW:REFER 35-01
T=3.9,MARK 3,AISIN AW:REFER 35-01
T=4.0,MARK 4,AISIN AW:REFER 35-01
T=4.1,MARK 5,AISIN AW:REFER 35-01
T=4.2,MARK 6,AISIN AW:REFER 35-01
35698ABALANCER, C-2 CLUTCH
AISIN AW:REFER 35-01
35708GSHAFT SUB-ASSY, INTERMEDIATE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1,AISIN:SEE 35-01
NO.2,AISIN:SEE 35-01
35786ARACE, THRUST BEARING, NO.1
TOYOTA:REFER 35-01
35787CRACE, THRUST BEARING, NO.2
TOYOTA:REFER 35-01
27 parts on this diagram · 1 diagram in section
