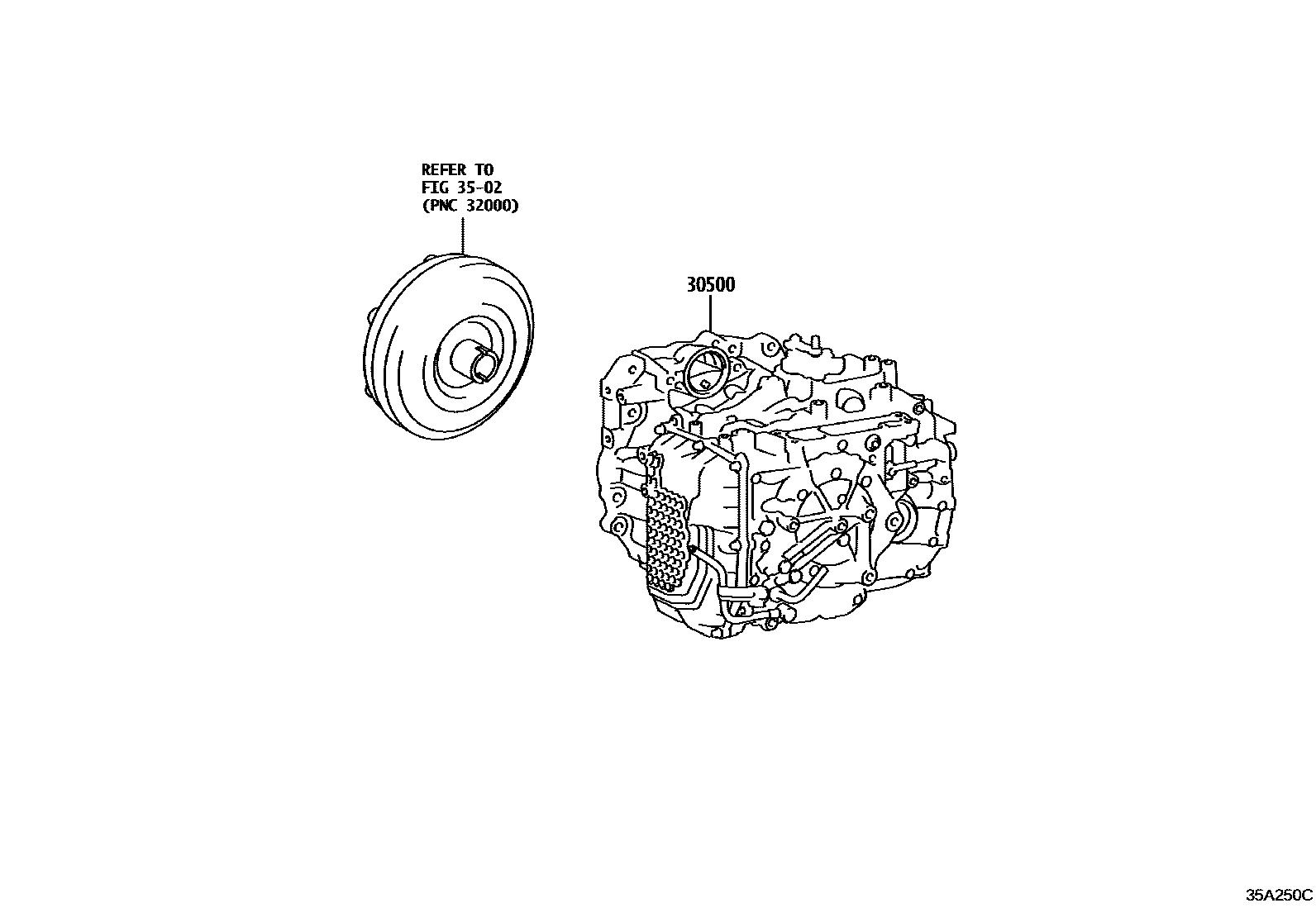

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1UA80E 0002 1UA80E

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33861iGSZ10201806-202004

UA80E,TOYOTA:REF.ILLUST

main30500-33A01iGSZ10202006-202107

UA80E,AISIN AW:REF.ILLUST

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

2 parts on this diagram · 2 diagrams in section
