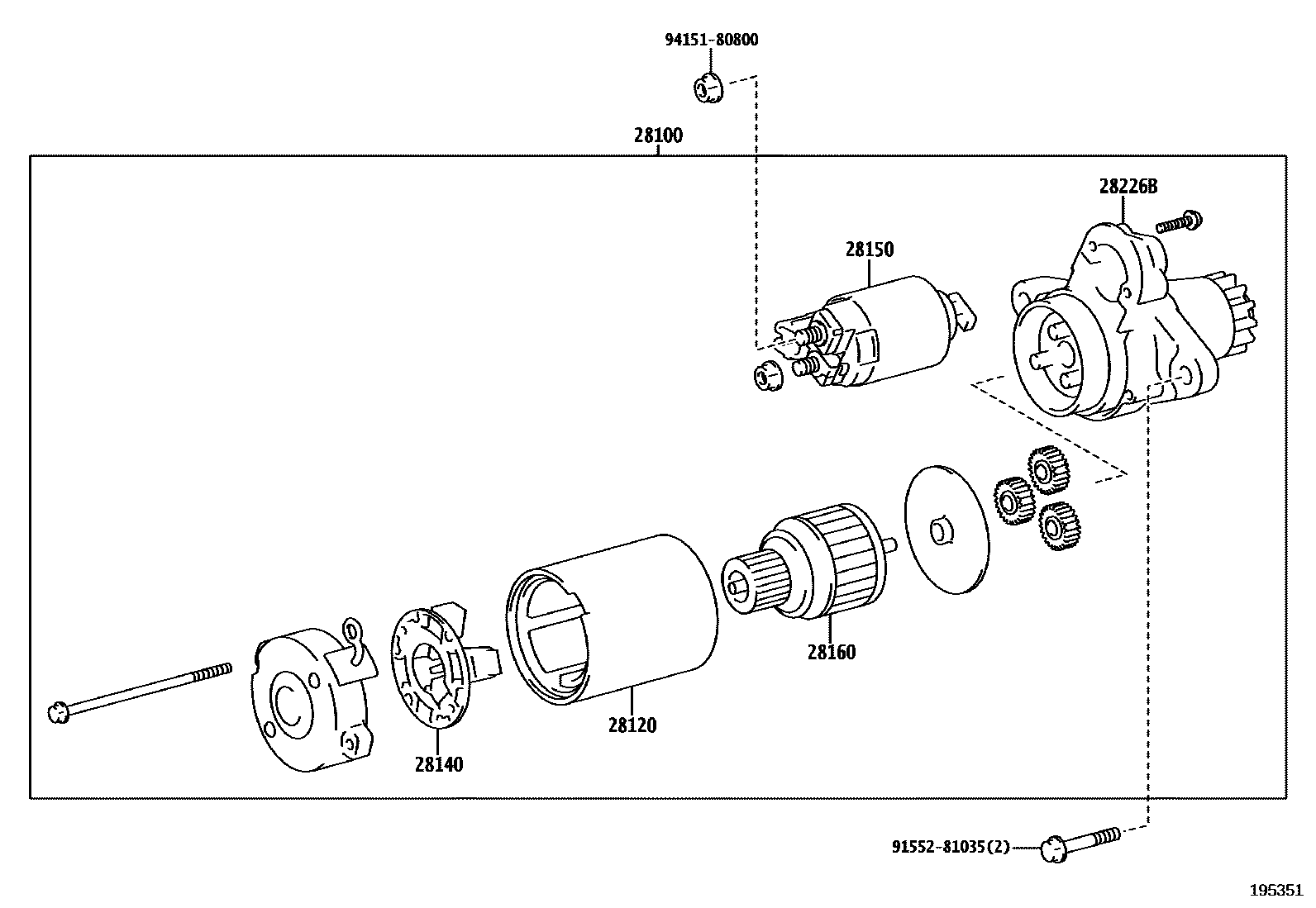

STARTER

28100STARTER ASSY

main28100-31240i2GRFKS..GSZ10201806

12V 1.8KW

28120YOKE ASSY, STARTER

main28120-31090i2GRFKS..GSZ10201806

28140HOLDER ASSY, STARTER BRUSH

main28140-31240i2GRFKS..GSZ10201806

28150SWITCH ASSY, MAGNET STARTER

main28150-40090i2GRFKS..GSZ10201806

28160ARMATURE ASSY, STARTER

main28160-31240i2GRFKS..GSZ10201806-201910

main28160-36190i2GRFKS..GSZ10202104

main28160-36210i2GRFKS..GSZ10201910-202104

28226BSTARTER KIT, REPAIR SERVICE

main28226-31240i2GRFKS..GSZ10201806

9155281035

main91552-81035

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
