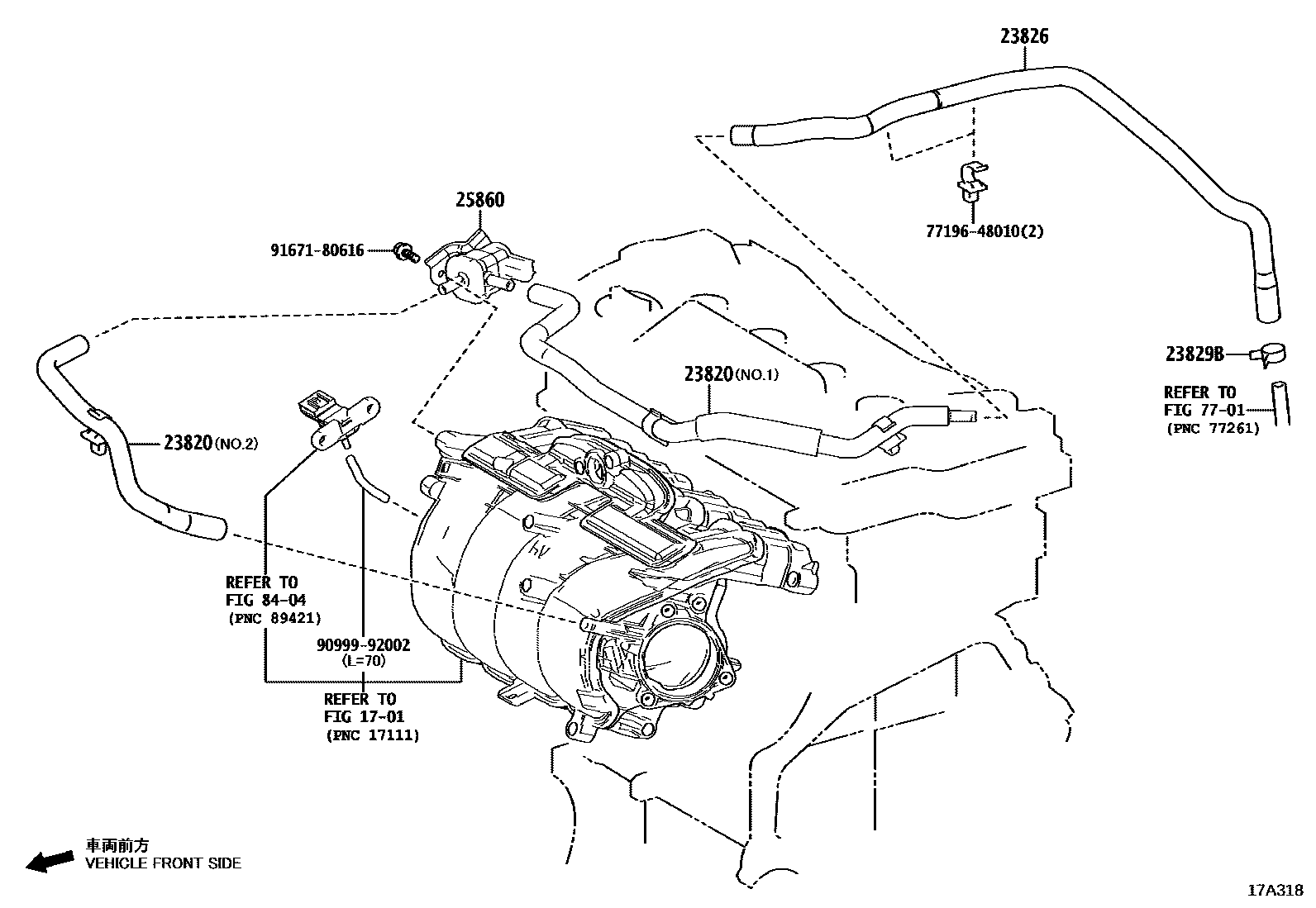

VACUUM PIPING

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25051iA25AFXS..AXZH11202108

NO.1:REFER ILLUST.

main23820-25130iA25AFXS..AXZH1#201807-202110

NO.2:REFER ILLUST.

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-25030iA25AFXS..AXZH11202108

main23826-31490i2GRFKS..GSZ10201806

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901iA25AFXS..AXZH1#201807

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AXZH1#201807-202110

main25860-31120i2GRFKS..GSZ10201806

NO.2

main25860-31190i2GRFKS..GSZ10201806

NO.1

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

7719648010CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-48010

9099992002

main90999-92002

9167180616

main91671-80616

10 parts on this diagram · 2 diagrams in section
