ENGINE OVERHAUL GASKET KIT

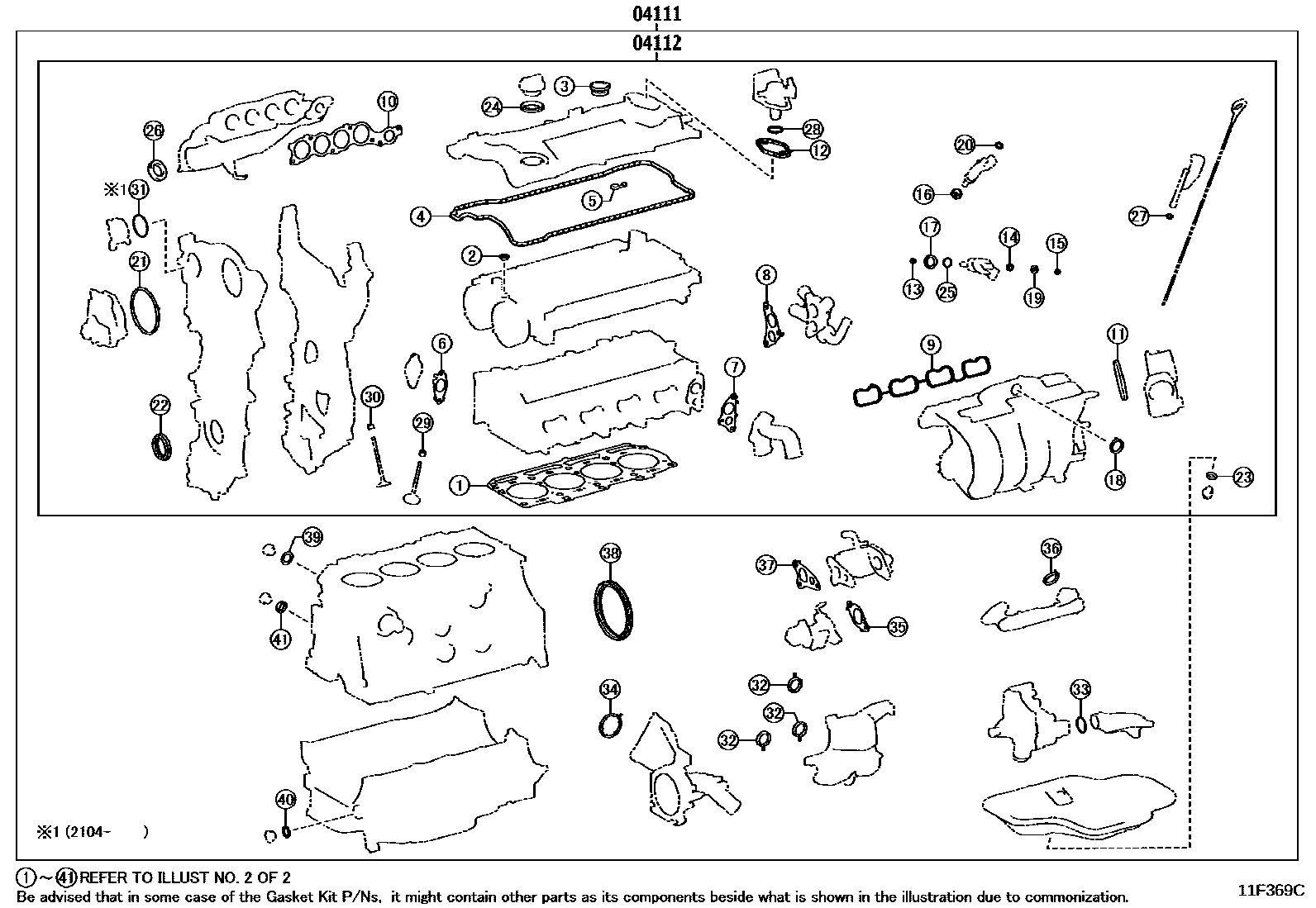

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-25210i201807-202103

main04111-25240i202104-202107

main04111-25241i202108

main04111-25290i202108

main04111-31C61i201806-202107

main04111-31C62i202107-202111

main04111-31C63i202112

04112GASKET KIT, ENGINE VALVE GRIND

main04112-25150i201807-202103

main04112-25180i202104-202107

main04112-25181i202108

main04112-31A01i201806-202111

main04112-31A02i202112

2 parts on this diagram · 4 diagrams in section
