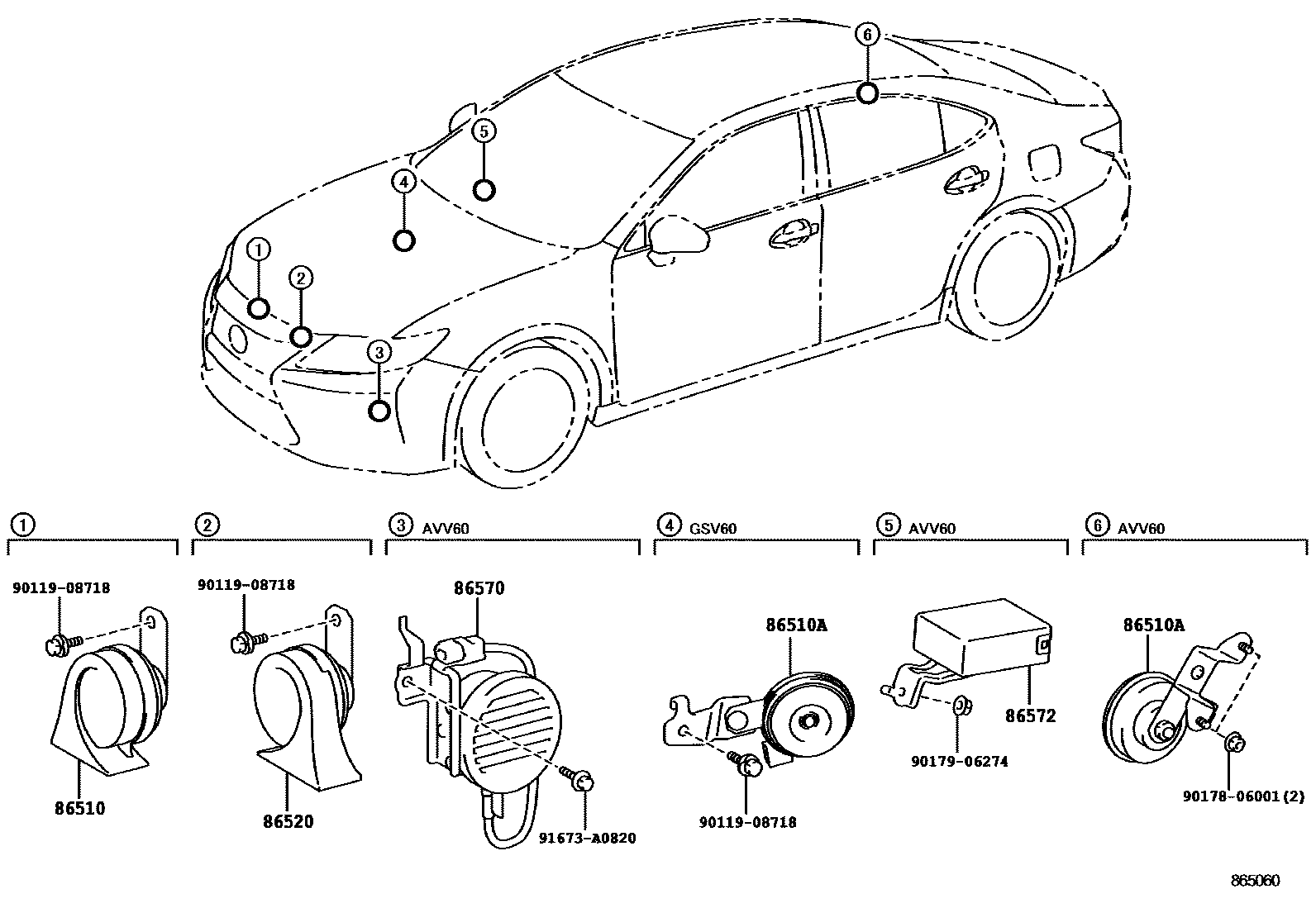

HORN

0001 1 0002 1 0003 1

86510HORN ASSY, HIGH PITCHED

main86510-33260supersedes 86510-48050iAVV60,GSV60201507

KOREA SPEC

main86510-48170supersedes 86510-48050iAVV60,GSV60201206-201507

KOREA SPEC

86510AHORN ASSY, SECURITY

main86560-33040iGSV60201507

main86560-33050iAVV60201507

86520HORN ASSY, LOW PITCHED

main86520-30690supersedes 86520-48030iAVV60,GSV60201507

KOREA SPEC

main86520-48130supersedes 86520-48030iAVV60,GSV60201206-201507

KOREA SPEC

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-33010supersedes 86570-33080iAVV60201206-201408

CANADA SPEC; KOREA SPEC; USA POSSESSIONS SPEC

main86570-33050iAVV60201408-201507

CANADA SPEC; KOREA SPEC; USA POSSESSIONS SPEC

main86570-33080iAVV60201507

KOREA SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-33020supersedes 86572-33070iAVV60201206-201408

CANADA SPEC; KOREA SPEC; USA POSSESSIONS SPEC

main86572-33070iAVV60201408-201507

CANADA SPEC; KOREA SPEC; USA POSSESSIONS SPEC

9011908718

main90119-08718

9017806001

main90178-06001

9017906274

main90179-06274

91673A0820

main91673-A0820

9 parts on this diagram · 3 diagrams in section
