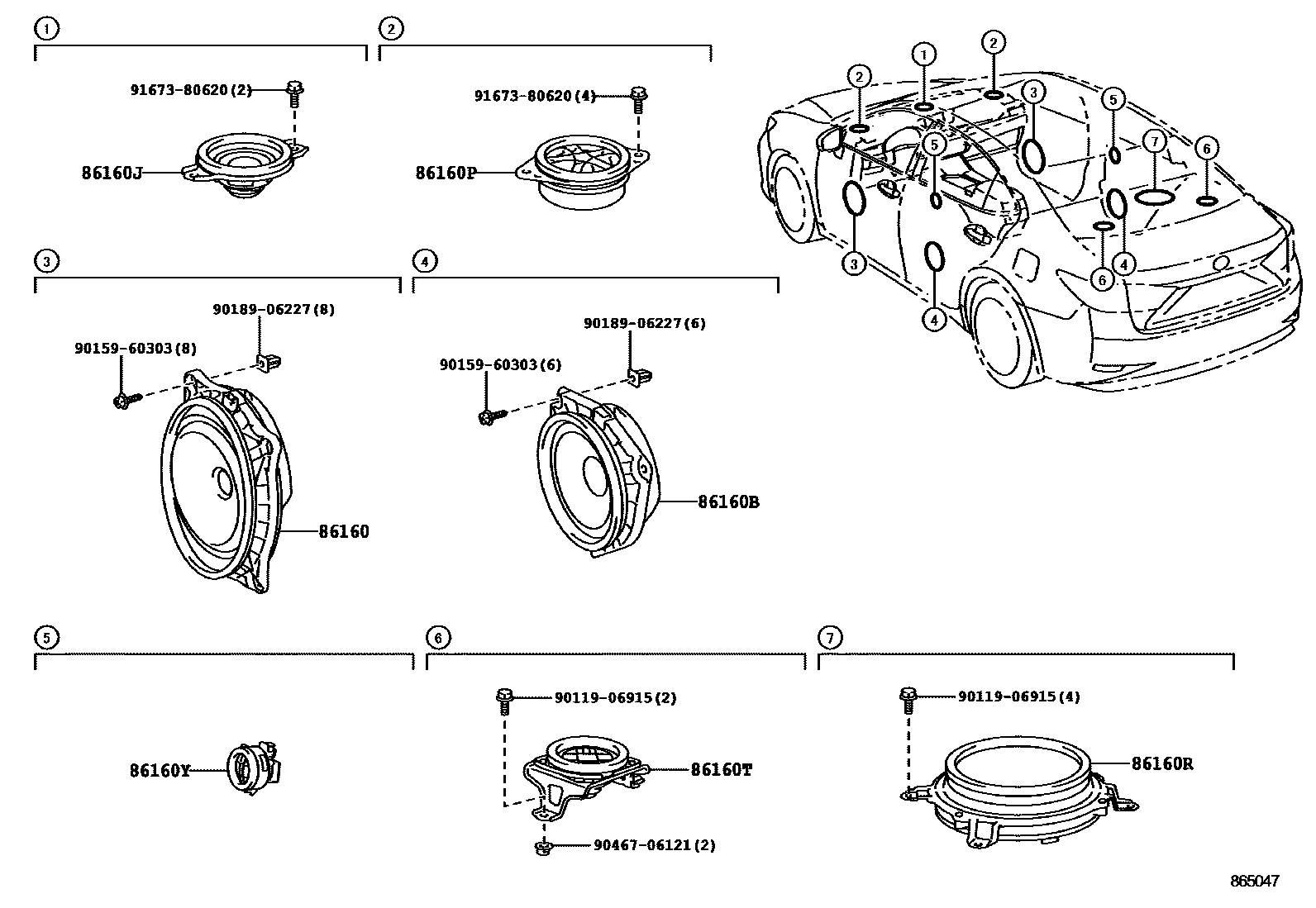

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & *MAR & 15SPEAKER & SDARS
86160BSPEAKER ASSY, REAR
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB
86160JSPEAKER ASSY, FRONT NO.3
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & *MAR & 15SPEAKER & SDARS
86160PSPEAKER ASSY, FRONT NO.2
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & *MAR & 15SPEAKER & SDARS
86160RSPEAKER ASSY, STEREO COMPONENT
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & *MAR & 15SPEAKER & SDARS
86160TSPEAKER ASSY, REAR HEADER
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB
86160YSPEAKER ASSY, REAR NO.2
AUDIO-EMVN & DVD & *MAR & 15SPEAKER; AUDIO-EMVN & DVD & *MAR & 15SPEAKER & SDARS
9011906915
main90119-06915
9015960303
main90159-60303
9018906227
main90189-06227
9046706121
main90467-06121
9167380620
main91673-80620
12 parts on this diagram · 1 diagram in section
