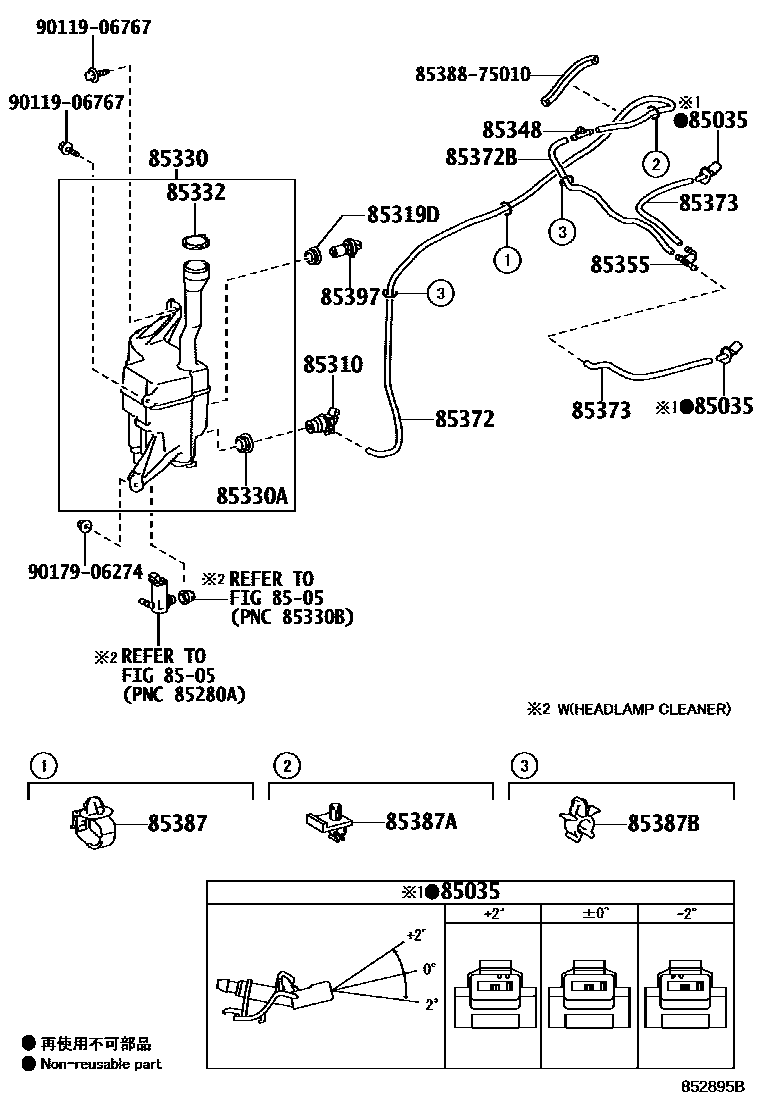

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i201206-201507

ANGLE 0

main85381-12340×2i201507

ANGLE -2

main85381-12350×2i201507

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010i201206-201507

85319DPACKING, FRONT WASHER

main85319-33230i201206-201507

85330JAR ASSY, WINDSHIELD WASHER

main85315-33460i201206-201408

main85315-33461i201408-201507

main85355-33160i201206-201408

MEXICO SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201507

85332CAP, WINDSHIELD WASHER JAR

main85316-33320i201206-201408

MEXICO SPEC

main85316-33461i201408-201507

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050i201206-201507

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201206-201507

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33807i201206-201507

L=1670

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201206-201507

L=1450(*H,L=720)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201206-201507

L=1450(*H,L=360)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E340i201206-201507

85387ACLAMP, WASHER, NO.2

main85371-33010i201206-201507

85387BCLAMP, WASHER, NO.3

main90469-07011×2i201206-201507

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201206-201507

8538875010CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-75010

9011906767

main90119-06767

9017906274

main90179-06274
