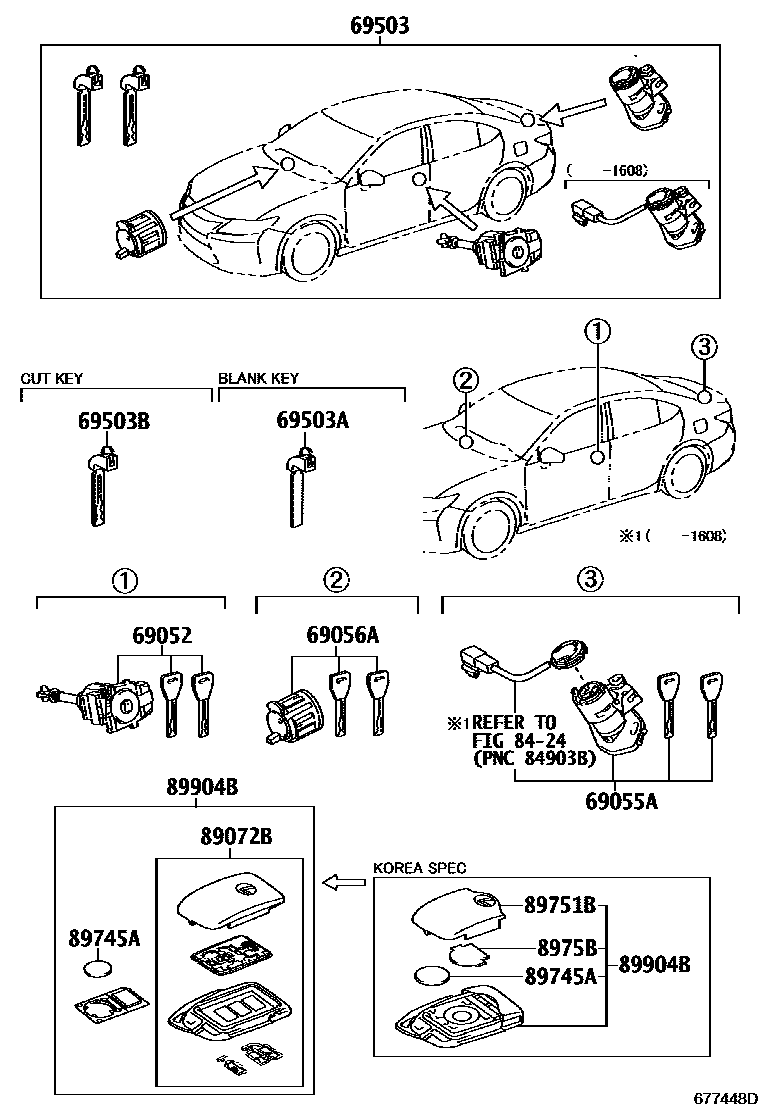

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33360iAVV60,GSV60201507

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33490iAVV60,GSV60201206-201507

main69055-33491iAVV60,GSV60201608

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iAVV60,GSV60201206-201507

69503CYLINDER SET, LOCK

main69005-33D10iAVV60,GSV60201206-201507

main69005-33D11iAVV60,GSV60201608

69503AKEY, BLANK

main69515-30380iAVV60,GSV60201206-201507

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370×2iAVV60,GSV60201206-201507

MASTER KEY,W(*68)

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-30172supersedes 89072-30530iGSV60201206-201207

MEXICO SPEC; USA POSSESSIONS SPEC

main89072-30352supersedes 89072-30700iAVV60201206-201207

USA POSSESSIONS SPEC

89745ABATTERY, TRANSMITTER

main89745-50020supersedes 89745-45010iAVV60,GSV60201206-201507

CR2032,KOREA SPEC

89751BCOVER, TRANSMITTER HOUSING

main89751-30310iGSV60201206-201507

KOREA SPEC

main89751-30320iAVV60201206-201507

KOREA SPEC

main89751-48290iGSV60201507

KOREA SPEC

main89751-48370iAVV60201507

KOREA SPEC

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iAVV60,GSV60201206-201507

KOREA SPEC

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30A31iGSV60201206-201408

MEXICO SPEC

main89904-30A91supersedes 89904-30K20iAVV60201206-201507

USA POSSESSIONS SPEC

main89904-30B70supersedes 89904-30G90iGSV60201206-201507

KOREA SPEC

main89904-30B80supersedes 89904-30K20iAVV60201206-201507

KOREA SPEC

main89904-30J70supersedes 89904-30G90iGSV60201507

KOREA SPEC

main89904-30L00supersedes 89904-30K20iAVV60201507

KOREA SPEC

12 parts on this diagram · 1 diagram in section
