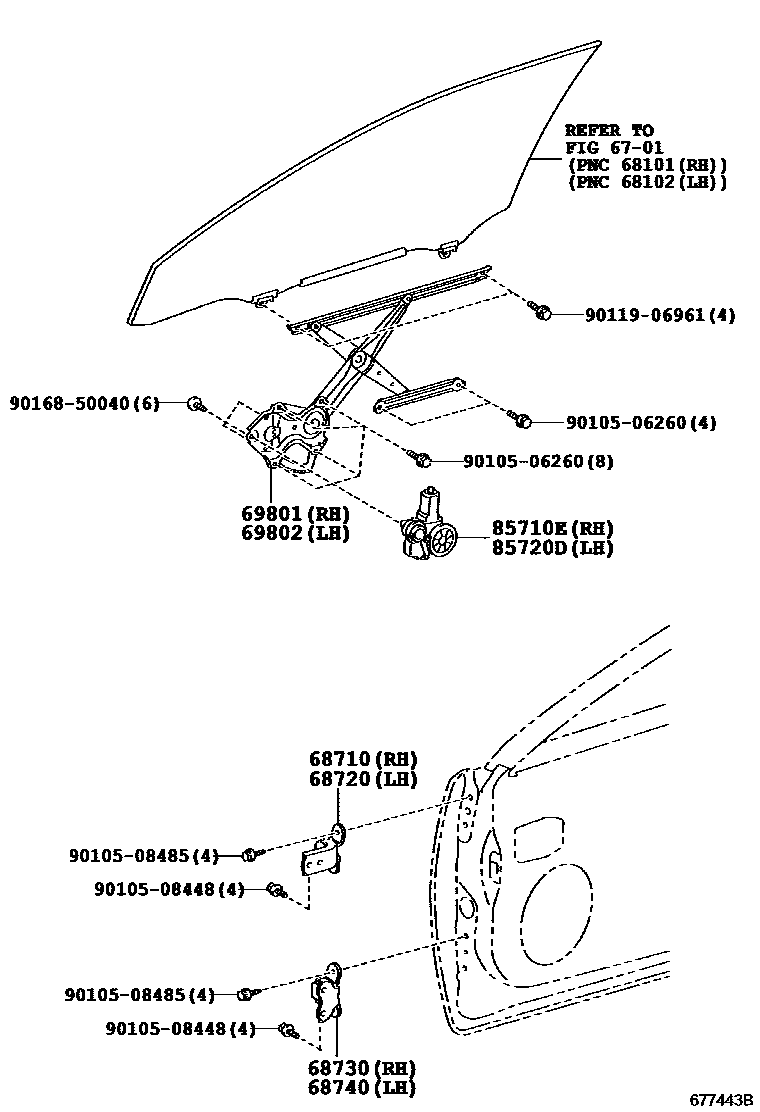

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAVV60,GSV60201507

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAVV60,GSV60201206-201507

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAVV60,GSV60201206-201507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAVV60,GSV60201206-201507

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33110iAVV60,GSV60201507

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33120iAVV60,GSV60201206-201507

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33251iAVV60,GSV60201507

main85710-33260iAVV60,GSV60201206-201302

main85710-33261iAVV60,GSV60201303-201507

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33251iAVV60,GSV60201507

main85720-33260iAVV60,GSV60201206-201302

main85720-33261iAVV60,GSV60201303-201507

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
