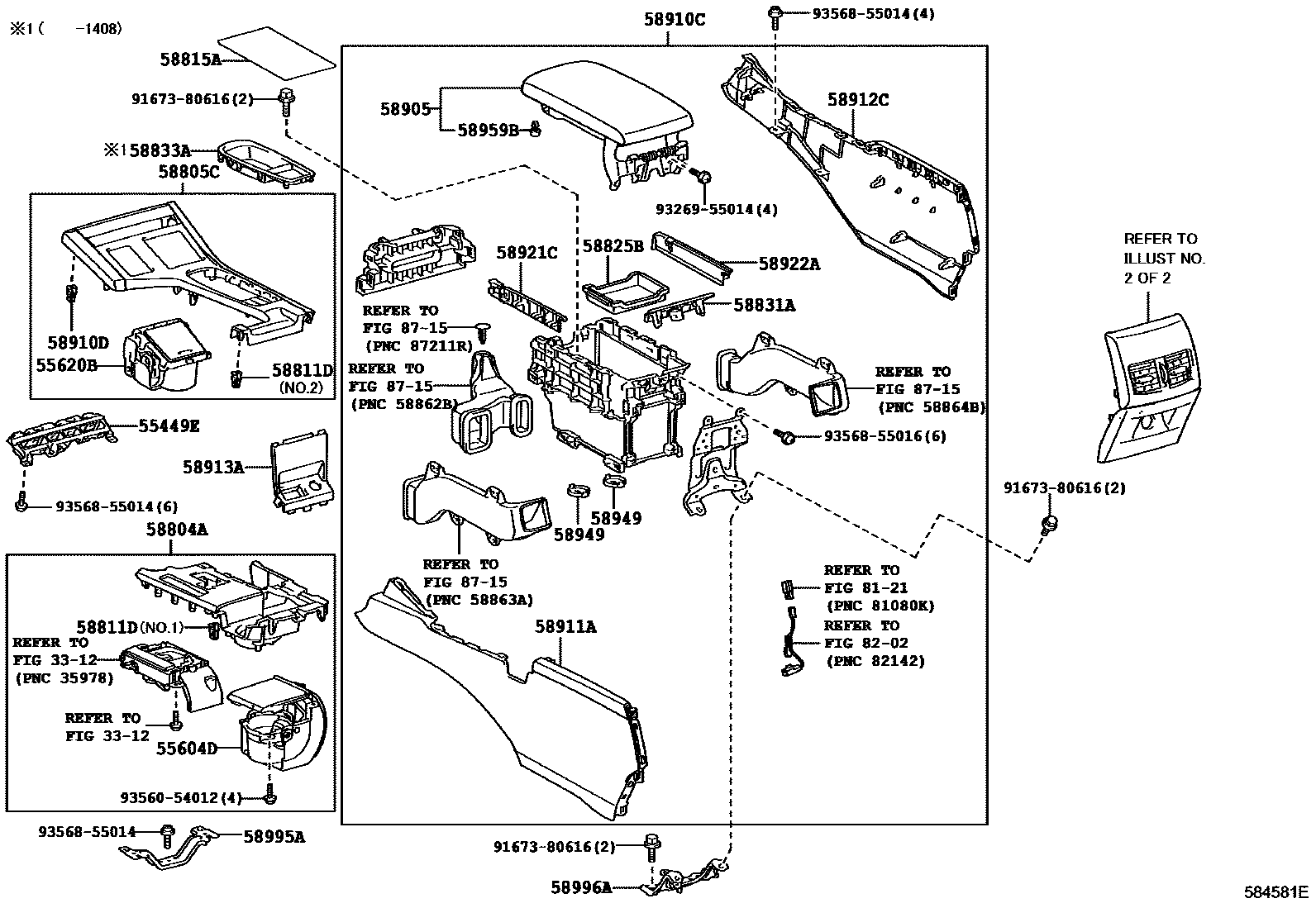

CONSOLE BOX & BRACKET
3312
55449EBASE, SWITCH
STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))
SUN SHADE-WITH(BACK WINDOW)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))
SUN SHADE-WITH(BACK WINDOW)
55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
BLACK METALLIC,TRIM0#,1#,2#,5#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&CUP HOLDER(CENTERCONSOLE)-WOOD(BIRDS EYE MAPLE)
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO),TRIM02,12,22,52
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY),TRIM03,13,23,53
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(WOOD),TRIM01,11,21,51
55620BHOLDER, INSTRUMENT PANEL CUP
ECRU,TRIM00
IVORY,TRIM01
BLACK,TRIM1#,2#,3#
TOPAZ BROWN,TRIM5#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BK METALLIC/NOBLE BROWN,TRIM0#,5#
BK METALLIC/BLACK,TRIM1#,2#
BK METALLIC/NOBLE BROWN,TRIM0#,41,5#
BK METALLIC/BLACK,TRIM1#,2#,40
BK METALLIC/NOBLE BROWN,TRIM0#,5#
BK METALLIC/BLACK,TRIM1#,2#
BK METALLIC/NOBLE BROWN,TRIM0#,5#
BK METALLIC/BLACK,TRIM1#,2#
D PACKAGE&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO)
CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO)
sub58804-33743
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&CUP HOLDER(CENTERCONSOLE)-WOOD(BIRDS EYE MAPLE)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&CUP HOLDER(CENTERCONSOLE)-WOOD(BIRDS EYE MAPLE)
CUP HOLDER(CENTER CONSOLE)-WOOD(BIRDS EYE MAPLE)
sub58804-33753
CONSOLE BOX ORNAMENT-WOOD,DK BROWN/NOBLE BROWN,TRIM03,53
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/NOBLE BROWN,TRIM02,52
CONSOLE BOX ORNAMENT-WOOD,DK BROWN(BIRDSEYE)/BLACK,TRIM11,21
CONSOLE BOX ORNAMENT-WOOD,DKBROWN(BIRDSEYE/NB.BROWN,TRIM01,51
CONSOLE BOX ORNAMENT-WOOD,DK BROWN(EBONY)/BLACK,TRIM13,23
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/BLACK,TRIM12,22
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN/NOBLE BROWN,TRIM03,41,53
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/NOBLE BROWN,TRIM02,52
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(BIRDSEYE)/BLACK,TRIM11,21
CONSOLE BOX ORNAMENT-WOOD,DKBROWN(BIRDSEYE/NB.BROWN,TRIM01,51
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY)/BLACK,TRIM13,23,40
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/BLACK,TRIM12,22
CONSOLE BOX ORNAMENT-WOOD,DK.BRO(EBONY)/NOBLE BROWN,TRIM03,53
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/NOBLE BROWN,TRIM02,52
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(WOOD)/BLACK,TRIM11,21
CONSOLE BOX ORNAMENT-WOOD,DK.BRO(WOOD)/NOBLE BROWN,TRIM01,51
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY)/BLACK,TRIM13,23
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/BLACK,TRIM12,22
CONSOLE BOX ORNAMENT-WOOD,DK.BRO(EBONY)/NOBLE BROWN,TRIM03,53
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/NOBLE BROWN,TRIM02,52
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(WOOD)/BLACK,TRIM11,21
CONSOLE BOX ORNAMENT-WOOD,DK.BRO(WOOD)/NOBLE BROWN,TRIM01,51
CONSOLE BOX ORNAMENT-WOOD,DK.BROWN(EBONY)/BLACK,TRIM13,23
CONSOLE BOX ORNAMENT-WOOD,BROWN(BAMBOO)/BLACK,TRIM12,22
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
ECRU,TRIM00
IVORY,TRIM01
BLACK,TRIM1#,2#,3#
IVORY,TRIM0#
BLACK,TRIM1#,2#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
BLACK,TRIM1#,2#,40
TOPAZ BROWN,TRIM41,5#
58811DCLIP(FOR CONSOLE BOX)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
58815ACARPET, CONSOLE BOX
58825BPOCKET, CONSOLE BOX
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58833ACOVER, CONSOLE, UPPER
AUDIO-EMVN & DVD & 8SPEAKER,IVORY,TRIM0#
AUDIO-EMVN & DVD & 8SPEAKER & SDARS,BLACK,TRIM1#,2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MOON STONE,TRIM1#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
TOPAZ BROWN,TRIM5#
D PACKAGE,IVORY,TRIM0#
D PACKAGE,BLACK,TRIM1#,2#
58910CBOX ASSY, CONSOLE, REAR
BLACK/CRIMSON,TRIM3#
BLACK/LT.GRAY,TRIM2#
MOON STONE/BLACK,TRIM1#
TOPAZ BROWN/IVORY,TRIM5#
BLACK/LT.GRAY,TRIM2#,40
MOON STONE/BLACK,TRIM1#
TOPAZ BROWN/IVORY,TRIM5#
D PACKAGE,IVORY,TRIM0#
D PACKAGE,BLACK,TRIM1#,2#
58910DCLIP(FOR CONSOLE BOX)
58911APANEL, BOX SIDE, NO.1
IVORY,TRIM0#
BLACK,TRIM1#,2#
NOBLE BROWN/TOPAZ BROWN,TRIM5#
NOBLE BROWN/IVORY,TRIM0#
D PACKAGE,ORCHID BROWN,TRIM00
58912CPANEL, BOX SIDE, NO.2
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#
NOBLE BROWN/TOPAZ BROWN,TRIM41,5#
NOBLE BROWN/IVORY,TRIM0#
D PACKAGE,ORCHID BROWN,TRIM00
58913APANEL, BOX, NO.3
58921CPLATE, BOX, UPPER NO.1
58922APLATE, BOX, UPPER NO.2
58949PLATE, CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
8202
8715
9167380616
main91673-80616
9326955014
main93269-55014
9356054012
main93560-54012
9356855014
main93568-55014
9356855016
main93568-55016
31 parts on this diagram · 3 diagrams in section
