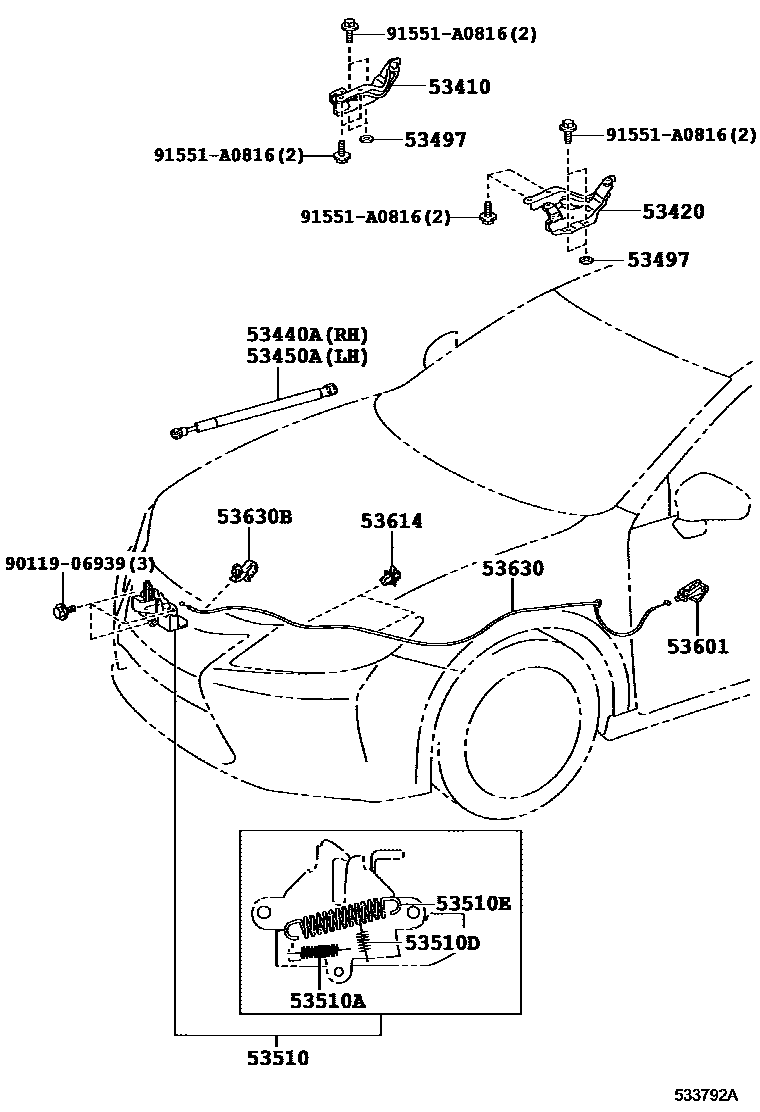

Toyota LEXUS ES350/300H(JPP282 — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53510ASPRING, TENSION(FOR HOOD LOCK)
53510DSPRING, TENSION(FOR HOOD LOCK)
53510ESPRING, TENSION(FOR HOOD LOCK)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53614CLAMP, HOOD LOCK CONTROL CABLE
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9011906939
91551A0816
15 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota LEXUS ES350/300H(JPP282
This section contains 15 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota LEXUS ES350/300H(JPP282. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, RH, SUPPORT ASSY, HOOD, LH, PAD, HOOD HINGE, NO.1.
