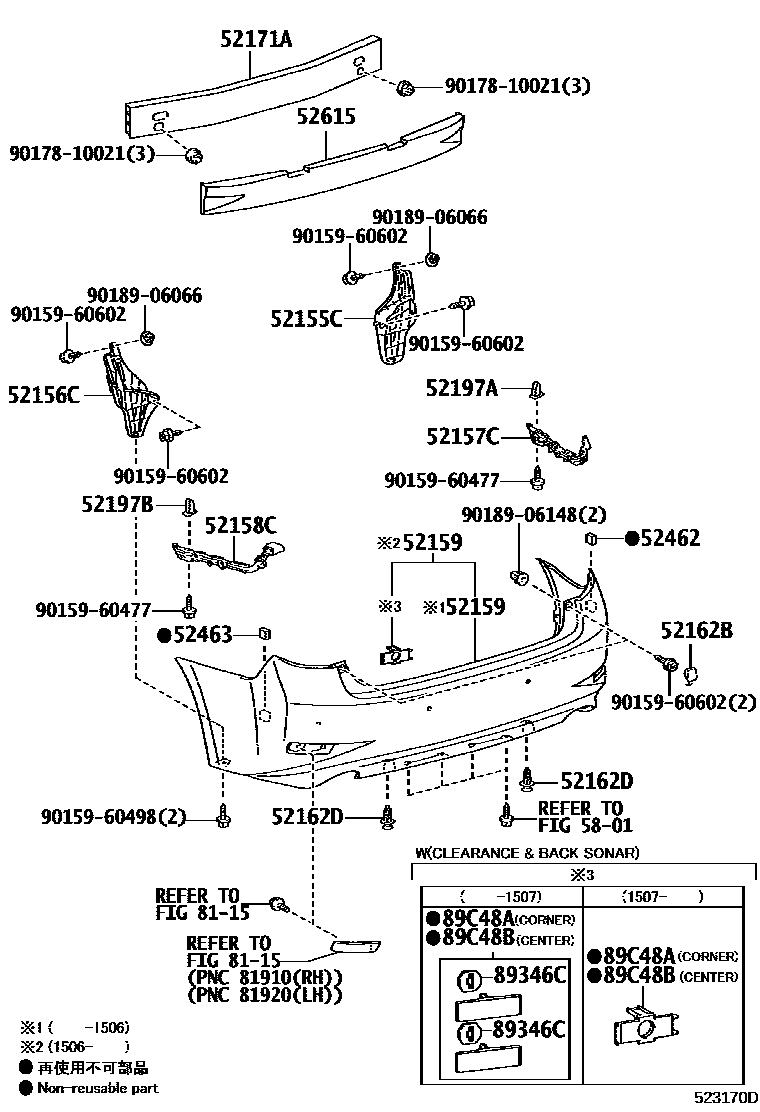

REAR BUMPER & BUMPER STAY
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
52162BPLATE, REAR BUMPER, NO.1
52162DPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52615ABSORBER, REAR BUMPER ENERGY
5801FLOOR PAN & LOWER BACK PANEL
8115REFLEX REFLECTOR
89346CADJUSTER, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
9015960477
main90159-60477
9015960498
main90159-60498
9015960602
main90159-60602
9017810021
main90178-10021
9018906066
main90189-06066
9018906148
main90189-06148
24 parts on this diagram · 2 diagrams in section
