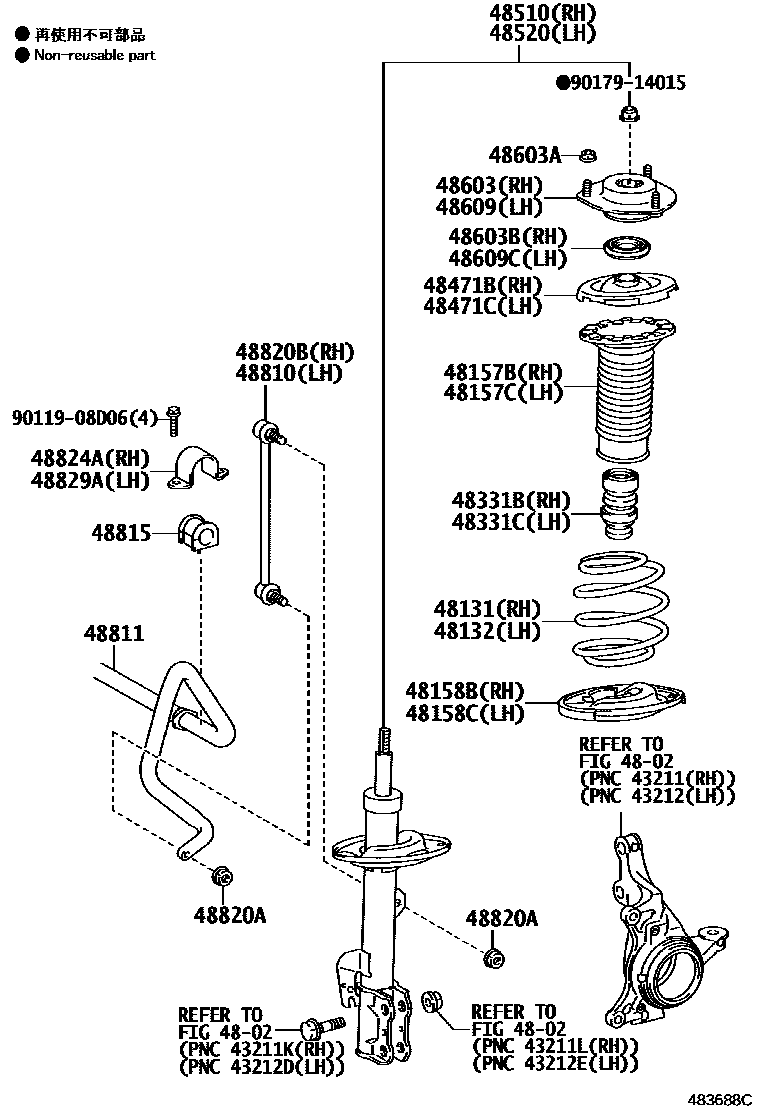

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-33680
MARK 48510-33680,C PACKAGE&SPORT PACKAGE&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
MARK 48510-33680,D PACKAGE&SPORT PACKAGE&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
MARK 48510-33680,B PACKAGE&SPORT PACKAGE&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
MARK 48510-33700
MARK 48510-33701
MARK 48510-33681,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI
MARK 48510-33681
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-33680
MARK 48520-33680,C PACKAGE&SPORT PACKAGE&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
MARK 48520-33680,D PACKAGE&SPORT PACKAGE&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
MARK 48520-33680,B PACKAGE&SPORT PACKAGE&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMINUM
MARK 48520-33700
MARK 48520-33701
MARK 48520-33681
MARK 48520-33681,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE ALUMI
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908D06
main90119-08D06
9017914015
main90179-14015
27 parts on this diagram · 1 diagram in section
