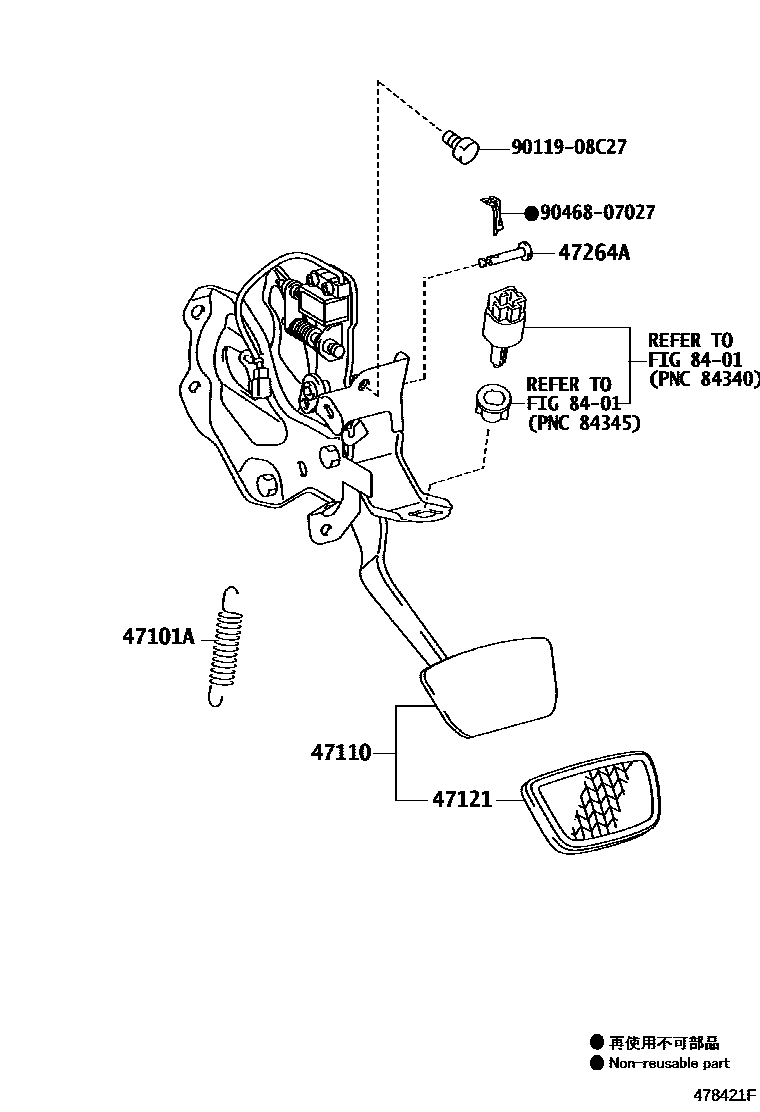

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAVV60,GSV60201507

47110SUPPORT ASSY, BRAKE PEDAL

main47110-33430iGSV60201507-201611

main47110-33431iGSV60201612

main47110-33471iAVV60201507

47121PAD, BRAKE PEDAL

main47121-50020iAVV60,GSV60201206-201507

47264APIN(FOR PUSH ROD)

main90240-08081iAVV60201206-201507

main90249-06180iGSV60201507

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C27

main90119-08C27

9046807027

main90468-07027

7 parts on this diagram · 2 diagrams in section
