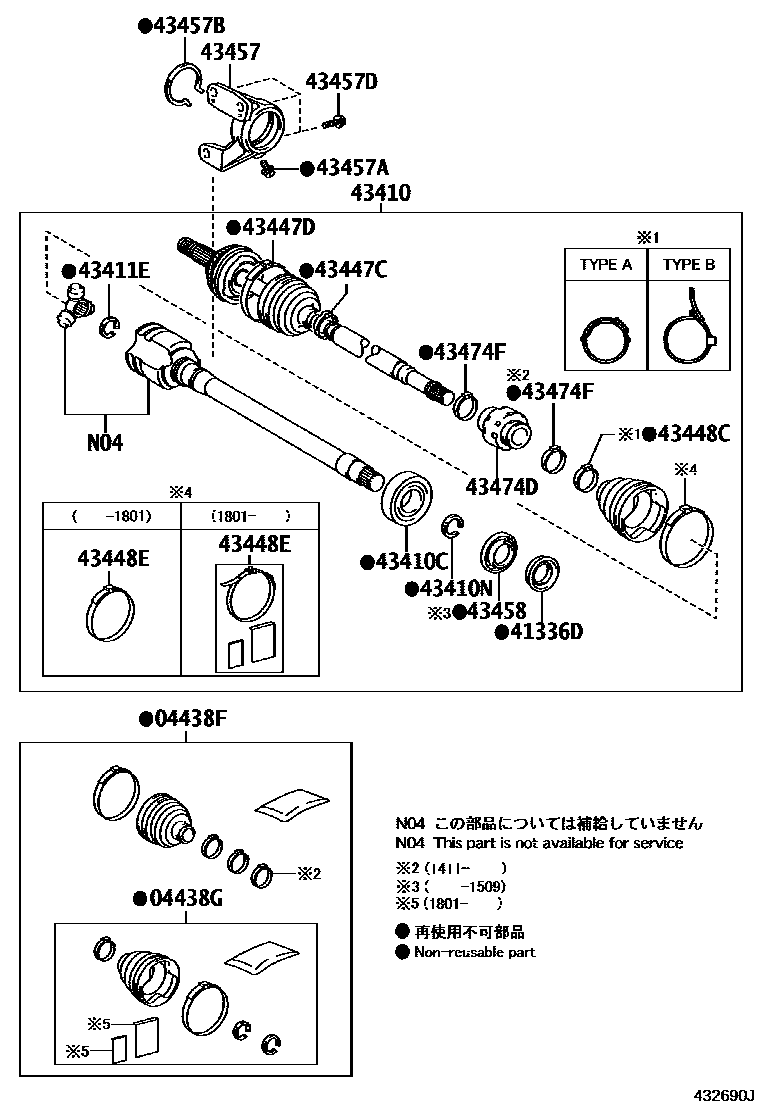

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06540iGSV60201308-201507

main04427-33100iAVV60201206-201411

main04427-33101iAVV60201411-201507

sub04427-33103

main04427-33102iAVV60201801

main04428-0W070iGSV60201206-201307

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08050iGSV60201308-201507

main04437-33070iAVV60201206-201507

main04437-44041iAVV60201801

main04438-08130iGSV60201206-201307

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iGSV60201507

main41336-12020iAVV60201206-201507

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06780iGSV60201206-201207

main43410-06A50iGSV60201208-201507

main43410-06B80iGSV60201712

main43410-33340iAVV60201507-201712

main43410-33341iAVV60201801

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iGSV60201507

main90363-41003iAVV60201206-201507

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iGSV60201206-201507

main90520-38015iAVV60201206-201507

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGSV60201206-201507

main43425-28010iAVV60201206-201507

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGSV60201206-201507

main42345-42120iAVV60201206-201507

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06250iGSV60201507

main42345-42110iAVV60201206-201507

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08070iGSV60201507

main42345-33120iAVV60201801

main42345-42010iAVV60201507-201801

TYPE A:REFER ILLUST.

main90949-01559iAVV60201507-201801

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGSV60201206-201507

main42345-12160iAVV60201507-201801

main42345-33140iAVV60201801

43457BRACKET, DRIVE SHAFT BEARING

main43457-33030iGSV60201507

main43457-33040iAVV60201507

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iAVV60,GSV60201206-201507

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iAVV60,GSV60201206-201507

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAVV60,GSV60201206-201507

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iGSV60201206-201507

main43458-12010iAVV60201206-201507

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06300iGSV60201208-201507

sub43474-06540

main43474-0W030iGSV60201206-201208

main43474-48080iAVV60201411-201507

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iGSV60201206-201208

main42345-06790×2iGSV60201507

main42345-12090×2iAVV60201801

main42345-14010×2iAVV60201507-201801

18 parts on this diagram · 4 diagrams in section
