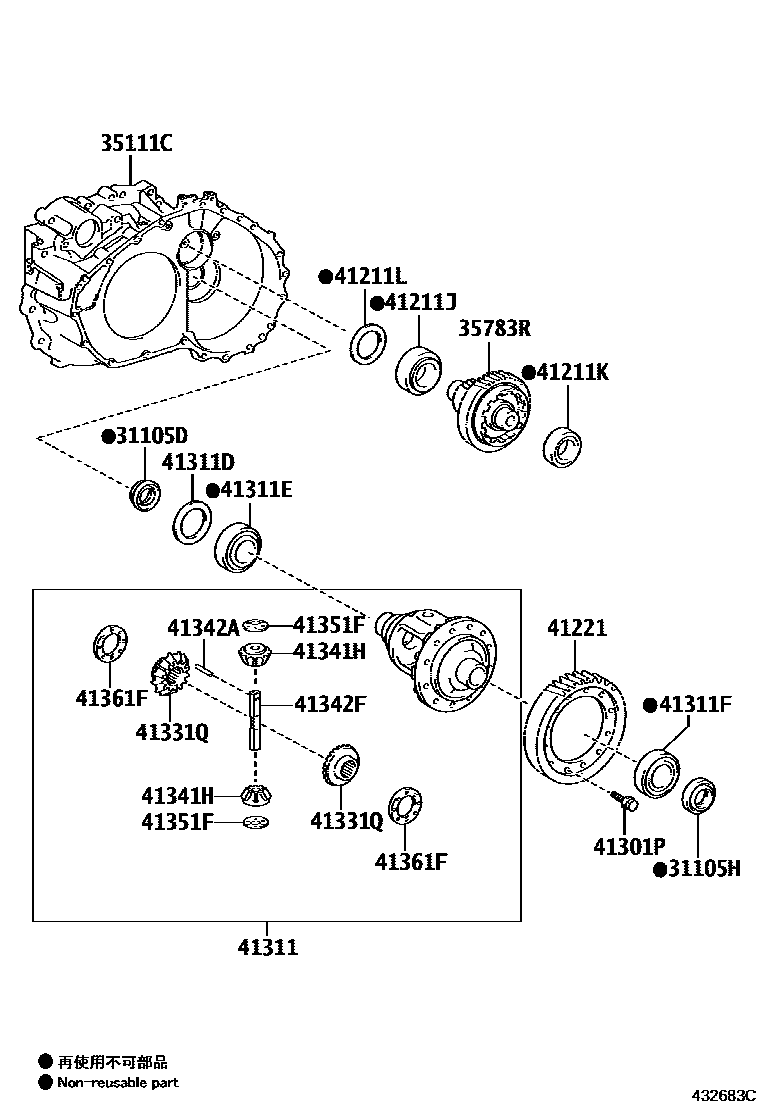

FRONT AXLE HOUSING & DIFFERENTIAL
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
sub90311-50064
35783RGEAR, COUNTER DRIVEN
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.900
T=2.925
T=2.950
T=2.975
T=3.000
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331QGEAR, DIFFERENTIAL SIDE
41341HPINION, DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
19 parts on this diagram · 2 diagrams in section
