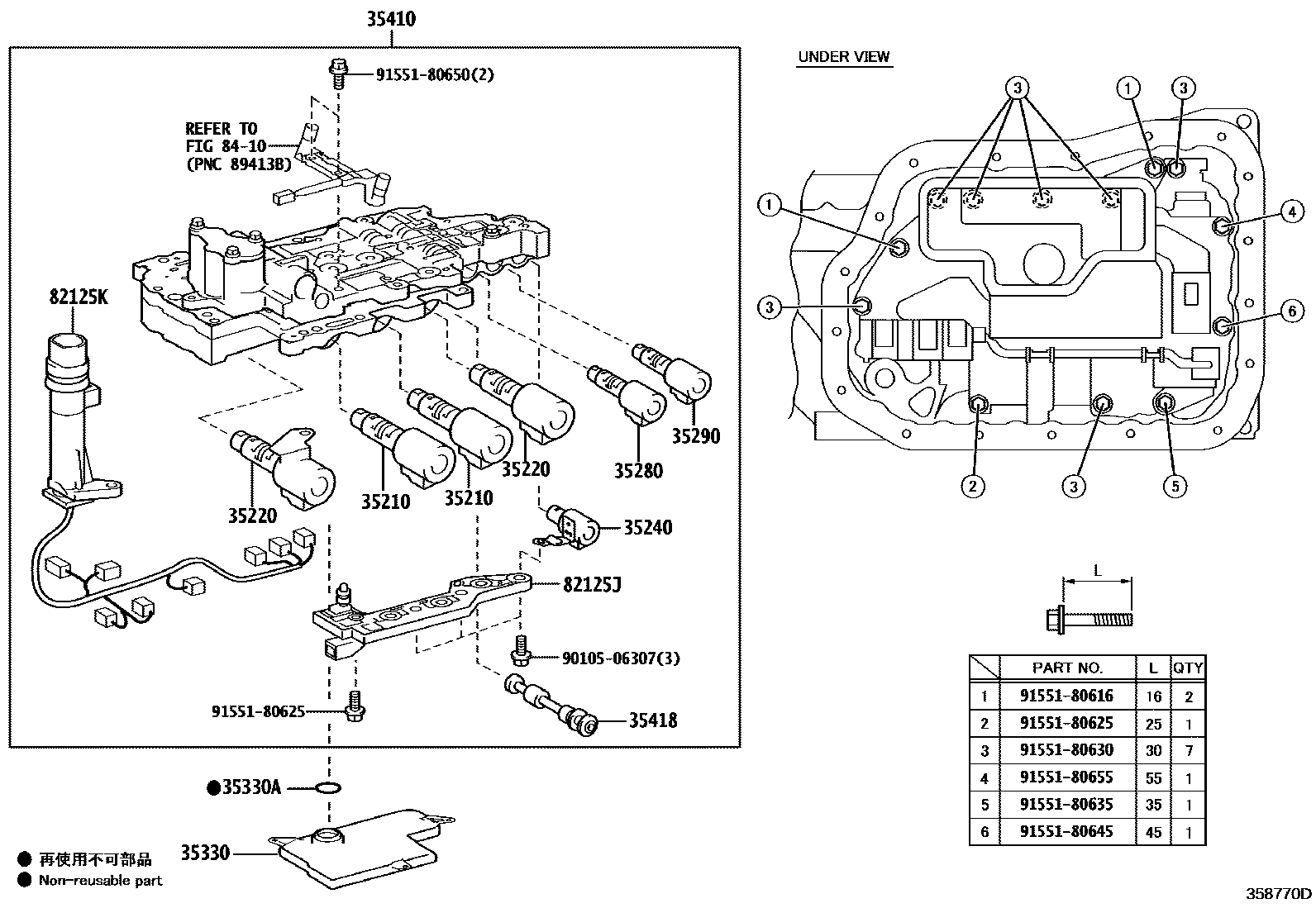

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E 0002 1U660E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030×2iGSV60201206-201507

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040×2iGSV60201206-201507

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iGSV60201206-201507

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52040iGSV60201206-201507

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iGSV60201206-201507

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iGSV60201206-201308

main35330-48020iGSV60201308-201507

35330ARING, O (FOR OIL STRAINER)

main90301-27015iGSV60201206-201507

35410BODY ASSY, TRANSMISSION VALVE

main35410-33240iGSV60201206-201507

35418VALVE, MANUAL

main35418-73010iGSV60201206-201507

82125JWIRE, TRANSMISSION

main82125-33150iGSV60201206-201507

82125KWIRE, TRANSMISSION

main82125-33160iGSV60201206-201507

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506307

main90105-06307

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

9155180635

main91551-80635

9155180645

main91551-80645

9155180650

main91551-80650

9155180655

main91551-80655

20 parts on this diagram · 2 diagrams in section
